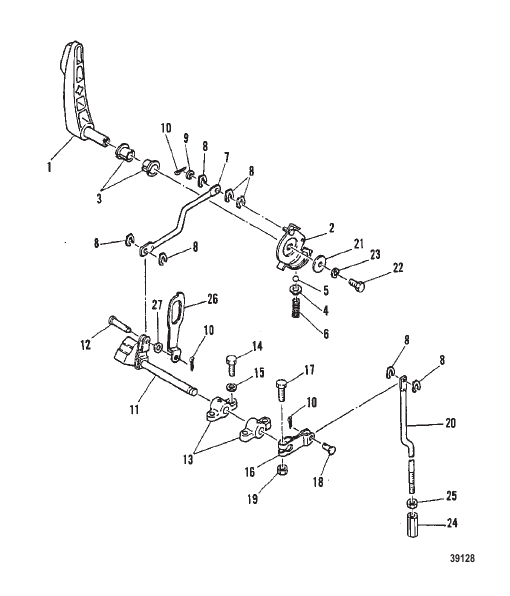

GEAR SHIFT LINKAGE
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 94506M |
РУКОЯТКА ПЕРЕКЛЮЧЕНИЕ РЕВЕРСА HANDLE GEAR SHIFT |
1 | discontinued |
| 10 | 82125M |
ШПЛИНТ COTTER PIN |
3 | discontinued |
| 11 | 97744M |
ВАЛ SHAFT |
1 | discontinued |
| 12 | 97116M |
ШТИФТ ВИЛКА (МОДЕЛИ M И ML) PIN CLEAVIS (M AND ML MODELS) |
1 | discontinued |
| 12 | 83540M |
ШТИФТ ВИЛКА (МОДЕЛИ E И EL) PIN CLEVIS (E AND EL MODELS) |
1 | discontinued |
| 13 | 83537M |
КРОНШТЕЙН BRACKET |
2 | discontinued |
| 14 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
4 | superseded |
| 15 | 82214M |
ШАЙБА WASHER |
4 | discontinued |
| 16 | 83538M |
РЫЧАГ ШТОК ПЕРЕКЛЮЧЕНИЯ РЕВЕРСА LEVER SHIFT ROD |
1 | discontinued |
| 17 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | superseded |
| 18 | 83540M |
ШТИФТ ВИЛКА PIN CLEVIS |
1 | discontinued |
| 19 | 97745M |
ГАЙКА NUT |
1 | discontinued |
| 2 | 94507M |
ПРИЖИМНАЯ ПЛАСТИНА РУКОЯТКА ПЛАСТИНЫ CAM PLATE PLATE HANDLE |
1 | discontinued |
| 20 | 83542M |
ШТОК ПЕРЕКЛЮЧЕНИЕ РЕВЕРСА ROD SHIFT |
1 | discontinued |
| 21 | 81794M |
ШАЙБА WASHER |
1 | discontinued |
| 22 | 91772M |
БОЛТ BOLT |
1 | discontinued |
| 23 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 24 | 80652M |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | |
| 25 | 81767M |
ГАЙКА NUT |
1 | discontinued |
| 26 | 97753M |
СТОП ОГРАНИЧИТЕЛЬ ГАЗА (ТОЛЬКО МОДЕЛИ M И ML) STOP THROTTLE LIMITER (M AND ML MODELS ONLY) |
1 | discontinued |
| 27 | 82193M |
ШАЙБА (ТОЛЬКО МОДЕЛИ M и ML) WASHER (M AND ML MODELS ONLY) |
1 | superseded |
| 3 | 81952M |
ВТУЛКА BUSHING |
2 | superseded |
| 4 | 83531M |
ВТУЛКА BUSHING |
1 | discontinued |
| 5 | 82348M |
ШАРИК СТАЛЬНОЙ BALL STEEL |
1 | discontinued |
| 6 | 82084M |
ПРУЖИНА СЖАТИЕ SPRING COMPRESSION |
1 | discontinued |
| 7 | 97743M |
ШТОК ROD |
1 | discontinued |
| 8 | 83533M |
ШАЙБА WASHER |
7 | discontinued |
| 9 | 82211M |
ШАЙБА WASHER |
1 | discontinued |
