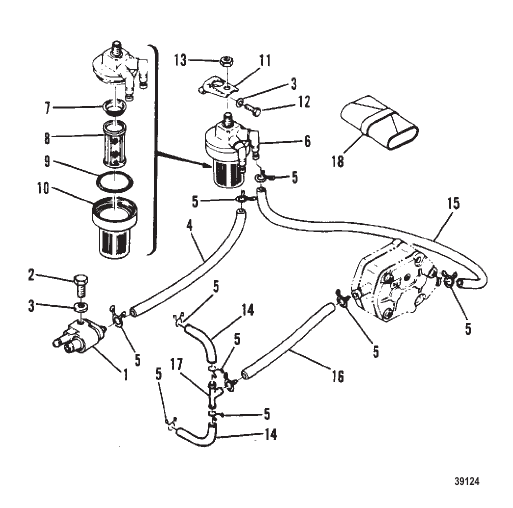

FUEL LINES AND FILTER
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 14187M |
СОЕДИНИТЕЛЬ [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up CONNECTOR [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up |
1 | |
| 1 | 95483M |
СОЕДИНИТЕЛЬ [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below CONNECTOR [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below |
1 | superseded |
| 10 | 11935M |
КОЛПАЧОК ФИЛЬТР [M-004991, ML-305579, E-103224, EL-413358] & Up CUP FILTER [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | discontinued |
| 10 | 82784M |
КАМЕРА Топливо ФИЛЬТР [M-004990, ML-305578, E-103223, EL-413357] & Below BOWL Fuel FILTER [M-004990, ML-305578, E-103223, EL-413357] & Below |
1 | superseded |
| 11 | 80620M |
КРОНШТЕЙН ФИЛЬТР BRACKET FILTER |
1 | discontinued |
| 12 | 84247M |
БОЛТ BOLT |
1 | superseded |
| 13 | 82382M |
ГАЙКА NUT |
1 | discontinued |
| 14 | 97737M |
РУКАВ HOSE |
2 | superseded |
| 15 | 84973M |
РУКАВ HOSE |
1 | discontinued |
| 16 | 97738M |
РУКАВ HOSE |
1 | superseded |
| 17 | 97083M |
ФИТИНГ-ТРОЙНИК TEE FITTING |
1 | discontinued |
| 18 | 81669M |
КОМПЛЕКТ ИНСТРУМЕНТОВ TOOL KIT |
1 | superseded |
| 2 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | superseded |
| 3 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 4 | 84972M |
РУКАВ HOSE |
1 | superseded |
| 5 | 82047M |
ЗАЖИМ CLAMP |
10 | discontinued |
| 6 | 11931M |
ФИЛЬТР В СБОРЕ FILTER ASSEMBLY |
1 | superseded |
| 7 | 82790M |
ПРОКЛАДКА [M-004990, ML-305578, E-103223, EL-413357] & Below GASKET [M-004990, ML-305578, E-103223, EL-413357] & Below |
1 | discontinued |
| 8 | 11934M |
ФИЛЬТР [M-004991, ML-305579, E-103224, EL-413358] & Up FILTER [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | superseded |
| 8 | 82783M |
ЭЛЕМЕНТ ФИЛЬТР [M-004990, ML-305578, E-103223, EL-413357] & Below ELEMENT FILTER [M-004990, ML-305578, E-103223, EL-413357] & Below |
1 | superseded |
| 9 | 84957M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 |
