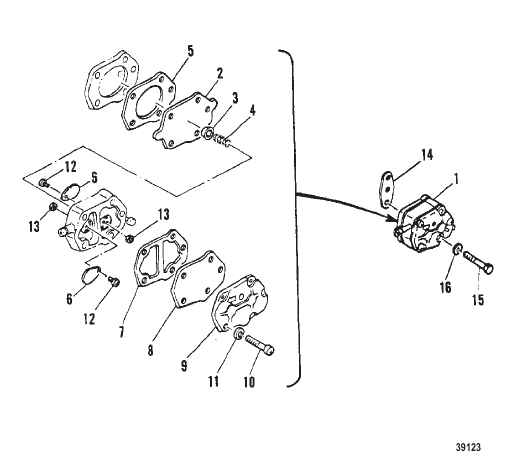

FUEL PUMP
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 43113M |
НАСОС В СБОРЕ Топливо PUMP ASSEMBLY Fuel |
1 | superseded |
| 10 | 82522M |
ВИНТ SCREW |
3 | discontinued |
| 11 | 82208M |
ШАЙБА ЗАМОК WASHER LOCK |
3 | superseded |
| 12 | 41889M |
ВИНТ (M3 x 5) [M-000781, ML-300751, E-100396, EL-401681] & Up SCREW (M3 x 5) [M-000781, ML-300751, E-100396, EL-401681] & Up |
2 | discontinued |
| 12 | 94801M |
ВИНТ [M-000780, ML-300750, E-100395, EL-401680] & Below SCREW [M-000780, ML-300750, E-100395, EL-401680] & Below |
2 | superseded |
| 13 | 82537M |
ГАЙКА NUT |
2 | discontinued |
| 14 | 80757M |
ПРОКЛАДКА ТОПЛИВНЫЙ НАСОС К КАРТЕРУ GASKET FUEL PUMP TO CRANKCASE |
1 | superseded |
| 15 | 82428M |
БОЛТ BOLT |
2 | superseded |
| 16 | 82199M |
ШАЙБА ЗАМОК WASHER LOCK |
2 | superseded |
| 2 | 80606M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 3 | 80611M |
ПЛАСТИНА ПРУЖИННАЯ НАПРАВЛЯЮЩАЯ PLATE SPRING GUIDE |
1 | discontinued |
| 4 | 80610M |
ПРУЖИНА SPRING |
1 | discontinued |
| 5 | 80613M |
ПРОКЛАДКА КОРПУС К ОСНОВАНИЮ GASKET BODY TO BASE |
1 | superseded |
| 6 | 41888M |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | |
| 7 | 43095M |
ПРОКЛАДКА КОРПУС К КРЫШКЕ [M-004991, ML-305579, E-103224, EL-413358] & Up GASKET BODY TO COVER [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | discontinued |
| 7 | 80614M |
ПРОКЛАДКА КОРПУС К КРЫШКЕ [M-004990, ML-305578, E-103223, EL-413357] & Below GASKET BODY TO COVER [M-004990, ML-305578, E-103223, EL-413357] & Below |
1 | superseded |
| 8 | 84141M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 9 | 43096M |
КРЫШКА [M-004991, ML-305579, E-103224, EL-413358] & Up COVER [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | superseded |
| 9 | 80607M |
КРЫШКА [M-004990, ML-305578, E-103223, EL-413357] & Below COVER [M-004990, ML-305578, E-103223, EL-413357] & Below |
1 | discontinued |
