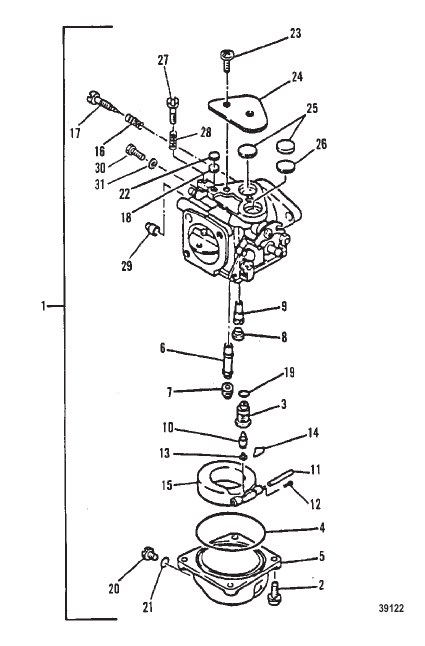

CARBURETOR
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 97667M |
РЕМОНТНЫЙ КОМПЛЕКТ КАРБЮРАТОР REPAIR KIT CARBURETOR |
1 | superseded |
| 1 | 8567M |
КАРБЮРАТОР В СБОРЕ (ВЕРХН.) CARBURETOR ASSEMBLY (UPPER) |
1 | discontinued |
| 1 | 8568M |
КАРБЮРАТОР В СБОРЕ (НИЖНЯЯ ЧАСТЬ) CARBURETOR ASSEMBLY (LOWER) |
1 | discontinued |
| 10 | 83364M |
КОМПЛЕКТ ИГЛ / СЕДЕЛ Впуск ПОПЛАВОК NEEDLE/SEAT KIT Inlet FLOAT |
2 | |
| 11 | 97730M |
ШТИФТ РЫЧАГ PIN ARM |
2 | discontinued |
| 12 | 97731M |
ВИНТ SCREW |
2 | superseded |
| 13 | 92639M |
ШТИФТ Поплавок КЛАПАН PIN Float VALVE |
2 | |
| 14 | 82781M |
ЗАЖИМ CLIP |
2 | superseded |
| 15 | 83363M |
ПОПЛАВОК FLOAT |
2 | superseded |
| 16 | 94499M |
ПРУЖИНА SPRING |
2 | discontinued |
| 17 | 83889M |
ВИНТ РЕГУЛИРОВКА SCREW ADJUST |
2 | discontinued |
| 18 | 97732M |
ПЛАСТИНА PLATE |
2 | discontinued |
| 19 | 97070M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 2 | 83373M |
ВИНТ С ШАЙБОЙ SCREW WITH WASHER |
8 | superseded |
| 20 | 81293M |
ВИНТ Слив SCREW Drain |
2 | discontinued |
| 21 | 94498M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 22 | 97733M |
УПАКОВКА PACKING |
2 | discontinued |
| 23 | 83371M |
ВИНТ SCREW |
4 | discontinued |
| 24 | 97734M |
ПЛАСТИНА PLATE |
2 | discontinued |
| 25 | 97735M |
ПРОКЛАДКА GASKET |
4 | discontinued |
| 26 | 97736M |
ПЛАСТИНА PLATE |
2 | discontinued |
| 27 | 81277M |
ВИНТ СТОПОРНЫЙ (НИЖНИЙ) SCREW STOP (LOWER) |
1 | discontinued |
| 28 | 82080M |
ПРУЖИНА (НИЖНЯЯ ЧАСТЬ) SPRING (LOWER) |
1 | discontinued |
| 29 | 83370M |
ВТУЛКА (НИЖНЯЯ ЧАСТЬ) COLLAR (LOWER) |
1 | discontinued |
| 3 | 94726M |
СЕДЛО КЛАПАНА VALVE SEAT |
2 | discontinued |
| 30 | 97082M |
ВИНТ И ШАЙБА (ВЕРХНЯЯ ЧАСТЬ) – ЛЕВОСТОРОННЯЯ РЕЗЬБА [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below SCREW AND WASHER (UPPER) - LEFT HAND THREAD [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below |
1 | discontinued |
| 31 | 83372M |
ШАЙБА ВЕРХНЯЯ ЧАСТЬ [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below WASHER UPPER [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below |
1 | discontinued |
| 4 | 83362M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 5 | 94495M |
КОРПУС ПОПЛАВКОВАЯ КАМЕРА BODY FLOAT CHAMBER |
2 | discontinued |
| 6 | 97727M |
ШТУЦЕР ГЛАВНЫЙ NOZZLE MAIN |
2 | discontinued |
| 7 | 42437M |
ВОДОМЕТНЫЙ ГЛАВН. (№170) JET MAIN (# 170) |
2 | discontinued |
| 8 | 83369M |
ПРОБКА CAP |
2 | superseded |
| 9 | 42438M |
ВОДОМЕТНЫЙ МЕДЛЕННЫЙ (№75) JET SLOW (# 75) |
2 | discontinued |
