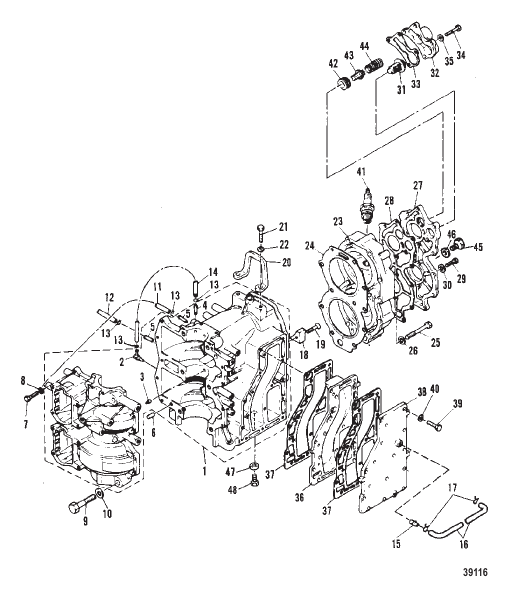

CRANKCASE AND CYLINDER HEAD
Parts (55)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 95415M |
СИЛОВАЯ ГОЛОВКА В СБОРЕ В СБОРЕ (СМ. ПРИМЕЧАНИЕ) [M-004991, ML-305579, E-103224, EL-413358] & Up POWERHEAD ASSEMBLY COMPLETE (SEE NOTE) [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | discontinued |
| - | 97709M |
СИЛОВАЯ ГОЛОВКА В СБОРЕ В СБОРЕ (СМ. ПРИМЕЧАНИЕ) [M-004990, ML-305578, E-103223, EL-413357] & Below POWERHEAD ASSEMBLY COMPLETE (SEE NOTE) [M-004990, ML-305578, E-103223, EL-413357] & Below |
1 | superseded |
| - | 97666M |
КОМПЛЕКТ ПРОКЛАДОК СИЛОВАЯ ГОЛОВКА GASKET SET POWERHEAD |
1 | discontinued |
| 1 | 8561M |
КАРТЕР В СБОРЕ CRANKCASE ASSEMBLY |
1 | discontinued |
| 10 | 81807M |
ШАЙБА [M-004990, ML-305578, E-103223, EL-413357] & Below WASHER [M-004990, ML-305578, E-103223, EL-413357] & Below |
6 | discontinued |
| 11 | 97699M |
РУКАВ [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below HOSE [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below |
1 | superseded |
| 12 | 97700M |
РУКАВ [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below HOSE [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below |
1 | superseded |
| 13 | 82046M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 14 | 83328M |
РУКАВ HOSE |
1 | discontinued |
| 15 | 80756M |
ФИТИНГ ВОДЯНОЙ FITTING WATER |
1 | superseded |
| 16 | 94479M |
РУКАВ HOSE |
1 | discontinued |
| 17 | 82047M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 18 | 83330M |
АНОД ANODE |
1 | discontinued |
| 19 | 82168M |
ВИНТ SCREW |
1 | discontinued |
| 2 | 80727M |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | discontinued |
| 20 | 83331M |
СКОБА ДВИГАТЕЛЬ (M И ML) EYE ENGINE (M AND ML) |
1 | superseded |
| 21 | 82438M |
БОЛТ BOLT |
2 | discontinued |
| 22 | 82215M |
СТОПОРНАЯ ШАЙБА [M-004990, ML-305578, E-103223, EL-413357] & Below LOCKWASHER [M-004990, ML-305578, E-103223, EL-413357] & Below |
2 | discontinued |
| 23 | 8562M |
ГОЛОВКА Цилиндр HEAD Cylinder |
1 | discontinued |
| 24 | 95414M |
ПРОКЛАДКА ГОЛОВКА ЦИЛИНДРА GASKET CYLINDER HEAD |
1 | superseded |
| 25 | 41884M |
БОЛТ (M8 x 55) С ШАЙБОЙ [M-004991, ML-305579, E-103224, EL-413358] & Up BOLT (M8 x 55) WITH WASHER [M-004991, ML-305579, E-103224, EL-413358] & Up |
11 | superseded |
| 25 | 82408M |
БОЛТ [M-004990, ML-305578, E-103223, EL-413357] & Below BOLT [M-004990, ML-305578, E-103223, EL-413357] & Below |
11 | discontinued |
| 26 | 80564M |
ШАЙБА [M-004990, ML-305578, E-103223, EL-413357] & Below WASHER [M-004990, ML-305578, E-103223, EL-413357] & Below |
11 | discontinued |
| 27 | 97703M |
КРЫШКА ГОЛОВКА ЦИЛИНДРА COVER CYLINDER HEAD |
1 | discontinued |
| 28 | 97704M |
ПРОКЛАДКА КРЫШКА ГОЛОВКИ GASKET HEAD COVER |
1 | discontinued |
| 29 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
11 | superseded |
| 3 | 81258M |
ШТИФТ ШТИФТ PIN DOWEL |
2 | discontinued |
| 30 | 82214M |
ШАЙБА ЗАМОК WASHER LOCK |
111 | discontinued |
| 31 | 81098M |
ТЕРМОСТАТ THERMOSTAT |
1 | superseded |
| 32 | 97705M |
КРЫШКА ТЕРМОСТАТ COVER THERMOSTAT |
1 | discontinued |
| 33 | 97706M |
ПРОКЛАДКА ТЕРМОСТАТ GASKET THERMOSTAT |
1 | superseded |
| 34 | 84237M |
БОЛТ BOLT |
4 | superseded |
| 35 | 82214M |
ШАЙБА ЗАМОК WASHER LOCK |
4 | discontinued |
| 36 | 97707M |
ВНУТРЕННЯЯ КРЫШКА ВЫХЛОП INNER COVER EXHAUST |
1 | discontinued |
| 37 | 83338M |
ПРОКЛАДКА КРЫШКА ВЫХЛОПНОГО ОТВЕРСТИЯ GASKET EXHAUST COVER |
2 | superseded |
| 38 | 97708M |
НАРУЖНАЯ КРЫШКА ВЫХЛОП OUTER COVER EXHAUST |
1 | discontinued |
| 39 | 82405M |
БОЛТ [M-004991, ML-305579, E-103224, EL-413358] & Up BOLT [M-004991, ML-305579, E-103224, EL-413358] & Up |
16 | discontinued |
| 39 | 82405M |
БОЛТ [M-004990, ML-305578, E-103223, EL-413357] & Below BOLT [M-004990, ML-305578, E-103223, EL-413357] & Below |
16 | discontinued |
| 4 | 80122M |
ФИТИНГ СЛИВ FITTING DRAIN |
1 | discontinued |
| 40 | 82214M |
ШАЙБА WASHER |
16 | discontinued |
| 41 | 82372M |
СВЕЧА ЗАЖИГАНИЯ (B-8HS) NGK SPARK PLUG (B-8HS) NGK |
2 | superseded |
| 42 | 82067M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 43 | 81267M |
КЛАПАН КОНТРОЛЬ ДАВЛЕНИЯ VALVE PRESSURE CONTROL |
1 | discontinued |
| 44 | 83340M |
ПРУЖИНА SPRING |
1 | discontinued |
| 45 | 81926M |
ПРОБКА PLUG |
1 | discontinued |
| 46 | 81990M |
ПРОКЛАДКА ПРОБКА GASKET PLUG |
1 | discontinued |
| 47 | 83394M |
АНОД ANODE |
1 | discontinued |
| 48 | 91725M |
БОЛТ BOLT |
1 | superseded |
| 5 | 83329M |
ФИТИНГ СЛИВ FITTING DRAIN |
2 | discontinued |
| 6 | 82368M |
ШТИФТ ШТИФТ PIN DOWEL |
2 | discontinued |
| 7 | 41837M |
БОЛТ С ШАЙБОЙ [M-004991, ML-305579, E-103224, EL-413358] & Up BOLT WITH WASHER [M-004991, ML-305579, E-103224, EL-413358] & Up |
9 | discontinued |
| 7 | 82405M |
БОЛТ [M-004990, ML-305578, E-103223, EL-413357] & Below BOLT [M-004990, ML-305578, E-103223, EL-413357] & Below |
9 | discontinued |
| 8 | 81792M |
ШАЙБА [M-004990, ML-305578, E-103223, EL-413357] & Below WASHER [M-004990, ML-305578, E-103223, EL-413357] & Below |
9 | discontinued |
| 9 | 95413M |
БОЛТ С ШАЙБОЙ [M-004991, ML-305579, E-103224, EL-413358] & Up BOLT WITH WASHER [M-004991, ML-305579, E-103224, EL-413358] & Up |
6 | discontinued |
| 9 | 83327M |
БОЛТ [M-004990, ML-305578, E-103223, EL-413357] & Below BOLT [M-004990, ML-305578, E-103223, EL-413357] & Below |
6 | discontinued |
