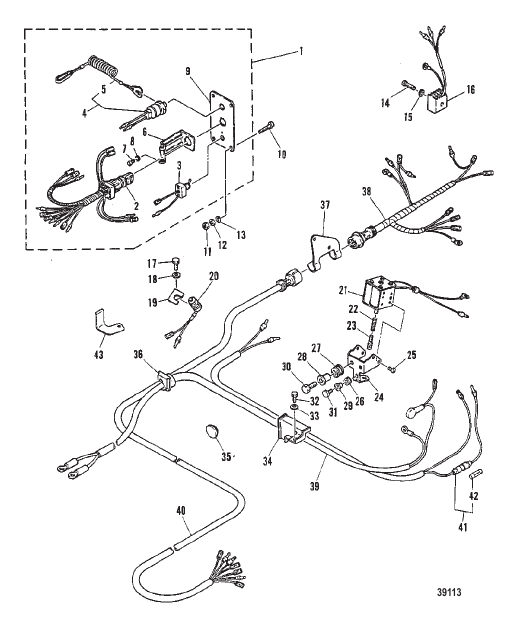

ELECTRIC START COMPONENTS
Parts (50)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 95644M |
ПАНЕЛЬ В СБОРЕ Переключатель PANEL ASSEMBLY Switch |
1 | superseded |
| 10 | 84946M |
ВИНТ [M-004991, ML-305579, E-103224, EL-413358] & Up SCREW [M-004991, ML-305579, E-103224, EL-413358] & Up |
4 | discontinued |
| 10 | 80164M |
ВИНТ [M-004990, ML-305578, E-103223, EL-413357] & Below SCREW [M-004990, ML-305578, E-103223, EL-413357] & Below |
4 | discontinued |
| 11 | 82377M |
ГАЙКА NUT |
4 | discontinued |
| 12 | 82184M |
СТОПОРНАЯ ШАЙБА [M-004991, ML-305579, E-103224, EL-413358] & Up LOCKWASHER [M-004991, ML-305579, E-103224, EL-413358] & Up |
4 | superseded |
| 12 | 82208M |
ШАЙБА ЗАМОК [M-004990, ML-305578, E-103223, EL-413357] & Below WASHER LOCK [M-004990, ML-305578, E-103223, EL-413357] & Below |
4 | superseded |
| 13 | 82847M |
ШАЙБА WASHER |
4 | discontinued |
| 14 | 83108M |
ВИНТ [M-004991, ML-305579, E-103224, EL-413358] & Up SCREW [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | discontinued |
| 14 | 82521M |
ВИНТ [M-004990, ML-305578, E-103223, EL-413357] & Below SCREW [M-004990, ML-305578, E-103223, EL-413357] & Below |
1 | superseded |
| 15 | 82211M |
ШАЙБА WASHER |
1 | discontinued |
| 16 | 81652M |
ВЫПРЯМИТЕЛЬ RECTIFIER |
1 | superseded |
| 17 | 84247M |
БОЛТ BOLT |
1 | superseded |
| 18 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 19 | 97683M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 2 | 95645M |
ЗАМОК ЗАЖИГАНИЯ [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up KEY SWITCH [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up |
1 | discontinued |
| 2 | 95410M |
ГЛАВНЫЙ ПЕРЕКЛЮЧАТЕЛЬ [M-004991, ML-305579, E-103224, EL-413358] THRU [M-006405, MLS-307518, E-104173, EL-418727] MAIN SWITCH [M-004991, ML-305579, E-103224, EL-413358] THRU [M-006405, MLS-307518, E-104173, EL-418727] |
1 | superseded |
| 2 | 84943M |
ЗАМОК ЗАЖИГАНИЯ [M-004990, ML-305578, E-103223, EL-413357] & Below KEY SWITCH [M-004990, ML-305578, E-103223, EL-413357] & Below |
1 | superseded |
| 20 | 97684M |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Запуск двигателя на нейтрали SWITCH ASSEMBLY Neutral Start |
1 | discontinued |
| 21 | 97685M |
ЭЛЕКТРОМАГНИТНЫЙ КЛАПАН В СБОРЕ SOLENOID ASSEMBLY |
1 | superseded |
| 22 | 84701M |
ПРОВОД НАТЯЖЕНИЕ WIRE PULL |
1 | discontinued |
| 23 | 84702M |
КРЮК ВЫТЯЖНАЯ ПРОВОЛОКА HOOK PULL WIRE |
1 | discontinued |
| 24 | 97686M |
КРОНШТЕЙН ЭЛЕКТРОМАГНИТ BRACKET SOLENOID |
1 | discontinued |
| 25 | 84312M |
ВИНТ SCREW |
4 | superseded |
| 26 | 97687M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 27 | 93114M |
ДЕМПФЕР DAMPER |
2 | superseded |
| 28 | 82851M |
ВТУЛКА BUSHING |
2 | superseded |
| 29 | 97688M |
ВТУЛКА COLLAR |
1 | discontinued |
| 3 | 84944M |
ПЕРЕКЛЮЧАТЕЛЬ Обогатитель SWITCH Choke |
1 | discontinued |
| 30 | 82405M |
БОЛТ BOLT |
2 | discontinued |
| 31 | 91686M |
БОЛТ BOLT |
1 | discontinued |
| 32 | 84303M |
БОЛТ BOLT |
1 | superseded |
| 33 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 34 | 97066M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 35 | 82066M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 36 | 94476M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 37 | 95411M |
КРОНШТЕЙН ЖГУТ ПРОВОДОВ [M-004991, ML-305579, E-103224, EL-413358] & Up BRACKET HARNESS [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | discontinued |
| 37 | 94477M |
КРОНШТЕЙН ЖГУТ ПРОВОДОВ [M-004990, ML-305578, E-103223, EL-413357] & Below BRACKET HARNESS [M-004990, ML-305578, E-103223, EL-413357] & Below |
1 | superseded |
| 38 | 95412M |
ЖГУТ ПРОВОДОВ В СБОРЕ [M-004991, ML-305579, E-103224, EL-413358] & Up HARNESS ASSEMBLY [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | discontinued |
| 38 | 97690M |
ЖГУТ ПРОВОДОВ В СБОРЕ [M-004990, ML-305578, E-103223, EL-413357] & Below HARNESS ASSEMBLY [M-004990, ML-305578, E-103223, EL-413357] & Below |
1 | superseded |
| 39 | 97691M |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | discontinued |
| 4 | 97682M |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп SWITCH ASSEMBLY Stop |
1 | discontinued |
| 40 | 84711M |
УДЛИНИТЕЛЬ EXTENSION |
1 | discontinued |
| 41 | 97692M |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | discontinued |
| 42 | 81522M |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ (12В – 20А) FUSE (12V-20 A) |
1 | discontinued |
| 43 | 42436M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 5 | 97756M |
СТОПОР STOPPER |
1 | |
| 6 | 81537M |
КРОНШТЕЙН ФИКСАТОР ШНУРА BRACKET CORD CLAMP |
1 | discontinued |
| 7 | 82487M |
ВИНТ SCREW |
1 | superseded |
| 8 | 82184M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | superseded |
| 9 | 42435M |
ПАНЕЛЬ PANEL |
1 | discontinued |
