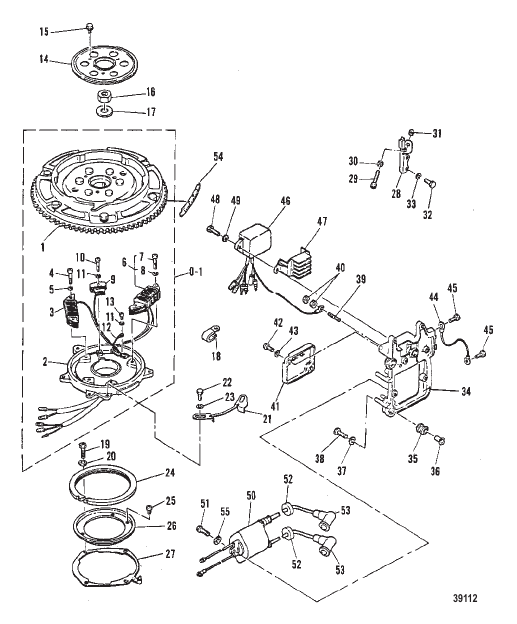

C.D.I. MAGNETO IGNITION
Parts (59)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 0-1 | 7985M |
CDI MAGNETO В СБОРЕ (E И EL) CDI MAGNETO ASSEMBLY (E AND EL) |
1 | discontinued |
| 0-1 | 7986M |
МАХОВИК MAGNETO В СБОРЕ (M и ML) FLYWHEEL MAGNETO ASSEMBLY (M AND ML) |
1 | superseded |
| 1 | 7987M |
МАХОВИК В СБОРЕ (E И EL) FLYWHEEL ASSEMBLY (E AND EL) |
1 | discontinued |
| 1 | 7988M |
МАХОВИК В СБОРЕ (M и ML) FLYWHEEL ASSEMBLY (M AND ML) |
1 | discontinued |
| 10 | 84882M |
ВИНТ SCREW |
2 | discontinued |
| 11 | 82184M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
3 | superseded |
| 12 | 84883M |
ПРОВОД WIRE |
1 | discontinued |
| 13 | 82499M |
ВИНТ SCREW |
1 | discontinued |
| 14 | 93109M |
КРЫШКА COVER |
1 | discontinued |
| 15 | 93110M |
БОЛТ BOLT |
3 | discontinued |
| 16 | 81773M |
ГАЙКА NUT |
1 | superseded |
| 17 | 84436M |
ШАЙБА WASHER |
1 | superseded |
| 18 | 82042M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 19 | 84655M |
ВИНТ SCREW |
4 | superseded |
| 2 | 93108M |
БАЗА В СБОРЕ МАГНЕТО BASE ASSEMBLY MAGNETO |
1 | discontinued |
| 20 | 82193M |
ШАЙБА WASHER |
4 | superseded |
| 21 | 97679M |
СТОП ОСНОВАНИЕ МАГНЕТО STOP MAGNETO BASE |
1 | discontinued |
| 22 | 84315M |
БОЛТ BOLT |
2 | superseded |
| 23 | 82212M |
СТОПОРНАЯ ШАЙБА [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up LOCKWASHER [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up |
2 | discontinued |
| 23 | 82212M |
СТОПОРНАЯ ШАЙБА [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below LOCKWASHER [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below |
2 | discontinued |
| 24 | 83566M |
ФИКСАТОР ОСНОВАНИЕ МАГНЕТО RETAINER MAGNETO BASE |
1 | discontinued |
| 25 | 42761M |
ВИНТ SCREW |
4 | superseded |
| 26 | 83567M |
ФИКСАТОР ОСНОВАНИЕ МАГНЕТО RETAINER MAGNETO BASE |
1 | superseded |
| 27 | 83569M |
ПЛАСТИНА ТРЕНИЕ ОСНОВАНИЯ PLATE BASE FRICTION |
1 | discontinued |
| 28 | 83579M |
СТОП ОСНОВАНИЕ МАГНЕТО STOP MAGNETO BASE |
1 | discontinued |
| 29 | 83924M |
ВИНТ SCREW |
1 | discontinued |
| 3 | 84879M |
КАТУШКА ЗАЖИГАНИЕ COIL IGNITION |
1 | superseded |
| 30 | 82381M |
ГАЙКА NUT |
1 | superseded |
| 31 | 81415M |
ПРОБКА CAP |
1 | discontinued |
| 32 | 84247M |
БОЛТ BOLT |
2 | superseded |
| 33 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 34 | 93113M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 35 | 93114M |
ДЕМПФЕР DAMPER |
3 | superseded |
| 36 | 82851M |
ВТУЛКА BUSHING |
3 | superseded |
| 37 | 82979M |
ШАЙБА WASHER |
3 | superseded |
| 38 | 82405M |
БОЛТ BOLT |
3 | discontinued |
| 39 | 84870M |
ШПИЛЬКА STUD |
1 | discontinued |
| 4 | 84880M |
ВИНТ SCREW |
2 | superseded |
| 40 | 82380M |
ГАЙКА NUT |
2 | superseded |
| 41 | 93115M |
КРЫШКА COVER |
1 | discontinued |
| 42 | 83356M |
ВИНТ SCREW |
2 | discontinued |
| 43 | 82211M |
ШАЙБА WASHER |
2 | discontinued |
| 44 | 81250M |
ПРОВОД ЗАЗЕМЛЕНИЕ WIRE GROUND |
1 | discontinued |
| 45 | 84303M |
БОЛТ BOLT |
2 | superseded |
| 46 | 84872M |
БЛОК CDI В СБОРЕ CDI UNIT ASSEMBLY |
1 | superseded |
| 47 | 93116M |
ДЕРЖАТЕЛЬ HOLDER |
1 | discontinued |
| 48 | 82405M |
БОЛТ BOLT |
2 | discontinued |
| 49 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 5 | 82186M |
ШАЙБА WASHER |
2 | discontinued |
| 50 | 84874M |
КАТУШКА Зажигание COIL Ignition |
1 | superseded |
| 51 | 82405M |
БОЛТ BOLT |
2 | discontinued |
| 52 | 82069M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | discontinued |
| 53 | 80935M |
ЗАЩИТНОЕ ПРИСПОСОБЛЕНИЕ ШУМОПОГЛОТИТЕЛЬ PROTECTER NOISE SUPPRESSOR |
2 | superseded |
| 54 | 84888M |
НАКЛЕЙКА РАСПРЕДЕЛЕНИЕ [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below DECAL TIMING [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below |
1 | discontinued |
| 55 | 82214M |
ШАЙБА [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up WASHER [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up |
2 | discontinued |
| 6 | 93049M |
КАТУШКА В СБОРЕ ЗАРЯДКА COIL ASSEMBLY LIGHTING |
1 | discontinued |
| 7 | 84880M |
ВИНТ SCREW |
2 | superseded |
| 8 | 82186M |
ШАЙБА WASHER |
2 | discontinued |
| 9 | 84877M |
ИМПУЛЬСНЫЙ ГЕНЕРАТОР PULSER |
1 | discontinued |
