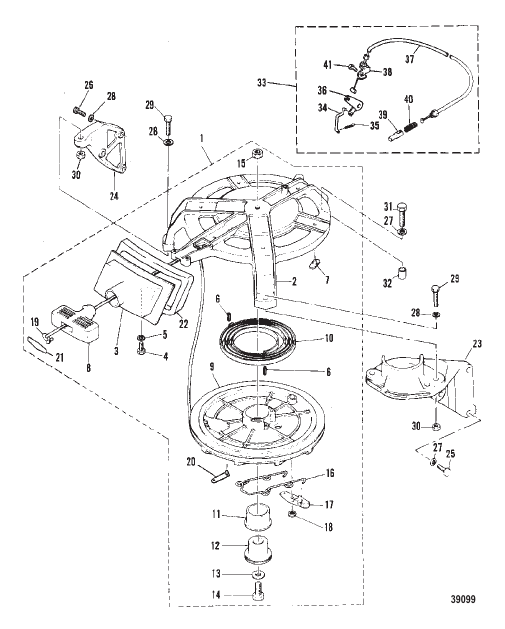

RECOIL STARTER
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 7101M |
СТАРТЕР В СБОРЕ Обратный ход (M и ML) STARTER ASSEMBLY Recoil (M AND ML) |
1 | discontinued |
| 10 | 83588M |
ПРУЖИНА СТАРТЕР SPRING STARTER |
1 | |
| 11 | 83589M |
ВТУЛКА BUSHING |
1 | discontinued |
| 12 | 83590M |
ВАЛ SHAFT |
1 | discontinued |
| 13 | 81801M |
ШАЙБА WASHER |
1 | discontinued |
| 14 | 84342M |
БОЛТ BOLT |
1 | discontinued |
| 15 | 82382M |
ГАЙКА NUT |
1 | discontinued |
| 16 | 83591M |
ПРУЖИНА СТОПОР ПРИВОДА SPRING DRIVE PAWL |
1 | discontinued |
| 17 | 84894M |
СТОПОР ПРИВОД PAWL DRIVE |
1 | |
| 18 | 84895M |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 19 | 79629A1 |
ТРОС Стартер ROPE Starter |
1 | superseded |
| 2 | 7102M |
КОРПУС HOUSING |
1 | superseded |
| 20 | 84893M |
ЗАЖИМ CLIP |
1 | discontinued |
| 21 | 41882M |
КРЫШКА COVER |
1 | discontinued |
| 22 | 93107M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 23 | 97678M |
КРОНШТЕЙН (ЛЕВЫЙ БОРТ) BRACKET (PORT) |
1 | discontinued |
| 24 | 83593M |
КРОНШТЕЙН (ПРАВЫЙ БОРТ) BRACKET (STARBOARD) |
1 | discontinued |
| 25 | 82441M |
БОЛТ BOLT |
3 | discontinued |
| 26 | 82405M |
БОЛТ BOLT |
3 | discontinued |
| 27 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 28 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
5 | discontinued |
| 29 | 84237M |
БОЛТ (M и ML) BOLT (M AND ML) |
2 | superseded |
| 3 | 83583M |
НАПРАВЛЯЮЩАЯ ТРОС СТАРТЕРА GUIDE STARTER ROPE |
1 | discontinued |
| 30 | 82380M |
ГАЙКА (M и ML) NUT (M AND ML) |
2 | superseded |
| 31 | 84236M |
БОЛТ BOLT |
1 | discontinued |
| 32 | 82162M |
ШТИФТ PIN |
1 | superseded |
| 33 | 93105M |
БЛОКИРОВКА В СБОРЕ Безопасность [M-004991, ML-305579, E-103224, EL-413358] & Up LOCKOUT ASSEMBLY Safety [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | discontinued |
| 34 | 83595M |
ШТОК ROD |
1 | discontinued |
| 35 | 82125M |
ШПЛИНТ COTTER PIN |
1 | discontinued |
| 36 | 83596M |
РЫЧАГ LEVER |
1 | discontinued |
| 37 | 83597M |
КАБЕЛЬ УПОР СТАРТЕРА CABLE STARTER STOP |
1 | discontinued |
| 38 | 93106M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 39 | 81106M |
ПЛУНЖЕР УПОР СТАРТЕРА PLUNGER STARTER STOP |
1 | discontinued |
| 4 | 84247M |
БОЛТ BOLT |
2 | superseded |
| 40 | 82079M |
ПРУЖИНА SPRING |
1 | discontinued |
| 41 | 84303M |
БОЛТ BOLT |
1 | superseded |
| 5 | 82212M |
СТОПОРНАЯ ШАЙБА [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up LOCKWASHER [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up |
2 | discontinued |
| 5 | 82214M |
ШАЙБА [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below WASHER [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below |
2 | discontinued |
| 6 | 82157M |
ШТИФТ РОЛИК PIN ROLL |
2 | discontinued |
| 7 | 83585M |
ПРОБКА PLUG |
6 | discontinued |
| 8 | 80063M |
РУКОЯТКА СТАРТЕР HANDLE STARTER |
1 | superseded |
| 9 | 83587M |
РОЛИК Стартер SHEAVE Starter |
1 | discontinued |
