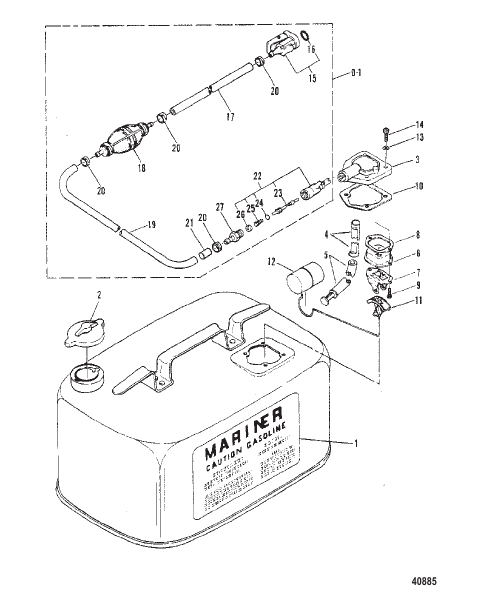

| # | Part Number | Description | Qty | Status |
|---|
| 0-1 |
83628M |
LINE ASSEMBLY Fuel
|
1 |
superseded
|
| 1 |
82984M |
DECAL SIDE
|
2 |
discontinued
|
| 10 |
81320M |
GASKET HOUSING TO TANK
|
1 |
discontinued
|
| 11 |
81318M |
INDICATOR FUEL LEVEL
|
1 |
discontinued
|
| 12 |
81319M |
FLOAT INDICATOR
|
1 |
discontinued
|
| 13 |
80271M |
WASHER HOUSING SCREW
|
4 |
superseded
|
| 14 |
82496M |
SCREW HOUSING ATTACHING
|
4 |
discontinued
|
| 15 |
81042M |
HOUSING ASSEMBLY ENGINE END
|
1 |
superseded
|
| 16 |
82789M |
O-RING
|
1 |
discontinued
|
| 17 |
84955M |
HOSE CONNECTOR HOUSING TO BULB
|
1 |
superseded
|
| 18 |
81325M |
PRIMER BULB
|
1 |
superseded
|
| 19 |
82023M |
HOSE BULB TO CONNECTOR
|
1 |
superseded
|
| 2 |
83617M |
CAP Fuel Tank
|
1 |
superseded
|
| 20 |
80752M |
CLAMP HOSE
|
4 |
superseded
|
| 21 |
81327M |
COLLAR
|
1 |
discontinued
|
| 22 |
30185A1 |
BAYONET BODY ASSEMBLY
|
1 |
superseded
|
| 23 |
30187 |
STEM BAYONET BODY
|
1 |
discontinued
|
| 24 |
20415 |
O-RING BAYONET BODY STEM
|
1 |
superseded
|
| 25 |
30189 |
SPRING BAYONET BODY STEM
|
1 |
|
| 26 |
30188 |
WASHER CAP
|
1 |
|
| 27 |
63187 |
FITTING Barb (.250-18) FUEL LINE
|
1 |
|
| 3 |
83618M |
METER ASSEMBLY Fuel
|
1 |
discontinued
|
| 4 |
83764M |
CLAMP PICKUP HOSE
|
1 |
discontinued
|
| 5 |
83626M |
HOSE PICKUP
|
1 |
superseded
|
| 6 |
80269M |
LENS INDICATOR
|
1 |
discontinued
|
| 7 |
80268M |
BRACKET INDICATOR
|
1 |
discontinued
|
| 8 |
80270M |
GASKET HOUSING TO LENS INDICATOR
|
1 |
superseded
|
| 9 |
82518M |
SCREW
|
2 |
superseded
|
