| # | Part Number | Description | Qty | Status |
|---|
| - |
41899M |
GASKET SET Lower Unit [M-014871/ML-312186/E-252291/EL-553576] & Up
|
1 |
discontinued
|
| - |
84828M |
GASKET SET Lower Unit [M-014870/ML-312185/E-252290/EL-553575] & Below
|
1 |
superseded
|
| - |
42431M |
REPAIR KIT WATER PUMP [M-014871/ML-312186/E-252291/EL-553576] & Up
|
1 |
|
| - |
97793M |
REPAIR KIT WATER PUMP [M-014870/ML-312185/E-252290/EL-553575] & Below
|
1 |
superseded
|
| 0-1 |
8924M |

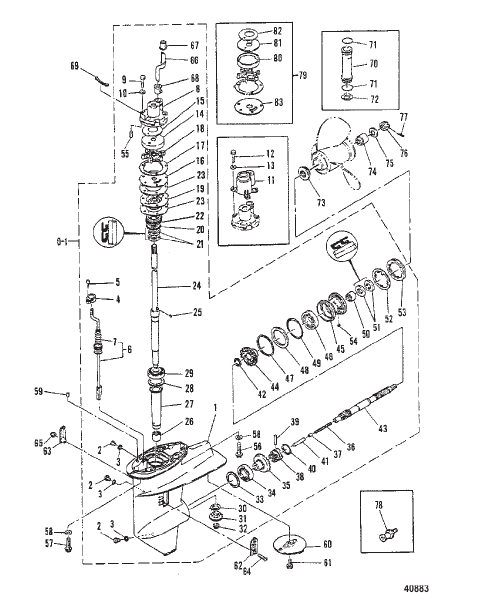

GEAR HOUSING ASSEMBLY (SHORT SHAFT) [M-009376/ML-308481/E-251701/EL-552631] & Up
|
1 |
superseded
|
| 0-1 |
7844M |
GEAR HOUSING ASSEMBLY (SHORT SHAFT) [M-009375/ML-308480/E-251700/EL-552630] & Below
|
1 |
superseded
|
| 0-1 |
8925M |
GEAR HOUSING ASSEMBLY (LONG AND ULTRA LONG SHAFT) [M-009376/ML-308481/E-251701/EL-552631] & Up
|
1 |
superseded
|
| 0-1 |
7845M |
GEAR HOUSING ASSEMBLY (LONG AND ULTRA LONG SHAFT) [M-009375/ML-308480/E-251700/EL-552630] & Below
|
1 |
superseded
|
| 1 |
8807M |
GEAR HOUSING ASSEMBLY BASIC [M-009376/ML-308481/E-251701/EL-552631] & Up
|
1 |
discontinued
|
| 1 |
7846M |
GEAR HOUSING ASSEMBLY BASIC [M-009375/ML-308480/E-251700/EL-552630] & Below
|
1 |
discontinued
|
| 10 |
84791M |
WASHER (SHORT SHAFT)
|
3 |
discontinued
|
| 11 |
84792M |
COVER WATER PUMP (LONG SHAFT)
|
1 |
discontinued
|
| 12 |
96293M |
BOLT (LONG SHAFT)
|
3 |
superseded
|
| 13 |
82214M |
WASHER (LONG SHAFT)
|
3 |
discontinued
|
| 14 |
97789M |
INSERT WATER PUMP
|
1 |
discontinued
|
| 15 |
94807M |
SEAL
|
1 |
superseded
|
| 16 |
41894M |
BASE PLATE [M-014871/ML-312186/E-252291/EL-553576] & Up
|
1 |
discontinued
|
| 16 |
84795M |
PLATE Base [M-014870/ML-312185/E-252290/EL-553575] & Below
|
1 |
superseded
|
| 17 |
41273M |
GASKET HOUSING [M-014871/ML-312186/E-252291/EL-553576] & Up
|
1 |
superseded
|
| 17 |
84796M |
GASKET HOUSING [M-014870/ML-312185/E-252290/EL-553575] & Below
|
1 |
superseded
|
| 18 |
84797M |
IMPELLER
|
1 |
|
| 19 |
41895M |
PROTECTOR OIL SEAL [M-014871/ML-312186/E-252291/EL-553576] & Up
|
1 |
superseded
|
| 19 |
84798M |
PROTECTOR OIL SEAL [M-014870/ML-312185/E-252290/EL-553575] & Below
|
1 |
discontinued
|
| 2 |
81924M |
PLUG
|
3 |
discontinued
|
| 20 |
84054M |
O-RING
|
1 |
|
| 21 |
82233M |
SEAL Oil
|
1 |
superseded
|
| 22 |
41271M |
COVER OIL SEAL [M-014871/ML-312186/E-252291/EL-553576] & Up
|
2 |
|
| 23 |
41272M |
GASKET PROTECTOR [M-014871/ML-312186/E-252291/EL-553576] & Up
|
2 |
superseded
|
| 23 |
84799M |
GASKET PROTECTOR [M-014870/ML-312185/E-252290/EL-553575] & Below
|
2 |
superseded
|
| 24 |
84800M |
DRIVESHAFT (SHORT SHAFT)
|
1 |
discontinued
|
| 24 |
84801M |
DRIVESHAFT (LONG SHAFT)
|
1 |
discontinued
|
| 24 |
84802M |
DRIVESHAFT (ULTRA LONG SHAFT)
|
1 |
discontinued
|
| 25 |
81603M |
KEY IMPELLER DRIVE
|
1 |
discontinued
|
| 26 |
84803M |
BEARING ROLLER (LOWER)
|
1 |
discontinued
|
| 27 |
84804M |
SLEEVE DRIVESHAFT
|
1 |
discontinued
|
| 28 |
81638M |
SHIM DRIVESHAFT (.05MM)
|
AR |
discontinued
|
| 28 |
81639M |
SHIM DRIVESHAFT (.08MM)
|
AR |
discontinued
|
| 28 |
81640M |
SHIM DRIVESHAFT (.12MM)
|
AR |
superseded
|
| 28 |
81641M |
SHIM DRIVESHAFT (.30MM)
|
AR |
superseded
|
| 28 |
81642M |
SHIM DRIVESHAFT (.50MM)
|
AR |
superseded
|
| 29 |
84805M |
BEARING TAPERED ROLLER (UPPER)
|
1 |
superseded
|
| 3 |
81987M |
GASKET PLUG
|
3 |
superseded
|
| 30 |
81624M |
THRUST WASHER
|
1 |
discontinued
|
| 31 |
84806M |
GEAR Pinion
|
1 |
superseded
|
| 32 |
84807M |
NUT
|
1 |
discontinued
|
| 33 |
81626M |
SHIM FORWARD GEAR (.05MM)
|
AR |
discontinued
|
| 33 |
81627M |
SHIM FORWARD GEAR (.08MM)
|
AR |
discontinued
|
| 33 |
81628M |
SHIM FORWARD GEAR (.12MM)
|
AR |
superseded
|
| 33 |
81629M |
SHIM FORWARD GEAR (.30MM)
|
AR |
superseded
|
| 33 |
81630M |
SHIM FORWARD GEAR (.50MM)
|
AR |
superseded
|
| 34 |
82321M |
BEARING TAPERED ROLLER (FORWARD)
|
1 |
superseded
|
| 35 |
84808M |
GEAR FORWARD
|
1 |
superseded
|
| 36 |
82078M |
SPRING COMPRESSION
|
1 |
discontinued
|
| 37 |
80679M |
SLIDE SPRING
|
1 |
discontinued
|
| 38 |
81644M |
CLUTCH
|
1 |
superseded
|
| 39 |
81899M |
PIN Cross
|
1 |
discontinued
|
| 4 |
84787M |
RETAINER SHIFT SHAFT
|
1 |
discontinued
|
| 40 |
80678M |
RING CROSS PIN
|
1 |
discontinued
|
| 41 |
80680M |
PLUNGER SHIFT
|
1 |
discontinued
|
| 42 |
81831M |
WASHER THRUST
|
1 |
discontinued
|
| 43 |
84809M |
PROPELLER SHAFT
|
1 |
superseded
|
| 44 |
84810M |
GEAR REVERSE
|
1 |
superseded
|
| 45 |
84811M |
CARRIER Bearing
|
1 |
superseded
|
| 46 |
82295M |
BEARING ROLLER
|
1 |
superseded
|
| 47 |
81633M |
SHIM REVERSE GEAR (.05MM)
|
AR |
discontinued
|
| 47 |
81634M |
SHIM REVERSE GEAR (.08MM)
|
AR |
discontinued
|
| 47 |
81635M |
SHIM REVERSE GEAR (.12MM)
|
AR |
superseded
|
| 47 |
81636M |
SHIM REVERSE GEAR (.30MM)
|
AR |
superseded
|
| 47 |
81637M |
SHIM REVERSE GEAR (.50MM)
|
AR |
superseded
|
| 48 |
81632M |
WASHER THRUST
|
1 |
discontinued
|
| 49 |
84812M |
O-RING
|
1 |
superseded
|
| 5 |
84788M |
SCREW
|
1 |
discontinued
|
| 50 |
82315M |
BEARING
|
1 |
discontinued
|
| 51 |
84813M |
SEAL Oil
|
2 |
discontinued
|
| 52 |
84814M |
WASHER TAB
|
1 |
discontinued
|
| 53 |
81619M |
NUT
|
1 |
superseded
|
| 54 |
81916M |
KEY
|
1 |
discontinued
|
| 55 |
41275M |
PIN Dowel
|
2 |
|
| 56 |
94720M |
BOLT [M-014871/ML-312186/E-252291/EL-553576] & Up
|
2 |
discontinued
|
| 56 |
81711M |
BOLT [M-014870/ML-312185/E-252290/EL-553575] & Below
|
2 |
discontinued
|
| 57 |
81711M |
BOLT
|
2 |
discontinued
|
| 58 |
82220M |
WASHER
|
4 |
discontinued
|
| 59 |
82364M |
PIN Dowel
|
2 |
discontinued
|
| 6 |
83069M |
SHIFT SHAFT ASSEMBLY (SHORT SHAFT)
|
1 |
discontinued
|
| 6 |
83052M |
SHIFT SHAFT ASSEMBLY (LONG SHAFT)
|
1 |
discontinued
|
| 6 |
83805M |
SHIFT SHAFT ASSEMBLY (ULTRA LONG SHAFT)
|
1 |
discontinued
|
| 60 |
82795M |
TRIM TAB
|
1 |
superseded
|
| 61 |
84815M |
BOLT
|
1 |
superseded
|
| 62 |
41896M |
COVER WATER INLET (PORT) [M-014871/ML-312186/E-252291/EL-553576] & Up
|
1 |
discontinued
|
| 62 |
81615M |
COVER WATER INLET (PORT) [M-014870/ML-312185/E-252290/EL-553575] & Below
|
1 |
superseded
|
| 63 |
41897M |
COVER WATER INLET (STARBOARD) [M-014871/ML-312186/E-252291/EL-553576] & Up
|
1 |
discontinued
|
| 63 |
81616M |
COVER WATER INLET (STARBOARD) [M-014870/ML-312185/E-252290/EL-553575] & Below
|
1 |
superseded
|
| 64 |
82483M |
SCREW
|
1 |
superseded
|
| 65 |
81781M |
NUT
|
1 |
superseded
|
| 66 |
81605M |
TUBE Water (SHORT SHAFT)
|
1 |
discontinued
|
| 66 |
84816M |
TUBE Water (LONG SHAFT)
|
1 |
discontinued
|
| 66 |
84817M |
TUBE Water (ULTRA LONG SHAFT)
|
1 |
discontinued
|
| 67 |
84818M |
SEAL UPPER
|
1 |
discontinued
|
| 68 |
80239M |
SEAL LOWER
|
1 |
discontinued
|
| 69 |
84819M |
SEAL
|
1 |
discontinued
|
| 7 |
82914M |
BOOT
|
1 |
|
| 70 |
84820M |
EXTENSION Water Tube (LONG AND ULTRA LONG SHAFT) (SEE NOTE)
|
1 or 2 |
discontinued
|
| 71 |
84821M |
O-RING (LONG AND ULTRA LONG SHAFT)
|
2 |
|
| 72 |
41277M |
PLATE (LONG AND ULTRA LONG SHAFT) [M-014871/ML-312186/E-252291/EL-553576] & Up
|
1 |
discontinued
|
| 72 |
97783M |
PLATE (LONG AND ULTRA LONG SHAFT) [M-014870/ML-312185/E-252290/EL-553575] & Below
|
1 |
superseded
|
| 73 |
81650M |
THRUST HUB FORWARD
|
1 |
superseded
|
| 74 |
84823M |
THRUST HUB REVERSE
|
1 |
superseded
|
| 75 |
82222M |
WASHER
|
1 |
superseded
|
| 76 |
81774M |
NUT PROPELLER
|
1 |
discontinued
|
| 77 |
82800M |
PIN COTTER
|
1 |
superseded
|
| 78 |
80218M |
PLUG
|
1 |
superseded
|
| 79 |
41898M |
PUMP KIT Water - Chrome [M-014871/ML-312186/E-252291/EL-553576] & Up
|
1 |
discontinued
|
| 79 |
97790M |
PUMP KIT Water - Chrome [M-014870/ML-312185/E-252290/EL-553575] & Below
|
1 |
discontinued
|
| 8 |
41276M |
HOUSING WATER PUMP [M-014871/ML-312186/E-252291/EL-553576] & Up
|
1 |
superseded
|
| 8 |
97788M |
HOUSING WATER PUMP [M-014870/ML-312185/E-252290/EL-553575] & Below
|
1 |
superseded
|
| 80 |
97791M |
INSERT CARTRIDGE [M-014871/ML-312186/E-252291/EL-553576] & Up
|
1 |
discontinued
|
| 80 |
84825M |
INSERT CARTRIDGE [M-009921/ML-308961/E-251701/EL-552686] THRU [M-014870/ML-312185/E-252290/EL-553575]
|
1 |
discontinued
|
| 81 |
84826M |
INSERT [M-009920/ML-308960/E-251700/EL-552685] & Below
|
1 |
superseded
|
| 82 |
94807M |
SEAL
|
1 |
superseded
|
| 83 |
41274M |
OUTER PLATE [M-014871/ML-312186/E-252291/EL-553576] & Up
|
1 |
discontinued
|
| 83 |
97792M |
OUTER PLATE [M-014870/ML-312185/E-252290/EL-553575] & Below
|
1 |
superseded
|
| 9 |
84790M |
BOLT (SHORT SHAFT)
|
3 |
superseded
|
