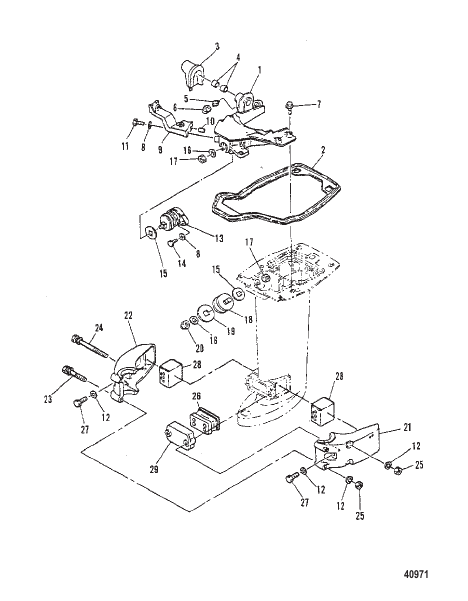

MOUNTING SYSTEM

MOUNTING SYSTEM

Parts (32)

#Part NumberDescriptionQtyStatus
1 95548M BRACKET MOUNTING [M-019911/ML-315401/E-252996/EL-555736] & Up 1 superseded
1 80654M BRACKET MOUNTING [M-019910/ML-315400/E-252995/EL-555735] & Below 1 discontinued
10 82364M PIN Dowel 1 discontinued
11 82451M BOLT 1 superseded
12 82217M WASHER 4 discontinued
13 84841M MOUNT RUBBER-UPPER FRONT 1
14 84058M BOLT (M6 x 20) 2
15 80662M GASKET 3 discontinued
16 82219M WASHER 3 discontinued
17 95207M NUT [M-019911/ML-315401/E-252996/EL-555736] & Up 3 superseded
17 82394M NUT [M-019910/ML-315400/E-252995/EL-555735] & Below 3 superseded
18 82557M MOUNT UPPER SIDE 2 superseded
19 81612M GASKET 2 discontinued
2 84838M SEAL BOTTOM BOWL 1 discontinued
20 82183M NUT 2 superseded
21 84842M HOUSING LOWER MOUNT-PORT 1 discontinued
22 84843M HOUSING LOWER MOUNT-STARBOARD 1 discontinued
23 84844M BOLT W/WASHER 2 discontinued
24 41893M BOLT W/WASHER [M-009376/ML-308481/E-251701/EL-552631] & Up 2 discontinued
24 84845M BOLT [M-009375/ML-308480/E-251700/EL-552630] & Below 2 discontinued
25 82392M NUT 4 superseded
26 84846M MOUNT RUBBER-LOWER FRONT 1 discontinued
27 82464M BOLT 2 superseded
28 84848M MOUNT RUBBER-HOUSING 2 discontinued
29 84847M COVER LOWER MOUNT 1 discontinued
3 84840M SEAL SHIFT BRACKET 1 discontinued
4 81930M BUSHING SHIFT ROD LEVER 2 discontinued
5 82369M FITTING GREASE 1
6 81439M CAP GREASE FITTING 1 discontinued
7 84839M BOLT 4 discontinued
8 82214M WASHER 3 discontinued
9 80657M BRACKET CABLE ANCHOR 1 discontinued
