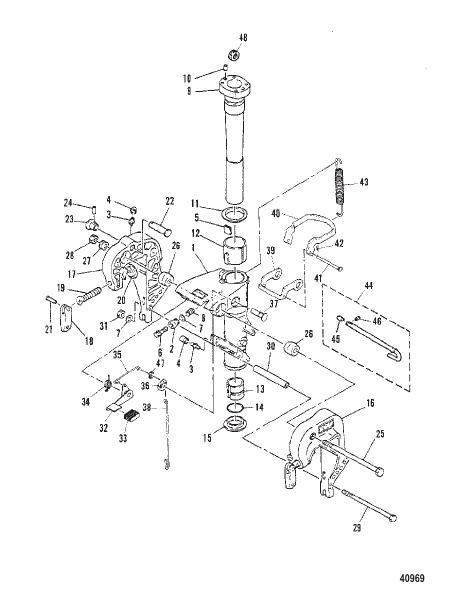

BRACKETS M-006085/ML-305360/E-251105/EL-552120 and Below
Parts (48)
| # | Part Number | Description | Qty | Status |
|---|
| 1 |
7855M |
BRACKET SWIVEL
|
1 |
discontinued
|
| 10 |
82368M |
PIN
|
2 |
discontinued
|
| 11 |
81873M |
WASHER
|
1 |
discontinued
|
| 12 |
81964M |
BUSHING
|
1 |
discontinued
|
| 13 |
81961M |
BUSHING
|
1 |
discontinued
|
| 14 |
82274M |
O-RING
|
1 |
discontinued
|
| 15 |
81959M |
BUSHING
|
1 |
discontinued
|
| 16 |
7847M |
BRACKET
|
1 |
discontinued
|
| 17 |
7848M |
BRACKET
|
1 |
discontinued
|
| 18 |
80048M |
HANDLE TRANSOM CLAMP
|
2 |
superseded
|
| 19 |
81756M |
SCREW
|
2 |
discontinued
|
| 2 |
84832M |
SEAL RUBBER
|
1 |
discontinued
|
| 20 |
80638M |
PAD TRANSOM CLAMP
|
2 |
discontinued
|
| 21 |
81888M |
PIN
|
2 |
discontinued
|
| 22 |
84835M |
SHAFT STOPPER
|
1 |
discontinued
|
| 23 |
84836M |
KNOB STOPPER
|
1 |
superseded
|
| 24 |
82148M |
PIN SPRING
|
1 |
discontinued
|
| 25 |
84834M |
BOLT
|
1 |
discontinued
|
| 26 |
80639M |
MOUNT FRICTION
|
2 |
discontinued
|
| 27 |
82101M |
SPRING
|
1 |
discontinued
|
| 28 |
82395M |
NUT
|
1 |
discontinued
|
| 29 |
81979M |
SPACER
|
1 |
superseded
|
| 3 |
82369M |
FITTING GREASE
|
2 |
|
| 30 |
82392M |
NUT
|
1 |
superseded
|
| 31 |
80646M |
LEVER
|
1 |
discontinued
|
| 32 |
80646M |
LEVER TILT
|
1 |
discontinued
|
| 33 |
80647M |
COVER TILT LEVER
|
1 |
discontinued
|
| 34 |
82109M |
SPRING TORSION
|
1 |
discontinued
|
| 35 |
80644M |
LINK TILT LOCK
|
1 |
discontinued
|
| 36 |
80648M |
CAM TILT
|
1 |
discontinued
|
| 37 |
81895M |
PIN
|
1 |
discontinued
|
| 38 |
80645M |
ROD TILT LOCK
|
1 |
discontinued
|
| 39 |
80643M |
HOOK TILT LOCK
|
1 |
discontinued
|
| 4 |
81439M |
CAP GREASE NIPPLE
|
2 |
discontinued
|
| 40 |
84837M |
HOOK TILT LOCK
|
1 |
discontinued
|
| 41 |
81882M |
PIN
|
1 |
discontinued
|
| 42 |
82125M |
COTTER PIN
|
1 |
discontinued
|
| 43 |
82105M |
SPRING
|
1 |
superseded
|
| 44 |
94569M |
PIN ASSEMBLY Tilt Lock
|
1 |
|
| 45 |
82857M |
PLATE Stopper
|
1 |
discontinued
|
| 46 |
82144M |
PIN SPRING
|
1 |
discontinued
|
| 47 |
82330M |
RING Snap
|
1 |
discontinued
|
| 48 |
82070M |
GROMMET
|
1 |
discontinued
|
| 5 |
80633M |
PLATE FRICTION
|
1 |
discontinued
|
| 6 |
81754M |
SCREW
|
1 |
discontinued
|
| 7 |
82217M |
WASHER
|
2 |
discontinued
|
| 8 |
82088M |
SPRING
|
1 |
discontinued
|
| 9 |
84833M |
SHAFT STEERING PIVOT
|
1 |
discontinued
|
