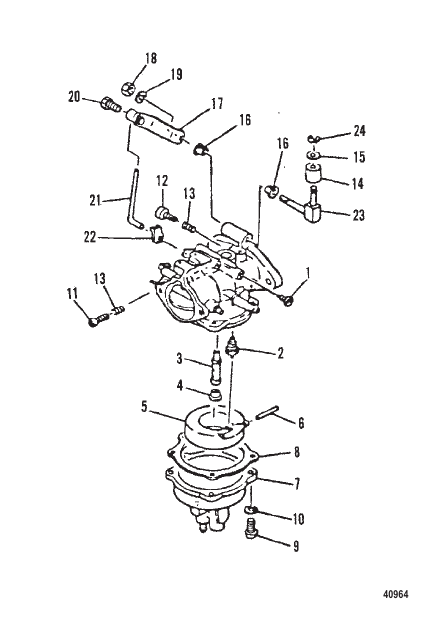

| # | Part Number | Description | Qty | Status |
|---|
| - |
84773M |
REPAIR KIT Carburetor
|
1 |
superseded
|
| - |
92575M |
GASKET SET
|
1 |
discontinued
|
| 0-1 |
7952M |
CARBURETOR ASSEMBLY
|
1 |
superseded
|
| 1 |
80578M |
JET LOW SPEED (#60)
|
1 |
discontinued
|
| 10 |
82206M |
LOCKWASHER
|
4 |
discontinued
|
| 11 |
82623M |
SCREW IDLE SPEED
|
1 |
superseded
|
| 12 |
80573M |
SCREW IDLE MIXTURE
|
1 |
discontinued
|
| 13 |
80575M |
SPRING
|
2 |
discontinued
|
| 14 |
84454M |
BUSHING THROTTLE SHAFT
|
1 |
discontinued
|
| 15 |
82209M |
WASHER
|
1 |
discontinued
|
| 16 |
81941M |
BUSHING THROTTLE SHAFT
|
2 |
discontinued
|
| 17 |
80622M |
LEVER THROTTLE
|
1 |
discontinued
|
| 18 |
82379M |
NUT
|
1 |
superseded
|
| 19 |
82208M |
WASHER LOCK
|
1 |
superseded
|
| 2 |
80593M |
VALVE/SEAT KIT Inlet
|
1 |
|
| 20 |
81558M |
SET SCREW THROTTLE LEVER
|
1 |
superseded
|
| 21 |
83160M |
LINK ROD THROTTLE LEVER
|
1 |
discontinued
|
| 22 |
81191M |
BRACKET
|
1 |
superseded
|
| 23 |
84772M |
ARM Throttle
|
1 |
superseded
|
| 24 |
82328M |
RING Snap
|
1 |
discontinued
|
| 3 |
80576M |
NOZZLE MAIN
|
1 |
discontinued
|
| 4 |
80582M |
JET MAIN (#140) [M-019911/ML-315401/E-252996/EL-554736] & Up
|
1 |
discontinued
|
| 4 |
82580M |
PLATE MAIN (#145) [M-019910/ML-315400/E-252995/EL-554735] & Below
|
1 |
discontinued
|
| 5 |
80591M |
FLOAT
|
1 |
discontinued
|
| 6 |
80592M |
PIN FLOAT [M-019911/ML-315401/E-252996/EL-554736] & Up
|
1 |
discontinued
|
| 6 |
84765M |
NUT FLOAT [M-019910/ML-315400/E-252995/EL-554735] & Below
|
1 |
superseded
|
| 7 |
83200M |
FLOAT BOWL
|
|
discontinued
|
| 8 |
80590M |
GASKET FLOAT BOWL
|
1 |
|
| 9 |
82515M |
SCREW
|
4 |
discontinued
|
