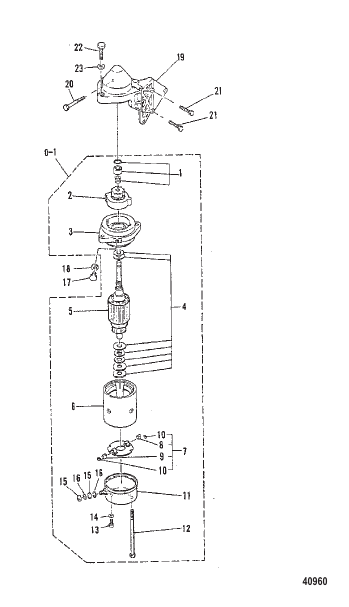

ELECTRIC START MOTOR (E-251105/EL-552120 and Below)
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|
| 0-1 |
84917M |
STARTER MOTOR ASSEMBLY
|
1 |
superseded
|
| 1 |
84918M |
STOP SET Pinion
|
1 |
discontinued
|
| 10 |
84927M |
SPRING BRUSH
|
2 |
discontinued
|
| 11 |
84928M |
COVER REAR
|
1 |
discontinued
|
| 12 |
84929M |
BOLT
|
2 |
discontinued
|
| 13 |
82501M |
SCREW
|
2 |
discontinued
|
| 14 |
82184M |
LOCKWASHER
|
2 |
superseded
|
| 15 |
82381M |
NUT
|
2 |
superseded
|
| 16 |
82197M |
WASHER LOCK
|
2 |
superseded
|
| 17 |
82436M |
BOLT
|
1 |
discontinued
|
| 18 |
82202M |
WASHER
|
1 |
superseded
|
| 19 |
92609M |
BRACKET MOTOR MOUNTING
|
1 |
discontinued
|
| 2 |
84919M |
GEAR Pinion
|
1 |
discontinued
|
| 20 |
84931M |
BOLT
|
1 |
discontinued
|
| 21 |
84237M |
BOLT
|
2 |
superseded
|
| 22 |
82441M |
BOLT
|
2 |
discontinued
|
| 23 |
82202M |
WASHER
|
2 |
superseded
|
| 3 |
84920M |
COVER FRONT
|
1 |
discontinued
|
| 4 |
84921M |
WASHER KIT
|
1 |
discontinued
|
| 5 |
84922M |
ARMATURE
|
1 |
discontinued
|
| 6 |
84923M |
STATOR
|
1 |
discontinued
|
| 7 |
84924M |
HOLDER Brush
|
1 |
discontinued
|
| 8 |
84925M |
BRUSH POSITIVE
|
1 |
discontinued
|
| 9 |
84926M |
BRUSH NEGATIVE
|
1 |
discontinued
|
