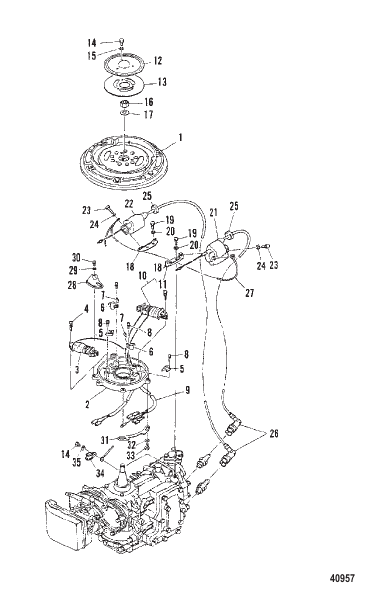

| # | Part Number | Description | Qty | Status |
|---|
| 0-1 |
7953M |
FLYWHEEL MAGNETO ASSEMBLY (MANUAL)
|
1 |
discontinued
|
| 0-1 |
7954M |
FLYWHEEL MAGNETO ASSEMBLY (ELECTRIC)
|
1 |
discontinued
|
| 1 |
7955M |
FLYWHEEL ASSEMBLY (MANUAL)
|
1 |
discontinued
|
| 1 |
7956M |
FLYWHEEL ASSEMBLY (ELECTRIC)
|
1 |
discontinued
|
| 10 |
83315M |
COIL Lighting
|
1 |
discontinued
|
| 11 |
84309M |
SCREW AND WASHER
|
2 |
superseded
|
| 12 |
80689M |
COVER FLYWHEEL
|
1 |
superseded
|
| 13 |
80690M |
GASKET FLYWHEEL COVER
|
1 |
discontinued
|
| 14 |
84303M |
BOLT
|
5 |
superseded
|
| 15 |
82198M |
WASHER
|
3 |
superseded
|
| 16 |
81770M |
NUT
|
1 |
discontinued
|
| 17 |
81814M |
WASHER
|
1 |
discontinued
|
| 18 |
81657M |
BRACKET SECONDARY COIL
|
2 |
discontinued
|
| 19 |
84211M |
BOLT
|
4 |
discontinued
|
| 2 |
92592M |
BASE MAGNETO
|
1 |
discontinued
|
| 20 |
82199M |
WASHER LOCK
|
4 |
superseded
|
| 21 |
92596M |
COIL ASSEMBLY Secondary Ignition - #1 Cylinder
|
1 |
discontinued
|
| 22 |
92595M |
COIL ASSEMBLY Secondary Ignition - #2 Cylinder
|
1 |
discontinued
|
| 23 |
82453M |
BOLT
|
4 |
superseded
|
| 24 |
82212M |
LOCKWASHER
|
4 |
discontinued
|
| 25 |
82069M |
GROMMET
|
2 |
discontinued
|
| 26 |
80935M |
PROTECTER (NOISE SUPPRESSOR)
|
2 |
superseded
|
| 26 |
82788M |
CAP ASSEMBLY Spark Plug
|
OPT |
superseded
|
| 27 |
96585M |
WIRE
|
1 |
discontinued
|
| 28 |
92591M |
CAM
|
1 |
discontinued
|
| 29 |
82196M |
WASHER
|
2 |
superseded
|
| 3 |
83281M |
COIL Ignition
|
1 |
superseded
|
| 30 |
84313M |
BOLT
|
1 |
discontinued
|
| 31 |
83305M |
STOP MAGNETO BASE
|
1 |
superseded
|
| 32 |
82198M |
WASHER
|
2 |
superseded
|
| 33 |
84303M |
BOLT
|
2 |
superseded
|
| 34 |
96348M |
CLAMP
|
1 |
discontinued
|
| 35 |
82197M |
WASHER
|
1 |
superseded
|
| 4 |
84309M |
SCREW AND WASHER
|
2 |
superseded
|
| 5 |
80930M |
BREAKER POINT ASSEMBLY
|
2 |
|
| 6 |
80558M |
CONDENSER
|
2 |
|
| 7 |
80025M |
LUBRICATOR
|
2 |
discontinued
|
| 8 |
80023M |
SCREW
|
4 |
superseded
|
| 9 |
92594M |
LEAD WIRE
|
1 |
discontinued
|
