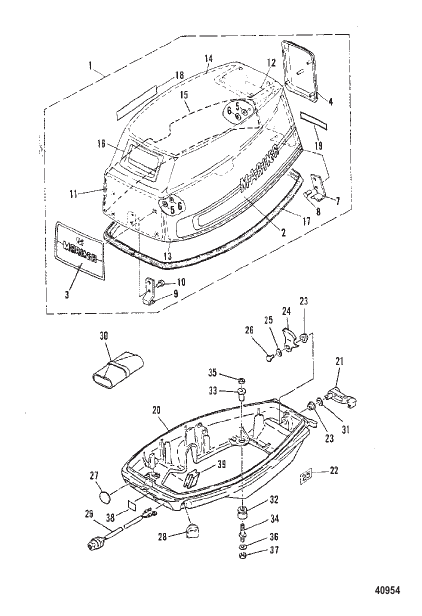

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8587M |
TOP COWL ASSEMBLY [M-009376/ML-308481/E-251701/EL-552631] & Up
|
1 |
superseded
|
| 1 |
6793M |
TOP COWL ASSEMBLY [M-009375/ML-308480/E-251700/EL-552630] & Below
|
1 |
superseded
|
| 10 |
83140M |
RIVET
|
2 |
discontinued
|
| 11 |
83319M |
SOUND BLANKET
|
1 |
superseded
|
| 12 |
83320M |
SOUND BLANKET REAR
|
1 |
superseded
|
| 13 |
83321M |
SOUND BLANKET STARBOARD
|
1 |
superseded
|
| 14 |
83322M |
SOUND BLANKET TOP
|
1 |
superseded
|
| 15 |
95506M |
SOUND BLANKET PORT
|
1 |
superseded
|
| 16 |
80601M |
SEAL RUBBER-STARTER
|
1 |
discontinued
|
| 17 |
84901M |
SEAL TOP COWL
|
1 |
discontinued
|
| 18 |
81202M |
DECAL Shift Indicator
|
1 |
discontinued
|
| 19 |
95547M |
DECAL (ELECTRIC MODELS) [E-252996/EL-554736] & Up
|
1 |
discontinued
|
| 2 |
97766M |
DECAL SIDE AND REAR SET [M-009376/ML-308481/E-251701/EL-552631] & Up
|
1 |
superseded
|
| 2 |
81114M |
DECAL SIDE SET [M-009375/ML-308480/E-251700/EL-552630] & Below
|
1 |
discontinued
|
| 20 |
7854M |
BOTTOM COWL
|
1 |
superseded
|
| 21 |
84913M |
LEVER COWL CLAMP
|
1 |
discontinued
|
| 22 |
82900M |
GRAPHIC SIDE (HP)
|
2 |
discontinued
|
| 23 |
81949M |
BUSHING COWL CLAMP LEVER
|
2 |
|
| 24 |
84914M |
CLAMP COWL
|
1 |
discontinued
|
| 25 |
81794M |
WASHER
|
1 |
discontinued
|
| 26 |
84315M |
BOLT
|
1 |
superseded
|
| 27 |
83988M |
GROMMET BOTTOM COWL (MANUAL)
|
1 |
discontinued
|
| 28 |
84915M |
GROMMET BOTTOM COWL
|
1 |
superseded
|
| 29 |
84916M |
SWITCH ASSEMBLY Stop (MANUAL) [M-009376/ML-308481/E-251701/EL-552631] & Up
|
1 |
superseded
|
| 29 |
92600M |
SWITCH ASSEMBLY Stop (MANUAL) [M-009375/ML-308480/E-251700/EL-552630] & Below
|
1 |
superseded
|
| 3 |
97767M |
EMBLEM FRONT [M-009376/ML-308481/E-251701/EL-552631] & Up
|
1 |
superseded
|
| 3 |
82898M |
APPLIQUE FRONT [M-009375/ML-308480/E-251700/EL-552630] & Below
|
1 |
discontinued
|
| 30 |
81669M |
TOOL KIT
|
1 |
superseded
|
| 31 |
81869M |
WASHER WAVE
|
1 |
discontinued
|
| 32 |
84910M |
GROMMET
|
4 |
discontinued
|
| 33 |
84911M |
COLLAR
|
4 |
discontinued
|
| 34 |
84912M |
STUD SPECIAL
|
4 |
superseded
|
| 35 |
82383M |
NUT
|
4 |
discontinued
|
| 36 |
82217M |
WASHER
|
4 |
discontinued
|
| 37 |
82393M |
NUT
|
4 |
superseded
|
| 38 |
95570M |
DECAL [M-019911/ML-315401/E-252996/EL-554736] & Up
|
1 |
discontinued
|
| 39 |
83728M |
GROMMET (FOR ENGINE WITHOUT MANUAL STEERING) [M-019911/ML-315401/E-252996/EL-554736] & Up
|
OPT |
discontinued
|
| 4 |
82899M |
APPLIQUE REAR [M-019910/ML-315400/E-252995/EL-554735] & Below
|
1 |
discontinued
|
| 5 |
80884M |
WASHER APPLIQUE NUT [M-009375/ML-308480/E-251700/EL-552630] & Below
|
10 |
discontinued
|
| 6 |
82927M |
NUT APPLIQUE ATTACHING [M-009375/ML-308480/E-251700/EL-552630] & Below
|
10 |
discontinued
|
| 7 |
83212M |
HOLDER CLAMP BAND
|
1 |
discontinued
|
| 8 |
84903M |
RIVET
|
2 |
discontinued
|
| 9 |
83137M |
HOOK
|
1 |
discontinued
|
