| # | Part Number | Description | Qty | Status |
|---|
| - |
55642A13 |

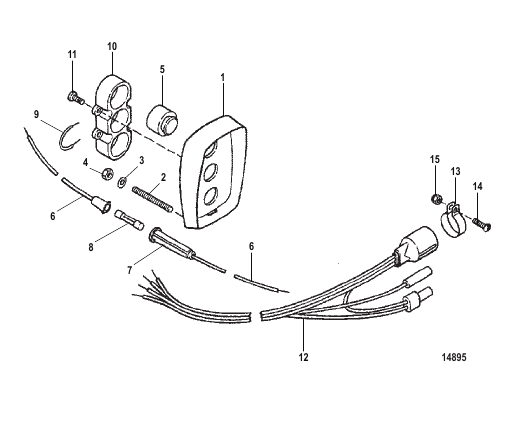

CONTROL PANEL ASSEMBLY (Complete)
|
1 |
disc.
|
| 1 |
55642A17 |
PANEL KIT
|
1 |
disc.
|
| 10 |
55641 |
RETAINER
|
1 |
disc.
|
| 11 |
62568 |
SCREW (#10-16 x .375)
|
4 |
|
| 12 |
87394A20 |
HARNESS ASSEMBLY
|
1 |
|
| 13 |
46770 |
CLAMP
|
1 |
superseded
|
| 14 |
29227 |
SCREW (#8-32 x 0.50)
|
1 |
|
| 15 |
34388 |
NUT
|
1 |
disc.
|
| 2 |
55422 |
STUD (#10-32 x 2.00)
|
4 |
|
| 3 |
24676 |
WASHER (.200 x .440 x .032)
|
4 |
|
| 4 |
27164 |
NUT AND LOCKWASHER (#10-32)
|
4 |
|
| 5 |
55738A1 |
SWITCH ASSEMBLY Push Button
|
3 |
|
| 6 |
69174A2 |
WIRE (24.00 Inches) Red
|
2 |
disc.
|
| 7 |
69358A1 |
CAP ASSEMBLY
|
1 |
disc.
|
| 8 |
79091 |
FUSE 20 Ampere
|
1 |
superseded
|
| 9 |
53107 |
WIRE Jumper (3.00 Inches) Purple
|
1 |
disc.
|
