| # | Part Number | Description | Qty | Status |
|---|
| - |
95810A6 |

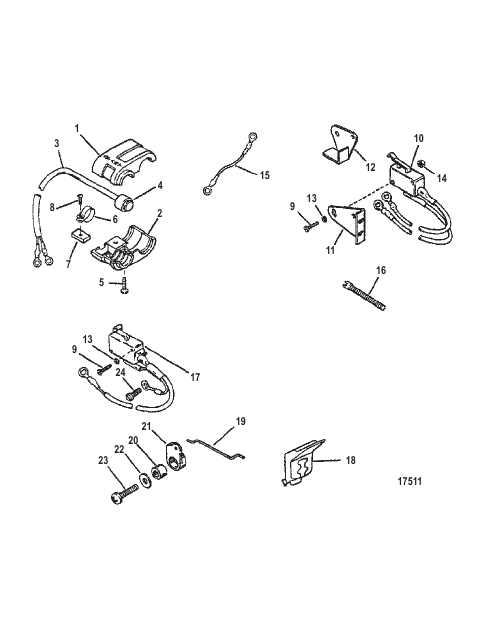

CONVERSION KIT Electric Start
|
1 |
disc.
|
| - |
95810A8 |
CONVERSION KIT Electric Start
|
1 |
|
| - |
95810A9 |
CONVERSION KIT Electric Start
|
1 |
disc.
|
| 1 |
95815 |
COVER Top
|
1 |
disc.
|
| 10 |
93479A4 |
SWITCH ASSEMBLY Neutral Start (87-95810A9)
|
1 |
disc.
|
| 11 |
110361 |
BRACKET (87-95810A9)
|
1 |
disc.
|
| 12 |
12001 |
CAM Switch Actuating (87-95810A9)
|
1 |
disc.
|
| 13 |
11052 |
LOCKWASHER #4 Internal (87-95810A9)
|
2 |
disc.
|
| 13 |
45771 |
WASHER (87-95810A6 and 87-95810A8)
|
2 |
disc.
|
| 14 |
63683 |
NUT (.112-40) (87-95810A9)
|
1 |
disc.
|
| 15 |
79139A20 |
CABLE ASSEMBLY Red
|
1 |
|
| 16 |
118591 |
SCREW (.190-32 x 1.750) (87-95810A8)
|
1 |
disc.
|
| 17 |
88890A2 |
SWITCH ASSEMBLY (87-95810A6 and 87-95810A8)
|
1 |
|
| 18 |
121532 |
GROMMET Bottom Cowl (87-95810A6 and 87-95810A8)
|
1 |
|
| 19 |
42184 |
LINK (87-95810A6)
|
1 |
disc.
|
| 2 |
95828 |
COVER Bottom
|
1 |
disc.
|
| 20 |
421821 |
BUSHING (87-95810A6)
|
1 |
disc.
|
| 21 |
42183 |
ACTUATOR (87-95810A6)
|
1 |
disc.
|
| 22 |
4002316 |
WASHER (6.60 X 17.0 X 1.5SS) (87-95810A6)
|
1 |
superseded
|
| 23 |
40011128 |
SCREW (M6 x 20) Stainless Steel (87-95810A6)
|
1 |
superseded
|
| 24 |
62568 |
SCREW (#10-16 x .375) (87-95810A6 and 87-95810A8)
|
1 |
|
| 25 |
816311 |
TIE STRAP (8.00 Inches)
|
2/3 |
superseded
|
| 3 |
95810A1 |
SWITCH ASSEMBLY Start
|
1 |
|
| 4 |
55741 |
BOOT
|
1 |
superseded
|
| 5 |
69570 |
SCREW (#10-16 x .750)
|
1 |
|
| 6 |
95814 |
STRAP
|
1 |
|
| 7 |
95813 |
FASTENER
|
1 |
disc.
|
| 8 |
40019108 |
SCREW (M5 x 20)
|
1 |
disc.
|
| 9 |
4005727 |
SCREW (87-95810A6 and 87-95810A8)
|
2 |
disc.
|
| 9 |
90342 |
SCREW (#4-40 x .630) (87-95810A9)
|
1 |
disc.
|
