| # | Part Number | Description | Qty | Status |
|---|
| - |
822462A4 |

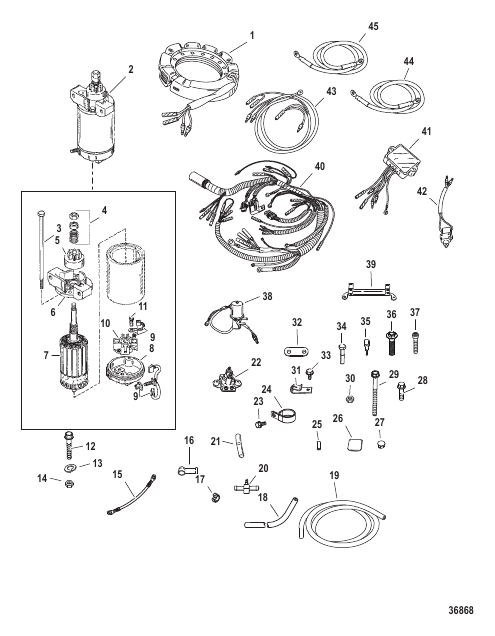

CONVERSION KIT Starter Motor
|
1 |
|
| 1 |
832075A21 |
STATOR ASSEMBLY
|
1 |
|
| 10 |
61787 |
HOLDER
|
1 |
superseded
|
| 11 |
F15158 |
SCREW
|
2 |
disc.
|
| 12 |
40011153 |
SCREW (M8 x 45) Stainless Steel
|
3 |
|
| 13 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
3 |
|
| 14 |
64015 |
NUT (.250-20)
|
3 |
|
| 15 |
88807A33 |
CABLE ASSEMBLY
|
1 |
|
| 16 |
830233 |
BOOT Insulator - Red
|
1 |
|
| 17 |
816311T |
TIE STRAP (8.00 Inches)
|
13 |
|
| 18 |
9912644 |
TUBING (11.50 Inches)
|
1 |
|
| 19 |
9912688 |
TUBING (36.00 Inches Bulk) Cut to Length, 16.50 inch
|
1 |
|
| 2 |
893890T |
STARTER MOTOR ASSEMBLY
|
1 |
|
| 20 |
17607 |
TEE FITTING
|
1 |
|
| 21 |
8507051 |
INSULATOR
|
1 |
|
| 22 |
850187T1 |
SOLENOID ASSEMBLY
|
1 |
superseded
|
| 23 |
40011129 |
SCREW (M6 x 25) Stainless Steel
|
2 |
|
| 24 |
633003 |
CLAMP
|
1 |
|
| 25 |
15026 |
CAP
|
1 |
|
| 26 |
17230 |
PLUG
|
1 |
|
| 27 |
822464 |
PLUG
|
1 |
|
| 28 |
4006731 |
SCREW (M6 x 16)
|
1 |
|
| 29 |
82129135 |
SCREW (M6 x 35)
|
2 |
|
| 3 |
965661 |
THRU BOLT
|
1 |
disc.
|
| 30 |
26419 |
NUT (#8-32) Brass
|
2 |
|
| 31 |
54457 |
J CLIP
|
1 |
|
| 32 |
824923 |
PLATE
|
1 |
|
| 33 |
8128321 |
SCREW (#10-16 x .600)
|
2 |
superseded
|
| 34 |
82239312 |
SCREW (M5 x 12)
|
1 |
|
| 35 |
13541 |
PLUG Male
|
4 |
|
| 36 |
88075020 |
SCREW (M3 x 20)
|
2 |
|
| 37 |
4013930 |
SCREW (M5 x 30)
|
5 |
|
| 38 |
819503A5 |
SOLENOID KIT Enrichner Valve
|
1 |
|
| 39 |
8261151 |
CLAMP Connector
|
1 |
|
| 4 |
90643 |
DRIVE KIT
|
1 |
|
| 40 |
854322A1 |
HARNESS ASSEMBLY Engine
|
1 |
|
| 41 |
883072T |
REGULATOR Voltage
|
1 |
superseded
|
| 42 |
813960A3 |
SWITCH
|
1 |
superseded
|
| 43 |
852375A4 |
HARNESS ASSEMBLY
|
1 |
|
| 44 |
88439A9 |
CABLE ASSEMBLY Battery - Positive
|
1 |
|
| 45 |
88439A4 |
CABLE ASSEMBLY Battery - Negative
|
1 |
|
| 5 |
685753 |
DRIVE ASSEMBLY
|
1 |
|
| 6 |
8236392 |
DRIVE CAP
|
1 |
disc.
|
| 7 |
965651 |
ARMATURE
|
1 |
disc.
|
| 8 |
8119011 |
CAP Commutator
|
1 |
disc.
|
| 9 |
75384 |
BRUSH/SPRING KIT
|
1 |
superseded
|
