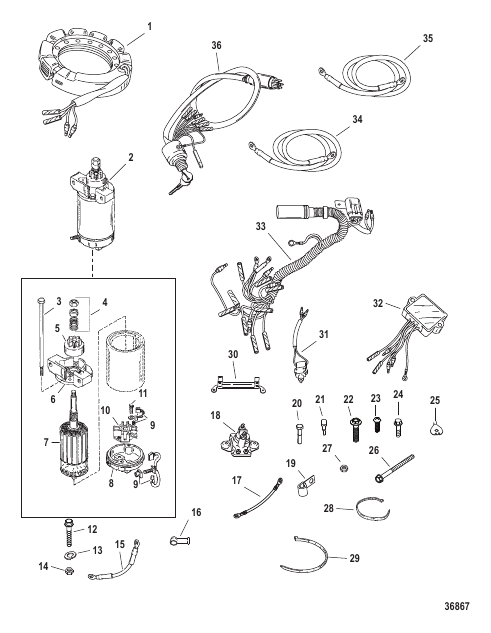

| # | Part Number | Description | Qty | Status |
|---|
| - |
822462A2 |
CONVERSION KIT Starter Motor
|
1 |
|
| 1 |
832075A21 |
STATOR ASSEMBLY
|
1 |
|
| 10 |
61787 |
HOLDER
|
1 |
superseded
|
| 11 |
F15158 |
SCREW
|
2 |
disc.
|
| 12 |
40011153 |
SCREW (M8 x 45) Stainless Steel
|
3 |
|
| 13 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
3 |
|
| 14 |
64015 |
NUT (.250-20)
|
3 |
|
| 15 |
93388A6 |
CABLE ASSEMBLY (5.500 Inches)
|
1 |
|
| 16 |
830233 |
BOOT Insulator - Red
|
1 |
|
| 17 |
88807A16 |
CABLE ASSEMBLY (4.00 Inches) Black
|
1 |
|
| 18 |
850187T1 |
SOLENOID ASSEMBLY
|
1 |
superseded
|
| 19 |
54457 |
J CLIP
|
1 |
|
| 2 |
893890T |
STARTER MOTOR ASSEMBLY
|
1 |
|
| 20 |
82129125 |
SCREW (M6 x 25 MM)
|
2 |
|
| 21 |
13541 |
PLUG Male
|
5 |
|
| 22 |
40011106 |
SCREW (M5 x 13) Stainless Steel
|
1 |
|
| 23 |
12110 |
SCREW (#6-32 x .750)
|
2 |
|
| 24 |
82239312 |
SCREW (M5 x 12)
|
4 |
|
| 25 |
8158051 |
TAB WASHER
|
1 |
|
| 26 |
82129135 |
SCREW (M6 x 35)
|
2 |
|
| 27 |
26419 |
NUT (#8-32) Brass
|
2 |
|
| 28 |
56762 |
TIE STRAP (4.00 Inches)
|
4 |
|
| 29 |
69355 |
TIE STRAP (5.50 Inches)
|
2 |
superseded
|
| 3 |
965661 |
THRU BOLT
|
1 |
disc.
|
| 30 |
8266241 |
CLAMP
|
1 |
|
| 31 |
813960A3 |
SWITCH
|
1 |
superseded
|
| 32 |
883072T |
REGULATOR Voltage
|
1 |
superseded
|
| 33 |
850220A2 |
HARNESS ASSEMBLY Engine
|
1 |
|
| 34 |
88439A9 |
CABLE ASSEMBLY Battery - Positive
|
1 |
|
| 35 |
88439A4 |
CABLE ASSEMBLY Battery - Negative
|
1 |
|
| 36 |
12649A5 |
HARNESS ASSEMBLY
|
1 |
|
| 4 |
90643 |
DRIVE KIT
|
1 |
|
| 5 |
685753 |
DRIVE ASSEMBLY
|
1 |
|
| 6 |
8236392 |
DRIVE CAP
|
1 |
disc.
|
| 7 |
965651 |
ARMATURE
|
1 |
disc.
|
| 8 |
8119011 |
CAP Commutator
|
1 |
disc.
|
| 9 |
75384 |
BRUSH/SPRING KIT
|
1 |
superseded
|
