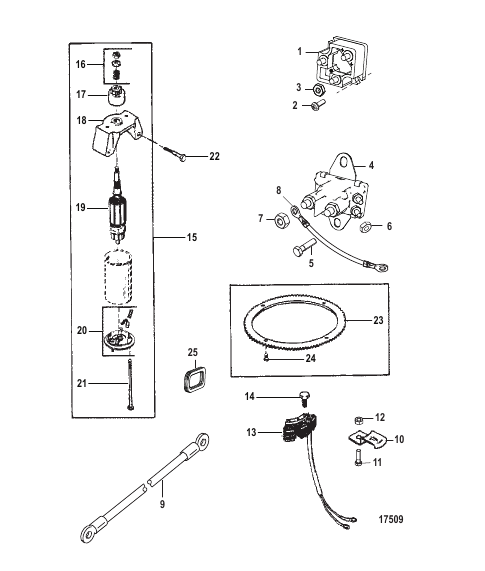

| # | Part Number | Description | Qty | Status |
|---|
| - |
90983A3 |
STARTER MOTOR KIT Electric
|
1 |
superseded
|
| 1 |
816770 |
RECTIFIER
|
1 |
superseded
|
| 10 |
92439 |
BRACKET
|
1 |
|
| 11 |
4000327 |
SCREW (M6 x 14)
|
1 |
|
| 12 |
400212 |
NUT (M6) Stainless Steel
|
1 |
|
| 13 |
86704A2 |
STATOR ASSEMBLY
|
1 |
superseded
|
| 14 |
4000123 |
SCREW (M5 x 30)
|
3 |
|
| 15 |
90983A1 |
STARTER MOTOR ASSEMBLY
|
1 |
superseded
|
| 16 |
96561 |
DRIVE KIT
|
1 |
disc.
|
| 17 |
96562 |
DRIVE
|
1 |
|
| 18 |
96563 |
END CAP
|
1 |
superseded
|
| 19 |
96565 |
ARMATURE
|
1 |
disc.
|
| 2 |
48409 |
SCREW (#10-16 x .625) Stainless Steel
|
2 |
|
| 20 |
96564 |
END CAP (With Springs and Brushes)
|
1 |
superseded
|
| 21 |
96566 |
THRU BOLT
|
1 |
disc.
|
| 22 |
421251 |
SCREW (M8 x 55)
|
2 |
superseded
|
| 23 |
99301 |
RING GEAR
|
1 |
|
| 24 |
40039106 |
SCREW (M5 x 13)
|
4 |
superseded
|
| 25 |
93770 |
GROMMET
|
1 |
disc.
|
| 3 |
45076 |
NUT (#10-32) Brass
|
3 |
|
| 4 |
850189 |
SOLENOID Starter
|
1 |
superseded
|
| 5 |
4000327 |
SCREW (M6 x 14)
|
2 |
|
| 6 |
26419 |
NUT (#8-32) Brass
|
2 |
|
| 7 |
64015 |
NUT (.250-20)
|
2 |
|
| 8 |
88809A5 |
WIRE ASSEMBLY (Yellow)
|
1 |
|
| 9 |
88439A6 |
CABLE ASSEMBLY Battery (Black)
|
1 |
superseded
|
| 9 |
88439A8 |
CABLE ASSEMBLY Battery (Red)
|
1 |
superseded
|
| NS |
825149A1 |
DECAL KIT
|
1 |
disc.
|
| NS |
815504210 |
CLAMP Worm Gear
|
1 |
|
| NS |
22740 |
CLIP
|
1 |
|
| NS |
55098 |
J CLIP
|
1 |
superseded
|
| NS |
35044 |
WASHER (.281 x .625 x .065) Stainless Steel
|
1 |
|
