| # | Part Number | Description | Qty | Status |
|---|
| - |
846170A1 |

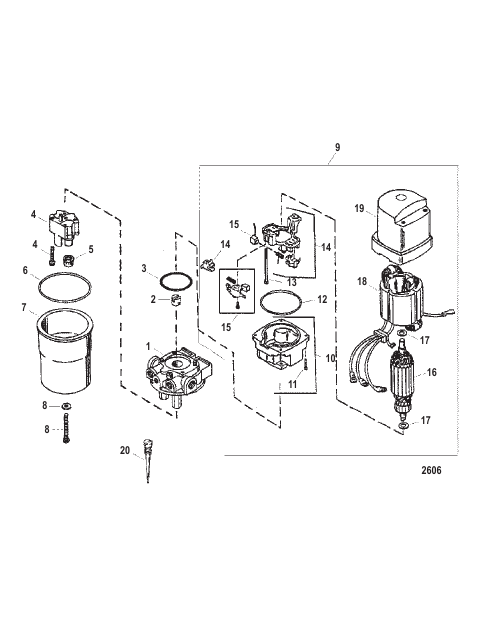

PUMP ASSEMBLY TRIM (Design I, Metal Reservoir)
|
1 |
superseded
|
| 1 |
NSS |
NOT SOLD SEPARATE Adaptor
|
1 |
|
| 10 |
17632T |
END CAP ASSEMBLY With Bearing
|
1 |
disc.
|
| 11 |
17626 |
SCREW
|
4 |
disc.
|
| 12 |
17625 |
O-RING Frame to Housing
|
4 |
disc.
|
| 13 |
17621 |
SCREW
|
2 |
disc.
|
| 14 |
17633 |
HOLDER KIT Brush
|
1 |
disc.
|
| 15 |
17631A1 |
BRUSH KIT
|
1 |
disc.
|
| 16 |
17623 |
ARMATURE
|
1 |
disc.
|
| 17 |
17653 |
WASHER Thrust
|
2 |
disc.
|
| 18 |
17624 |
FIELD AND FRAME ASSEMBLY
|
1 |
disc.
|
| 19 |
17622 |
COVER ASSEMBLY With Bearing
|
1 |
disc.
|
| 2 |
89493 |
COUPLING
|
1 |
superseded
|
| 20 |
89499 |
DIPSTICK
|
1 |
|
| 3 |
89498 |
O-RING Motor to Adaptor
|
1 |
|
| 4 |
811492 |
PUMP With Screws
|
1 |
superseded
|
| 5 |
89496 |
FILTER
|
2 |
|
| 6 |
89497 |
O-RING Reservoir to Adaptor
|
1 |
|
| 7 |
90587 |
RESERVOIR
|
1 |
superseded
|
| 8 |
90588 |
SCREW
|
1 |
disc.
|
| 9 |
17649T |
MOTOR ASSEMBLY (Design I - Small Manufacturing Decal on Top of Motor Cover and Wires will Have White Spirial Line)
|
1 |
superseded
|
| NS |
812498A1 |
VALVE KIT Relief Pressure
|
1 |
|
