| # | Part Number | Description | Qty | Status |
|---|
| - |
845760T09 |

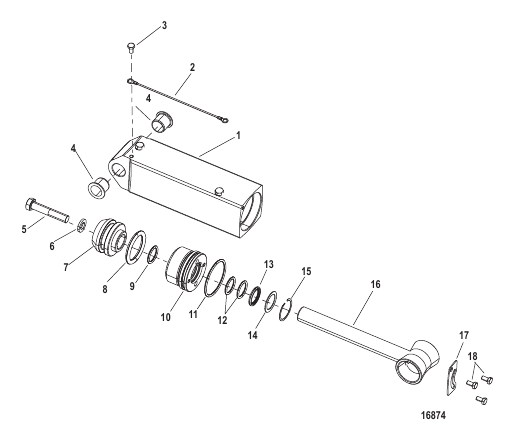

CYLINDER ASSEMBLY Trim Tab
|
AR |
|
| 1 |
NSS |
NOT SOLD SEPARATE Cylinder Body
|
1 |
|
| 10 |
840768 |
END CAP
|
1 |
superseded
|
| 11 |
845749 |
O-RING
|
1 |
|
| 12 |
87298 |
O-RING
|
2 |
superseded
|
| 13 |
36039 |
SCRAPER Rod
|
1 |
|
| 14 |
85382 |
WASHER (1.10 x .81 x .031)
|
1 |
|
| 15 |
85202 |
RING Retaining
|
1 |
|
| 16 |
842743 |
ROD Hydraulic Cylinder
|
1 |
superseded
|
| 17 |
891538 |
PLATE
|
1 |
|
| 19 |
68513 |
SCREW (#10-32 x .375) Stainless Steel
|
3 |
|
| 2 |
88238A13 |
CABLE ASSEMBLY Ground
|
1 |
superseded
|
| 3 |
68513 |
SCREW (#10-32 x .375) Stainless Steel
|
1 |
|
| 4 |
8159501 |
BUSHING
|
2 |
superseded
|
| 5 |
35871 |
SCREW (.375-24 x 1.500)
|
1 |
|
| 6 |
27880 |
WASHER
|
1 |
|
| 7 |
840763 |
PISTON Hydraulic
|
1 |
superseded
|
| 8 |
845742 |
O-RING
|
1 |
|
| 9 |
87298 |
O-RING
|
1 |
superseded
|
