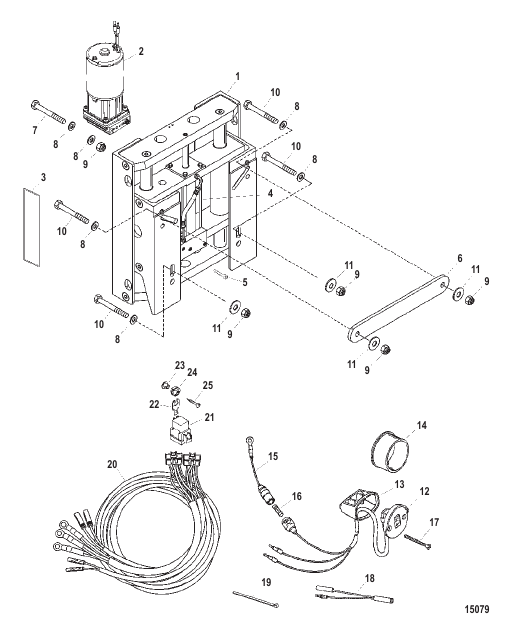

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
881135K1 |
JACKPLATE KIT Hydraulic (Complete)
|
1 |
superseded
|
| 1 |
881135A1 |
JACKPLATE ASSEMBLY
|
1 |
disc.
|
| 10 |
677551 |
SCREW (.500-20 x 4.500)
|
4 |
superseded
|
| 11 |
28421 |
WASHER (1.5 x 3.05 x 0.13) Stainless Steel
|
4 |
superseded
|
| 12 |
18286A19 |
SWITCH KIT Trim (25.00 Feet)
|
1 |
|
| 13 |
18861 |
RETAINER Trim Switch
|
1 |
|
| 14 |
814820 |
ADAPTER Surface Mount
|
1 |
disc.
|
| 15 |
95084A2 |
CABLE ASSEMBLY Fuse
|
1 |
|
| 16 |
79091 |
FUSE 20 Ampere
|
1 |
superseded
|
| 17 |
19209 |
SCREW (#10-32 x 2.25) (Optional)
|
2 |
disc.
|
| 17 |
813523 |
SCREW (#10-16 x 2.25) (Optional)
|
2 |
disc.
|
| 18 |
11149A2 |
CABLE ASSEMBLY (6.00 Inches)
|
2 |
|
| 19 |
816311T |
TIE STRAP (8.00 Inches)
|
3 |
|
| 2 |
881134T1 |
PUMP/MOTOR ASSEMBLY (See Pump/Motor Assembly (881134T1) Section For Service Parts Breakdown)
|
1 |
disc.
|
| 20 |
881133T1 |
HARNESS ASSEMBLY
|
1 |
disc.
|
| 21 |
828151A1 |
RELAY ASSEMBLY Trim
|
2 |
superseded
|
| 22 |
828102 |
BRACKET Mounting
|
2 |
superseded
|
| 23 |
818968 |
BUSHING
|
2 |
superseded
|
| 24 |
818967 |
GROMMET
|
2 |
|
| 25 |
92799 |
SCREW (#10-16 x 1.12)
|
2 |
|
| 3 |
881159 |
DECAL (Mercury Precision Rigging)
|
2 |
disc.
|
| 4 |
881161A1 |
HOSE KIT Hydraulic
|
1 |
disc.
|
| 5 |
F2143 |
SCREW (.250-20 x 1.00) Stainless Steel (Manifold Plate Mounting)
|
5 |
|
| 6 |
881160 |
PLATE Back-Up
|
1 |
disc.
|
| 7 |
881158 |
SCREW (.500-20 x 2.00) (Design I) (Engine Mounting)
|
4 |
superseded
|
| 7 |
818221 |
SCREW (.500-20 x 2.250) (Design II) (Engine Mounting)
|
4 |
|
| 8 |
54012 |
WASHER (.530 x .870 x .105) Stainless Steel
|
12 |
superseded
|
| 9 |
82671117 |
NUT (.500-20)
|
8 |
|
| NS |
NSS |
NOT SOLD SEPARATE O-Ring
|
2 |
|
