| # | Part Number | Description | Qty | Status |
|---|
| - |
M899422T |

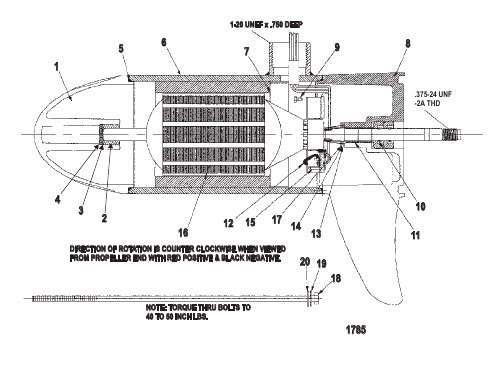

LOWER UNIT ASSEMBLY Complete (46# - 5/2 Speed) Marked MET397035
|
1 |
disc.
|
| - |
M6220T1 |
REPAIR KIT Lower Unit Assembly - NOTE: See Repair Kit - Lower Unit Assembly Section For Complete List Of Component Parts In Kit
|
1 |
disc.
|
| 1 |
M899456T |
NOSE CAP ASSEMBLY
|
1 |
disc.
|
| 10 |
MR22301T |
SEAL Armature Shaft
|
2 |
disc.
|
| 11 |
MR20603T |
BEARING (.750) Sintered Bronze
|
1 |
disc.
|
| 12 |
M899412T |
BRUSH CARD ASSEMBLY Less Springs
|
1 |
disc.
|
| 13 |
MR22601T |
WASHER (.378 x .655 x .026) Nylatron
|
1 |
|
| 14 |
MR22701T |
THRUST WASHER (.380 x .660 x .025)
|
1 |
|
| 15 |
MR21402T |
SPRING Brushes
|
2 |
disc.
|
| 16 |
MKF32071T |
ARMATURE
|
1 |
disc.
|
| 17 |
MR21902T |
E RING
|
1 |
|
| 18 |
MR218015 |
THRU BOLT ASSEMBLY
|
2 |
superseded
|
| 19 |
MR21602T |
WASHER (.204 x .375 x .048) Stainless Steel
|
2 |
disc.
|
| 2 |
MR20604T |
BEARING (.500) Sintered Bronze
|
1 |
|
| 20 |
MR22202T |
SEAL Static - Teflon Coated
|
2 |
disc.
|
| 3 |
MR22501T |
THRUST DISK Nylatron
|
1 |
disc.
|
| 4 |
MR22401BT |
THRUST DISK Plated
|
1 |
disc.
|
| 5 |
MR21702T |
O-RING (3.187 x .073) Blue Teflon Coated
|
2 |
disc.
|
| 6 |
M889259T |
HOUSING ASSEMBLY With Magnets
|
1 |
disc.
|
| 7 |
MJF23301T |
RETAINER
|
1 |
disc.
|
| 8 |
M899413T |
COMM CAP ASSEMBLY
|
1 |
superseded
|
| 9 |
MR22801T |
SCREW (#10-32 x .500) Self Tap Washer Head Brush Card
|
2 |
disc.
|
