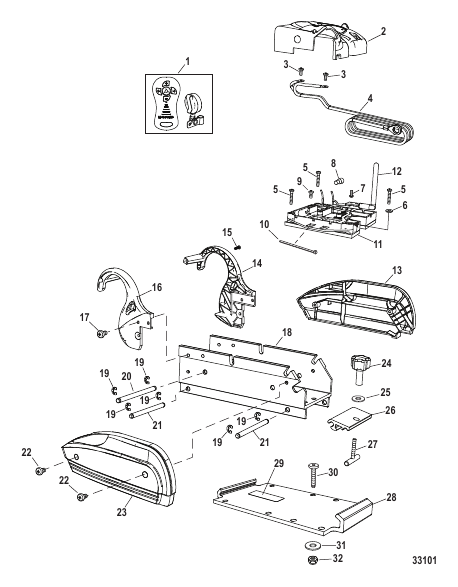

Electrical And Mount Components (Brute 50/70 Wireless)

Parts (33)

#Part NumberDescriptionQtyStatus
1 M887657 KEY FOB ASSEMBLY Remote Hand Held 1 disc.
1 ORDLOCAL   ORDER PART LOCAL Battery - 3 Volt Lithium CR2032 1
10 816311T TIE STRAP (8.00 Inches) 1
11 M899694T CONTROLLER ASSEMBLY 1 disc.
12 MVP02104T   ANTENNA ASSEMBLY 1 disc.
13 MVP03402T DECKET Right - Black 1 disc.
14 MVP01302T CRADLE Right - Black 1
15 MAT14101T SCREW (#8 x .625) 1 disc.
16 MVP01301T CRADLE Left - Black 1 disc.
17 MVP13404T SCREW (.250-20 x .500) Stainless Steel 4
18 MVP12302T BASE Mount 1 superseded
19 MBK04601T E RING 6
2 M889266T COVER ASSEMBLY Battery Meter - With Ribbon Cable 1 disc.
20 MVP10606T PIN (5.400 Inches) 1 disc.
21 MVP10607T PIN (4.820 Inches) 2 disc.
22 MVP13404T SCREW (.250-20 x .500) Stainless Steel 4
23 MVP03401T DECKET Left - Black 1 disc.
24 MVP08201T KNOB ASSEMBLY 1 disc.
25 MVP17105T WASHER (.286 x .630 x .072) Stainless Steel 1 disc.
26 M899803T CAM Latch 1 disc.
27 MVP13303T T BOLT (.250-20) Stainless Steel 1 disc.
28 8M4000975 PLATE KIT Mounting 1 disc.
29 NSS   NOT SOLD SEPARATE Information Decal 1
3 MBV13301T SCREW (#8-32 x .375) With Patch - Stainless Steel 2 disc.
30 MVP13304T   SCREW (.312-18 x 2.500) Stainless Steel 4 disc.
31 MVP17107T   WASHER (.344 x 1.250 x .040) Stainless Steel 4 disc.
32 MVP09802T   LOCKNUT (.312-18) Stainless Steel 4 superseded
4 MVP32802T CABLE ASSEMBLY Battery 1 disc.
5 MVP13402T SCREW (#8-32 x 1.00) With Patch - Stainless Steel 3 disc.
6 28001 WASHER (.188 x .438 x .049) 1 disc.
7 MVP13302T SCREW (#6-19 x .375) Stainless Steel Antenna Mount 1 disc.
8 MBF02902T CONNECTOR Pigtail (#22-14) 2 disc.
9 MBV13301T SCREW (#8-32 x .375) With Patch - Stainless Steel 1 disc.
