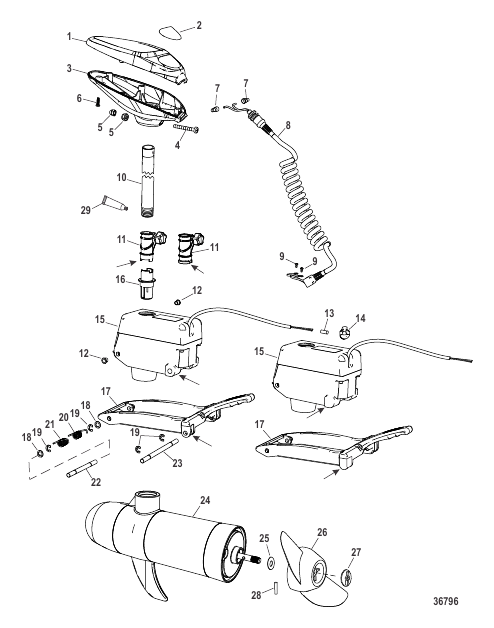

Complete Trolling Motor (Brute 50/70 Wireless) (12/24 Volt)

Parts (35)

#Part NumberDescriptionQtyStatus
1 MVP05301T COVER Top - Black 1 disc.
10 MVP04903T COLUMN (54.00 Inches) Black Composite 1 superseded
10 MVP04904T COLUMN (60.00 Inches) Black Composite 1 superseded
11 M899552T COLLAR ASSEMBLY Depth - Design I - No Lip On Bottom 1 superseded
11 M899552T1 COLLAR ASSEMBLY Depth - Design II - Outer Lip On Bottom 1
12 MFK02101T BUSHING Nyliner (.375) 2 superseded
13 M899757T FERRITE RING - 24 Volt Models 2 superseded
14 MVP01901T GROMMET Steering Cable 1
15 MVP40001T TRANSMISSION ASSEMBLY Black Service Complete - Design I - Lever Handle With Mount Pin 1 superseded
15 M879306T TRANSMISSION ASSEMBLY Black Service Complete - Design II - Lever Handle Without Mount Pin 1 disc.
16 NSS   NOT SOLD SEPARATE Column Drive Tube - Design I And Design II 1
17 M899551T   LEVER HANDLE Black - Design I - Used With Mount Pin 1 superseded
17 M899551T1   LEVER HANDLE Black - Design II - Used Without Mount Pin 1 disc.
18 MR22602T   WASHER (.390 x .630 x .022) Nylon - Design I And Design II 2 disc.
19 MBK04601T   E RING - Design I 4
19 MBK04601T   E RING - Design II 2
2 M879332T DECAL Top Cover - MotorGuide Brute 50 Wireless 12 Volt 1 disc.
2 M879333T DECAL Top Cover - MotorGuide Brute 70 Wireless 24 Volt 1 disc.
20 MVP17102T   SPRING Left Hand - Black - Design I And Design II 1 disc.
21 MVP17103T   SPRING Right Hand - Black - Design I And Design II 1 disc.
22 MVP10601T   PIN Latch/Lever Handle - Design I And Design II 1 disc.
23 MVP10605T   PIN Lever Handle/Mount - Design I 1 disc.
24 MCV39701T LOWER UNIT ASSEMBLY Complete (55# - Variable) Marked MCV397012 - 12 Volt Brute 50 Model - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown 1 superseded
24 MSV39701T LOWER UNIT ASSEMBLY Complete (75# - Variable) Marked MSV397012 - 24 Volt Brute 70 Model - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown 1 superseded
25 MAR17501T WASHER (.385 x .885 x .095) Nylon 1 disc.
26 MVP12401T PROP KIT 2 Blade Nylon - 3.5 Inch 1 disc.
27 MAR09902T   PROP NUT 1
28 MBR10202T   PIN Prop Drive (.156 x 1.00) 1
3 8M4000582 COVER KIT Bottom - Black 1
4 MVP13401T   SCREW (.250-20 x 2.00) Stainless Steel 1 disc.
5 MXT09802T   LOCKNUT (.250-20) Stainless Steel 1 disc.
6 MAT14101T SCREW (#8 x .625) 6 disc.
7 MBF02901T CONNECTOR Pigtail (#18-8) 2 disc.
8 MVP32801T CABLE ASSEMBLY Coiled 1
9 MVP13301T SCREW (#10-24 x .750) Stainless Steel 2 disc.
