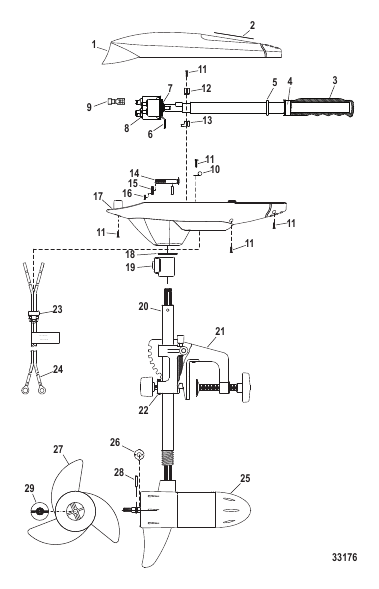

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
M899384T |
COVER Top Marked MET05317J
|
1 |
disc.
|
| 10 |
MKP03601 |
P CLAMP (.250)
|
1 |
superseded
|
| 11 |
MAT14101T |
SCREW (#8 x .625)
|
8 |
disc.
|
| 12 |
MAR03604T |
RETAINER Handle Without Stop
|
1 |
|
| 13 |
MAR03605T |
RETAINER Handle With Stop
|
1 |
disc.
|
| 14 |
MTT13402T |
BOLT (.250-20 x 1.75)
|
1 |
disc.
|
| 15 |
MTT17108 |
WASHER Curved
|
2 |
superseded
|
| 16 |
MXT09802 |
LOCKNUT (.250-20) Stainless Steel
|
1 |
superseded
|
| 17 |
M899374T |
COVER Bottom Marked MET004197
|
1 |
|
| 18 |
MAT07901T |
SEAL Column
|
1 |
disc.
|
| 19 |
MTM15804T |
COLLAR ASSEMBLY Depth Adjust - Black - 5 Lobe Style
|
1 |
|
| 2 |
M879335T |
DECAL Top Cover MotorGuide Brute 46 Certified Tough 12 Volt
|
1 |
disc.
|
| 20 |
MFR04934T |
COLUMN (36.00 Inches) Stainless Steel
|
1 |
disc.
|
| 21 |
MCK30007S |
MOUNT ASSEMBLY Complete Model 03 - Marked MCK300075 - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
disc.
|
| 22 |
MCK10004 |
FRICTION STRIP Plastic
|
1 |
superseded
|
| 23 |
MGR01901T |
BUSHING Battery Cable
|
1 |
disc.
|
| 24 |
MTT32809T |
CABLE ASSEMBLY Battery Marked MTT328092 - With Two Terminals MBR16106
|
1 |
disc.
|
| 25 |
M899422T |
LOWER UNIT ASSEMBLY Complete (46# - 5/2 Speed) Marked MET397035 - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
disc.
|
| 26 |
MAR17501T |
WASHER (.385 x .885 x .095) Nylon
|
1 |
disc.
|
| 27 |
M889287T |
PROPELLER KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub
|
1 |
disc.
|
| 27 |
MAF12415T |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub
|
1 |
|
| 28 |
MBR10202T |
PIN Prop Drive (.156 x 1.00)
|
1 |
|
| 29 |
MAR09902T |
PROP NUT
|
1 |
|
| 3 |
MBU37209T |
HANDLE ASSEMBLY Extending Style
|
1 |
disc.
|
| 4 |
MBT05908T |
DECAL Indicator
|
1 |
disc.
|
| 5 |
MBT07901T |
SEAL Felt
|
1 |
disc.
|
| 6 |
MAT15507T |
BRACKET Switch
|
1 |
disc.
|
| 7 |
MAT09801 |
PAL NUT
|
1 |
superseded
|
| 8 |
MKT15002T |
SWITCH ASSEMBLY Rotary Without Lead Wires
|
1 |
disc.
|
| 9 |
MBR16106T |
TERMINAL Quick Connect
|
4 |
disc.
|
