| # | Part Number | Description | Qty | Status |
|---|
| - |
M899797T |

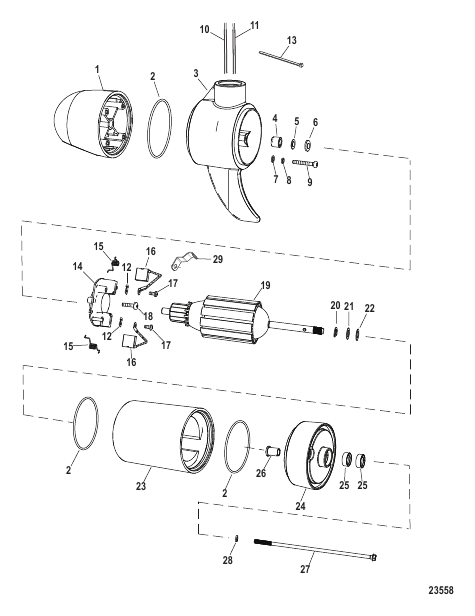

LOWER UNIT ASSEMBLY Complete (55# - Variable) 12 Volt SW55 White Models - Marked 8M4000055
|
1 |
superseded
|
| - |
8M4000142 |
REPAIR KIT Lower Unit Assembly - NOTE: See Repair Kit - Lower Unit Assembly Section For Complete List Of Component Parts In Kit
|
1 |
disc.
|
| 1 |
M899805T |
NOSE CONE White
|
1 |
disc.
|
| 10 |
MXC323022 |
WIRE ASSEMBLY (6.330 Feet) Red
|
1 |
superseded
|
| 11 |
M889265T |
WIRE ASSEMBLY (6.330 Feet) White
|
1 |
disc.
|
| 12 |
NSS |
NOT SOLD SEPARATE #8 Ring Terminal
|
2 |
|
| 13 |
MR22001 |
TIE STRAP (4.00 Inches)
|
1 |
superseded
|
| 14 |
M899733T |
HOLDER Brushes
|
1 |
disc.
|
| 15 |
MBV21401T |
SPRING Brush
|
2 |
disc.
|
| 16 |
M889264T |
BRUSH ASSEMBLY
|
2 |
|
| 17 |
MBV13301T |
SCREW (#8-32 x .375) With Patch - Stainless Steel
|
2 |
disc.
|
| 18 |
MBV13302T |
SCREW (#10-32 x .750) Self Tap
|
2 |
disc.
|
| 19 |
M889267T |
ARMATURE
|
1 |
disc.
|
| 2 |
MBV21701T |
O-RING (3.237 x .103) Red Teflon Coated
|
3 |
disc.
|
| 20 |
MR21902 |
E RING
|
1 |
superseded
|
| 21 |
MR22701 |
THRUST WASHER (.380 x .660 x .025)
|
1 |
superseded
|
| 22 |
MR22601 |
WASHER (.378 x .655 x .026) Nylatron
|
1 |
superseded
|
| 23 |
M899807T |
HOUSING ASSEMBLY White - With Magnets
|
1 |
disc.
|
| 24 |
M899808T |
DRIVE CAP ASSEMBLY White
|
1 |
disc.
|
| 25 |
MR22301 |
SEAL Armature Shaft
|
2 |
superseded
|
| 26 |
MR20605T |
BEARING Rear
|
1 |
disc.
|
| 27 |
M899809T |
THRU BOLT ASSEMBLY
|
2 |
disc.
|
| 28 |
MV22201T |
SEAL Static
|
2 |
|
| 29 |
8M4002419 |
GROUND STRAP
|
1 |
disc.
|
| 3 |
M899806T |
COMM CAP ASSEMBLY White
|
1 |
disc.
|
| 4 |
MR20604 |
BEARING (.500) Sintered Bronze
|
1 |
superseded
|
| 5 |
MR22401B |
THRUST DISK Plated
|
1 |
superseded
|
| 6 |
MR22501 |
THRUST DISK Nylatron
|
1 |
superseded
|
| 7 |
MR22202 |
SEAL Static - Teflon Coated
|
4 |
superseded
|
| 8 |
MR21602 |
WASHER (.204 x .375 x .048) Stainless Steel
|
4 |
superseded
|
| 9 |
MXC22901 |
SCREW (#10-10 x 1.550) Torx Head
|
4 |
superseded
|
