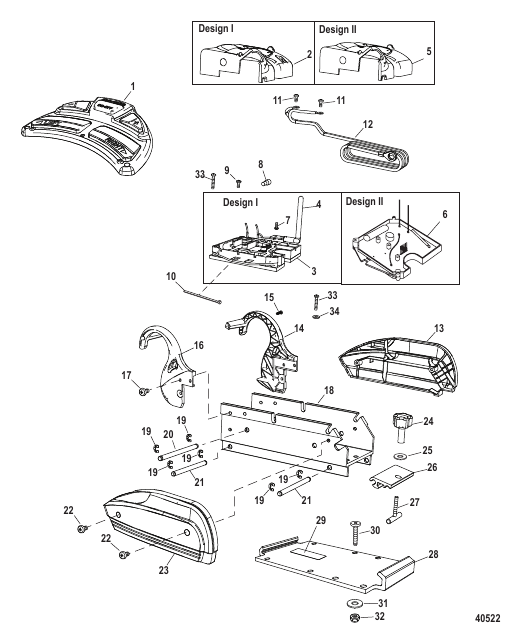

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
M899417T |
FOOT PEDAL ASSEMBLY Complete - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 10 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 11 |
MBV13301T |
SCREW (#8-32 x .375) With Patch - Stainless Steel
|
2 |
disc.
|
| 12 |
MVP32802 |
CABLE ASSEMBLY Battery
|
1 |
superseded
|
| 13 |
M899800T |
DECKET Right - White
|
1 |
disc.
|
| 14 |
M899865T |
CRADLE Right
|
1 |
|
| 15 |
MAT14101 |
SCREW (#8 x .625) Stainless Steel
|
1 |
superseded
|
| 16 |
M899864T |
CRADLE Left
|
1 |
disc.
|
| 17 |
MVP13404T |
SCREW (.250-20 x .500) Stainless Steel
|
4 |
|
| 18 |
M899801T |
BASE Mount
|
1 |
disc.
|
| 19 |
MBK04601 |
E RING
|
6 |
superseded
|
| 2 |
M899863T |
COVER ASSEMBLY Battery Meter - With Ribbon Cable (Design I) (Cover with antenna hole)
|
1 |
disc.
|
| 20 |
MVP10606T |
PIN (5.400 Inches)
|
1 |
disc.
|
| 21 |
MVP10607T |
PIN (4.820 Inches)
|
2 |
disc.
|
| 22 |
MVP13404T |
SCREW (.250-20 x .500) Stainless Steel
|
4 |
|
| 23 |
M899802T |
DECKET Left - White
|
1 |
disc.
|
| 24 |
MVP08201 |
KNOB ASSEMBLY
|
1 |
superseded
|
| 25 |
MVP17105T |
WASHER (.286 x .630 x .072) Stainless Steel
|
1 |
disc.
|
| 26 |
M899803T |
CAM Latch
|
1 |
disc.
|
| 27 |
MVP13303T |
T BOLT (.250-20) Stainless Steel
|
1 |
disc.
|
| 28 |
M899804T |
PLATE KIT Mounting
|
1 |
superseded
|
| 29 |
NSS |
NOT SOLD SEPARATE Information Decal
|
1 |
|
| 3 |
M899694T |
CONTROLLER ASSEMBLY (Design I) (External Antenna)
|
1 |
disc.
|
| 30 |
MVP13304T |
SCREW (.312-18 x 2.500) Stainless Steel
|
4 |
disc.
|
| 31 |
MVP17107T |
WASHER (.344 x 1.250 x .040) Stainless Steel
|
4 |
disc.
|
| 32 |
MVP09802T |
LOCKNUT (.312-18) Stainless Steel
|
4 |
superseded
|
| 33 |
MVP13402T |
SCREW (#8-32 x 1.00) With Patch - Stainless Steel
|
3 |
disc.
|
| 34 |
28001 |
WASHER (.188 x .438 x .049)
|
1 |
disc.
|
| 4 |
MVP02104T |
ANTENNA ASSEMBLY (Design I)
|
1 |
disc.
|
| 5 |
87919409T |
COVER ASSEMBLY Battery Meter (Design II) (Cover without antenna hole)
|
1 |
disc.
|
| 6 |
87919411T |
CONTROLLER ASSEMBLY (Design II) (Internal Antenna)
|
1 |
disc.
|
| 7 |
MVP13302T |
SCREW (#6-19 x .375) Stainless Steel Antenna Mount (Design I)
|
1 |
disc.
|
| 8 |
MBF02902 |
CONNECTOR Pigtail (#22-14)
|
2 |
superseded
|
| 9 |
MBV13301T |
SCREW (#8-32 x .375) With Patch - Stainless Steel
|
1 |
disc.
|
