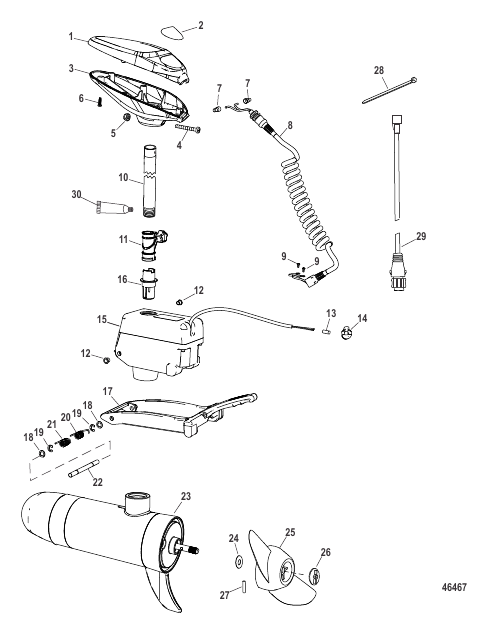

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
MVP05301 |
COVER Top - Black
|
1 |
superseded
|
| 10 |
MVP04902T |
COLUMN (48.00 Inches) Black Composite
|
1 |
superseded
|
| 10 |
MVP04903T |
COLUMN (54.00 Inches) Black Composite
|
1 |
superseded
|
| 10 |
MVP04904T |
COLUMN (60.00 Inches) Black Composite
|
1 |
superseded
|
| 11 |
M899552T1 |
COLLAR ASSEMBLY Depth
|
1 |
|
| 12 |
MFK02101T |
BUSHING Nyliner (.375)
|
2 |
superseded
|
| 13 |
M899757T |
FERRITE RING - 24 Volt Models
|
2 |
superseded
|
| 14 |
MVP01901T |
GROMMET Steering Cable
|
1 |
|
| 15 |
M879306T |
TRANSMISSION ASSEMBLY Black Service Complete
|
1 |
disc.
|
| 16 |
NSS |
NOT SOLD SEPARATE Column Drive Tube
|
1 |
|
| 17 |
M899551T1 |
LEVER HANDLE Black
|
1 |
disc.
|
| 18 |
MR22602T |
WASHER (.390 x .630 x .022) Nylon
|
2 |
disc.
|
| 19 |
MBK04601 |
E RING
|
2 |
superseded
|
| 2 |
M899668T |
DECAL Top Cover - MotorGuide W55 12 Volt Wireless
|
1 |
disc.
|
| 2 |
M899669T |
DECAL Top Cover - MotorGuide W75 24 Volt Wireless
|
1 |
disc.
|
| 20 |
MVP17102T |
SPRING Left Hand - Black
|
1 |
disc.
|
| 21 |
MVP17103T |
SPRING Right Hand - Black
|
1 |
disc.
|
| 22 |
MVP10601T |
PIN Latch/Lever Handle
|
1 |
disc.
|
| 23 |
8M0052757 |
LOWER UNIT ASSEMBLY Stamped 2539, Black, 55 Pound Thrust, Sonar
|
1 |
superseded
|
| 23 |
8M0052758 |
LOWER UNIT ASSEMBLY Stamped 2538, Black, 75 Pound Thrust, Sonar
|
1 |
disc.
|
| 24 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 25 |
MVP12401T |
PROP KIT 2 Blade Nylon - 3.5 Inch
|
1 |
disc.
|
| 26 |
MAR09902 |
PROP NUT
|
1 |
superseded
|
| 27 |
MBR10202 |
PIN Prop Drive (.156 x 1.00)
|
1 |
superseded
|
| 28 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 29 |
879364T03 |
CABLE ASSEMBLY Transducer
|
1 |
|
| 3 |
8M4000582 |
COVER KIT Bottom - Black Includes Screw And Lock Nut
|
1 |
|
| 30 |
8M0119628 |
HYSOL EPOXY ADHESIVE 50ml Use With Composite Shaft Only
|
1 |
|
| 4 |
MVP13401T |
SCREW (.250-20 x 2.00) Stainless Steel
|
1 |
disc.
|
| 5 |
MXT09802 |
LOCKNUT (.250-20) Stainless Steel
|
1 |
superseded
|
| 6 |
MAT14101 |
SCREW (#8 x .625) Stainless Steel
|
6 |
superseded
|
| 7 |
MBF02901 |
CONNECTOR Pigtail (#18-8)
|
2 |
superseded
|
| 8 |
MVP32801 |
CABLE ASSEMBLY Coiled
|
1 |
superseded
|
| 9 |
MVP13301T |
SCREW (#10-24 x .750) Stainless Steel
|
2 |
disc.
|
