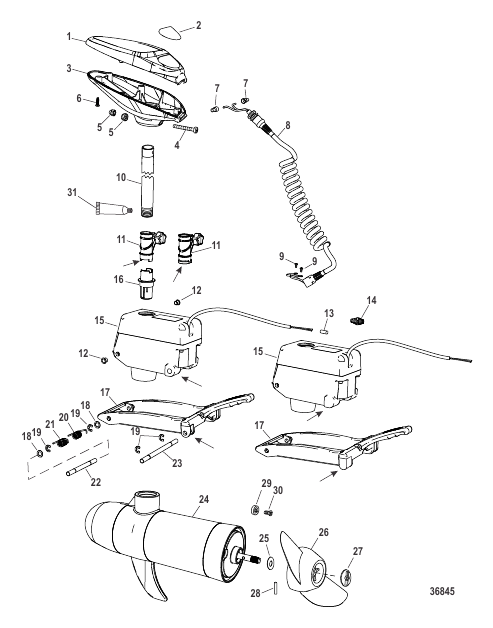

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
M899786T |
COVER Top - White
|
1 |
superseded
|
| 10 |
M899790T |
COLUMN (48.00 Inches) White Composite
|
1 |
superseded
|
| 10 |
M899791T |
COLUMN (54.00 Inches) White Composite
|
1 |
superseded
|
| 10 |
M899792T |
COLUMN (60.00 Inches) White Composite
|
1 |
superseded
|
| 11 |
MVP158012 |
COLLAR ASSEMBLY Depth - Design I - No Lip On Bottom
|
1 |
superseded
|
| 11 |
M899552T1 |
COLLAR ASSEMBLY Depth - Design II - Outer Lip On Bottom
|
1 |
|
| 12 |
MFK02101T |
BUSHING Nyliner (.375)
|
2 |
superseded
|
| 13 |
M899757T |
FERRITE RING - 24 Volt Models
|
2 |
superseded
|
| 14 |
M879343T |
GROMMET Transmission Cable To Battery Indicator Cover [9B936634] & Up
|
1 |
disc.
|
| 15 |
M899793T |
TRANSMISSION ASSEMBLY White Service Complete - Design I - Lever Handle With Mount Pin
|
1 |
superseded
|
| 15 |
M899793T1 |
TRANSMISSION ASSEMBLY White Service Complete - Design II - Lever Handle Without Mount Pin
|
1 |
disc.
|
| 16 |
NSS |
NOT SOLD SEPARATE Column Drive Tube - Design I And Design II
|
1 |
|
| 17 |
M899794T |
LEVER HANDLE White - Design I - Used With Mount Pin
|
1 |
superseded
|
| 17 |
M899794T1 |
LEVER HANDLE White - Design II - Used Without Mount Pin
|
1 |
disc.
|
| 18 |
MR22602T |
WASHER (.390 x .630 x .022) Nylon - Design I And Design II
|
2 |
disc.
|
| 19 |
MBK04601 |
E RING - Design I
|
4 |
superseded
|
| 19 |
MBK04601 |
E RING - Design II
|
2 |
superseded
|
| 2 |
M899668T |
DECAL Top Cover - MotorGuide W55 12 Volt Wireless
|
1 |
disc.
|
| 2 |
M899669T |
DECAL Top Cover - MotorGuide W75 24 Volt Wireless
|
1 |
disc.
|
| 20 |
M899795T |
SPRING Left Hand - White - Design I And Design II
|
1 |
disc.
|
| 21 |
M899796T |
SPRING Right Hand - White - Design I And Design II
|
1 |
disc.
|
| 22 |
MVP10601T |
PIN Latch/Lever Handle - Design I And Design II
|
1 |
disc.
|
| 23 |
MVP10605T |
PIN Lever Handle/Mount - Design I
|
1 |
disc.
|
| 24 |
M899797T |
LOWER UNIT ASSEMBLY Complete (55# - Variable) Marked 8M4000055 - 12 Volt SW55 Models - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 24 |
M899798T |
LOWER UNIT ASSEMBLY Complete (75# - Variable) Marked 8M4000054 - 24 Volt SW75 Models - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 25 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 26 |
MVP12401T |
PROP KIT 2 Blade Nylon - 3.5 Inch
|
1 |
disc.
|
| 27 |
MAR09902 |
PROP NUT
|
1 |
superseded
|
| 28 |
MBR10202 |
PIN Prop Drive (.156 x 1.00)
|
1 |
superseded
|
| 29 |
MAR00202T |
ANODE Zinc - Design I
|
1 |
superseded
|
| 29 |
M879341T |
ANODE Aluminum - Design II
|
1 |
disc.
|
| 3 |
M899789T |
COVER Bottom - White - NOTE: Design I - Used With Acorn Nut MVP09801T
|
1 |
superseded
|
| 3 |
8M4000581 |
COVER KIT Bottom - White Includes Screw And Lock Nut - NOTE: Design II - Used With Lock Nut 11-MXT09802
|
1 |
disc.
|
| 30 |
M899799T |
SCREW (.250-20 x .625) Flat Head - Stainless Steel
|
1 |
disc.
|
| 31 |
8M0119628 |
HYSOL EPOXY ADHESIVE 50ml Use With Composite Shaft Only
|
1 |
|
| 4 |
MVP13401T |
SCREW (.250-20 x 2.00) Stainless Steel
|
1 |
disc.
|
| 5 |
MVP09801T |
NUT Acorn (.250-20) Stainless Steel - NOTE: Design I - Used With Bottom Cover M899789T
|
1 |
disc.
|
| 5 |
MXT09802 |
LOCKNUT (.250-20) Stainless Steel - NOTE: Design II - Used With Bottom Cover 8M4000581
|
1 |
superseded
|
| 6 |
MAT14101 |
SCREW (#8 x .625) Stainless Steel
|
6 |
superseded
|
| 7 |
MBF02901 |
CONNECTOR Pigtail (#18-8)
|
2 |
superseded
|
| 8 |
MVP32801 |
CABLE ASSEMBLY Coiled
|
1 |
superseded
|
| 9 |
MVP13301T |
SCREW (#10-24 x .750) Stainless Steel
|
2 |
disc.
|
