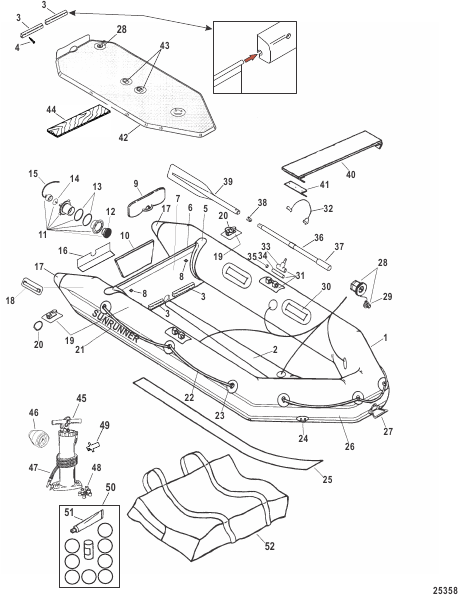

| # | Part Number | Description | Qty | Status |
|---|
| - |
896317 |
REMOVER/INSTALLER TOOL Air Valve - Plastic
|
1 |
|
| 1 |
898228001 |
SKIN ASSEMBLY PVC (8 Feet 9 Inches) - 270 Model
|
1 |
superseded
|
| 10 |
8113363 |
PLATE Transom - Dark Gray Wood
|
1 |
disc.
|
| 11 |
830222A3 |
PLUG ASSEMBLY Drain - Light Gray (24 mm)
|
1 |
|
| 12 |
881829 |
FILTER/SCREEN Drain Plug - Light Gray
|
1 |
|
| 13 |
830221 |
GASKET Drain Plug
|
2 |
disc.
|
| 14 |
824409 |
CHECK VALVE Drain Plug
|
1 |
|
| 15 |
8097801 |
CAP/STRING AND CLIP Drain Plug - Light Gray
|
1 |
|
| 16 |
899878 |
PROTECTOR Transom Bottom - PVC Light Gray
|
1 |
disc.
|
| 17 |
899877005 |
END CONE CAP PVC - White With Flat End (120 mm x H96 mm)
|
1 |
disc.
|
| 18 |
8590071 |
HANDLE/LIFTING Side/Bow - PVC Dark Gray
|
2 |
|
| 19 |
859006003 |
RETAINER Oar And Rope Holder - PVC Dark Gray
|
2 |
disc.
|
| 2 |
8809671 |
KEEL PVC (L175.5 cm) Light Gray
|
1 |
superseded
|
| 20 |
878052 |
BUNGEE STRAP White
|
2 |
|
| 21 |
898228 |
LOGO Side - Sunrunner - Navy Blue/White
|
2 |
disc.
|
| 22 |
8097782 |
ROPE (12.00 Feet) Navy Blue
|
1 |
|
| 23 |
8590081 |
HOLDER Rope - PVC Dark Gray
|
6 |
disc.
|
| 24 |
8113092 |
D RING Large - Stainless Steel On White PVC Fabric
|
2 |
|
| 25 |
8244121 |
RUBSTRAKE Bottom - PVC Light Gray
|
1 |
disc.
|
| 26 |
8085759 |
RUBSTRAKE Side - PVC - Two Navy Blue Lines On Dark Gray
|
2 |
|
| 27 |
809777 |
HANDLE/LIFTING Bow - Dark Gray Nylon On White PVC Fabric
|
1 |
disc.
|
| 28 |
809887 |
VALVE ASSEMBLY Air - 8 Slots - Gray
|
5 |
disc.
|
| 29 |
8096961 |
CAP ASSEMBLY Air Valve - Gray
|
5 |
disc.
|
| 3 |
896285 |
RETAINER (L20 cm) Light Gray
|
2 |
superseded
|
| 30 |
8187014 |
WEBBING Seat - Dark Gray Web/PVC White Fabric
|
2 |
|
| 31 |
8113112 |
OARLOCK ASSEMBLY PVC Dark Gray
|
2 |
disc.
|
| 32 |
8113292 |
CAP/STRING AND CLIP Oarlock - Dark Gray
|
2 |
superseded
|
| 33 |
8244102 |
HOLDER Oarlock - PVC Dark Gray
|
2 |
|
| 34 |
824411 |
PIN Oarlock
|
2 |
|
| 35 |
8097792 |
CAP Oarlock - PVC Dark Gray
|
2 |
|
| 36 |
885160 |
OAR HANDLE ASSEMBLY (110 cm) Dark Gray - Center Hole Location
|
2 |
|
| 37 |
8118362 |
GRIP Oar Handle - Dark Gray
|
2 |
|
| 38 |
824417 |
CLIP Oar Handle
|
2 |
|
| 39 |
885157 |
OAR BLADE Dark Gray - M Logo
|
2 |
|
| 4 |
ORDLOCAL |
ORDER PART LOCAL Screw (M8 x 38 Stainless Steel Flat Head)
|
4 |
|
| 40 |
811307T04 |
SEAT ASSEMBLY Wood - Dark Gray (L85 cm x W20 cm x T22 mm)
|
1 |
|
| 41 |
8113131 |
BRACKET Seat - Light Gray Plastic
|
2 |
|
| 42 |
896282A02 |
AIR DECK ASSEMBLY PVC (L184.5 cm) Light Gray - 270 Model
|
1 |
superseded
|
| 43 |
8113101 |
D RING Small - Stainless Steel On Light Gray PVC Fabric
|
2 |
superseded
|
| 44 |
8528754 |
THRUSTBOARD Wood (83 cm x 20 cm x 12 mm) Dark Gray
|
1 |
superseded
|
| 45 |
889345Q01 |
PUMP ASSEMBLY Air - Double Action
|
1 |
|
| 46 |
889346 |
GAUGE Air Pump
|
1 |
|
| 47 |
889348 |
HOSE Air Pump
|
1 |
|
| 48 |
889347 |
ADAPTER SET Air Pump Hose
|
1 |
|
| 49 |
8M0150135 |
ADAPTER Air Pump
|
1 |
|
| 5 |
8097822 |
HOLDER Transom - PVC White (T24 mm)
|
2 |
|
| 50 |
885161 |
REPAIR KIT PVC - Light Gray/White .08 Fabric
|
1 |
superseded
|
| 51 |
808648 |
CEMENT PVC (30 ml)
|
1 |
|
| 52 |
811327T2 |
BAG Storage/Carrying - Flap Style - M Logo
|
1 |
|
| 6 |
8554034 |
CAP Transom Cover (W24 mm x 90 cm) PVC Dark Gray
|
1 |
disc.
|
| 7 |
827686T05 |
TRANSOM ASSEMBLY ABS Coated - Dark Gray (T24 mm)
|
1 |
disc.
|
| 8 |
898172 |
TOWING HOLE SET (13 mm x T24 mm) Stainless Steel
|
2 |
disc.
|
| 9 |
811317 |
PAD Transom - Aluminum
|
1 |
|
