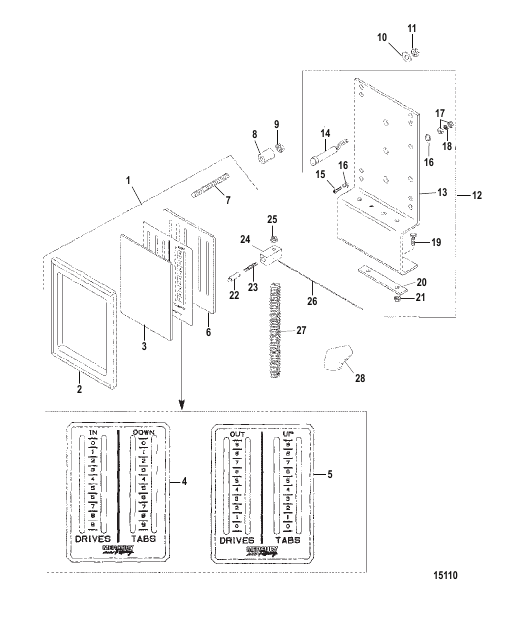

| # | Part Number | Description | Qty | Status |
|---|
| - |
844944A1 |
INDICATOR ASSEMBLY Four Cable Top Entry (Black)
|
1 |
disc.
|
| - |
844944A2 |
INDICATOR ASSEMBLY Four Cable Top Entry (White)
|
1 |
superseded
|
| - |
844944A6 |
INDICATOR ASSEMBLY Four Cable Top Entry (White/White)
|
1 |
disc.
|
| - |
844945A1 |
INDICATOR ASSEMBLY Four Cable Bottom Entry (Black)
|
1 |
disc.
|
| - |
844945A2 |
INDICATOR ASSEMBLY Four Cable Bottom Entry (White)
|
1 |
superseded
|
| - |
844945A6 |
INDICATOR ASSEMBLY Four Cable Bottom Entry (White/White)
|
1 |
disc.
|
| 1 |
845070A1 |
BEZEL ASSEMBLY Top Entry (Black)
|
1 |
disc.
|
| 1 |
845070A2 |
BEZEL ASSEMBLY Top Entry (White)
|
1 |
disc.
|
| 1 |
845070A3 |
BEZEL ASSEMBLY Top Entry (White/White)
|
1 |
disc.
|
| 1 |
845071A1 |
BEZEL ASSEMBLY Bottom Entry (Black)
|
1 |
disc.
|
| 1 |
845071A2 |
BEZEL ASSEMBLY Bottom Entry (White)
|
1 |
disc.
|
| 1 |
845071A3 |
BEZEL ASSEMBLY Bottom Entry (White/White)
|
1 |
disc.
|
| 10 |
35044 |
WASHER (.281 x .625 x .065) Stainless Steel
|
4 |
|
| 11 |
814101 |
NUT (.250-20) Stainless Steel
|
4 |
superseded
|
| 12 |
847338A1 |
BRACKET ASSEMBLY
|
1 |
disc.
|
| 13 |
847338 |
BRACKET
|
1 |
|
| 14 |
845304 |
LIGHT ASSEMBLY
|
3 |
superseded
|
| 15 |
845301 |
SCREW (#8-32 x .750) Brass
|
2 |
|
| 16 |
847341 |
WASHER Nylon
|
4 |
|
| 17 |
26419 |
NUT (#8-32) Brass
|
4 |
|
| 18 |
845302 |
LOCKWASHER Internal (#8)
|
2 |
|
| 19 |
32228 |
SCREW (#10-32 x .625)
|
2 |
|
| 2 |
8450101 |
BEZEL (Black)
|
1 |
superseded
|
| 2 |
8450102 |
BEZEL (White)
|
1 |
disc.
|
| 20 |
845470 |
BAR Cable Lock
|
1 |
|
| 21 |
34059 |
NUT (#10-32)
|
2 |
superseded
|
| 22 |
845014 |
POINTER (Short .73) (White)
|
4 |
|
| 22 |
849584 |
POINTER (Short .73) (Red)
|
4 |
|
| 22 |
845150 |
POINTER (Long 1.17) (White)
|
4 |
|
| 22 |
849583 |
POINTER (Long 1.17) (Red)
|
4 |
disc.
|
| 23 |
845016 |
SPRING (1.00 Inch)
|
4 |
|
| 24 |
845015 |
SOCKET Pointer Support (Short-1.09)
|
4 |
|
| 24 |
846907 |
SOCKET Pointer Support (Long-1.34)
|
OPT |
|
| 25 |
34059 |
NUT (#10-32)
|
4 |
superseded
|
| 26 |
847356 |
WIRE (6.00 Inches)
|
1 |
|
| 27 |
845921 |
SPRING (5.750 Inches)
|
4 |
|
| 28 |
843809 |
BOOT Terminal
|
1 |
|
| 3 |
845018 |
LENS View
|
1 |
disc.
|
| 4 |
844933 |
LENS (2 Drives and 2 Tabs/Drives Out-Tabs Down) (Top) (White Translucent Letters and Dark Gray Background)
|
1 |
superseded
|
| 4 |
849517 |
LENS (2 Drives and 2 Tabs/Drives Out-Tabs Down) (Top) (Black Letters and White Translucent Background)
|
1 |
superseded
|
| 5 |
844932 |
LENS (2 Drives and 2 Tabs/Drives In-Tabs Up) (Bottom) (White Translucent Letters and Dark Gray Background)
|
1 |
superseded
|
| 5 |
849516 |
LENS (2 Drives and 2 Tabs/Drives In-Tabs Up) (Bottom) (Black Letters and White Translucent Background)
|
1 |
superseded
|
| 6 |
845042 |
PLATE Pointer Support
|
1 |
disc.
|
| 7 |
845019 |
STUD (.250-20 x 2.750)
|
4 |
disc.
|
| 8 |
847340 |
SPACER
|
4 |
|
| 9 |
64015 |
NUT (.250-20)
|
4 |
|
