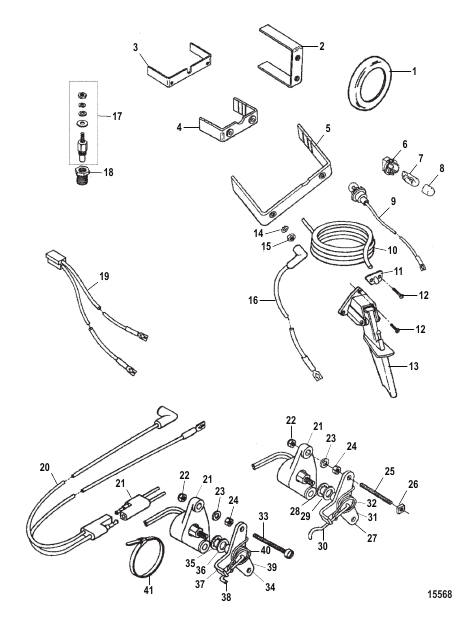

Mounting Hardware (Force Series)

Parts (45)

#Part NumberDescriptionQtyStatus
1 817311 BEZEL Tachometer 1 disc.
10 F17956 TUBING (22.00 Feet Bulk) Speedometer 1 disc.
11 F17963 PLATE Hose Support 1 disc.
12 F17948 HARDWARE PACKAGE Speedometer 1 disc.
13 F17955 PITOT TUBE Speedometer 1 disc.
14 825361 LOCKWASHER Star (#8) AR disc.
14 69432 LOCKWASHER External (#10) AR
15 26419 NUT (#8-32) Brass (Brass) AR
15 45076 NUT (#10-32) Brass (Brass) AR
16 F17949 WIRE LEAD (Black) 1 disc.
16 F17951 WIRE LEAD (Red/Blue) 1 disc.
16 F17950 WIRE LEAD (Orange) 1 disc.
17 FA299791 SENDING ASSEMBLY Temperature Temperature 1 disc.
18 F17907 BUSHING Reducing 1 disc.
19 F17809 WIRE Hourmeter 1 disc.
2 F17808 BRACKET Hourmeter 1 disc.
20 F455843-1 CABLE ASSEMBLY 1 disc.
21 FA455791 SENDER ASSEMBLY 1 disc.
22 814101 NUT (.250-20) Stainless Steel 2 superseded
23 71055 WASHER 2
24 64015 NUT (.250-20) 2
25 F448210 STUD 2 disc.
26 F1608 NUT (.250-20) 2 disc.
27 FA449505 STOP ASSEMBLY (85/150 Trim) 1 disc.
28 F455208   RING Retaining 1 disc.
29 F413415   WASHER Phenolic 1 disc.
3 817308 BRACKET Tachometer 1 disc.
30 F449316   FOLLOWER 1 disc.
31 F455895   SPRING 1 disc.
32 F455508   RETAINER 1 disc.
33 F1072 SCREW (.250-20 x 1.75) Fill Head 2 disc.
34 850213A2 STOP ASSEMBLY (35/70 Trim) 1 disc.
35 F455208   RING Retaining 1 disc.
36 F413415   WASHER Phenolic 1 disc.
37 F455505   STOP 1 disc.
38 850213   FOLLOWER 1 disc.
39 F455895   SPRING 1 disc.
4 F17957 BRACKET Voltmeter, Temperature 1 disc.
40 F455508   RETAINER 1 disc.
41 816311 TIE STRAP (8.00 Inches) AR superseded
5 F17946 BRACKET Speedometer 1 disc.
6 79888 SOCKET Light Bulb 1
7 72729 LIGHT BULB Wedge Base (14V - 1.9W) 1
8 817310 COVER Green Tachometer 1 disc.
9 F17810 WIRE Light Assembly 1 disc.
