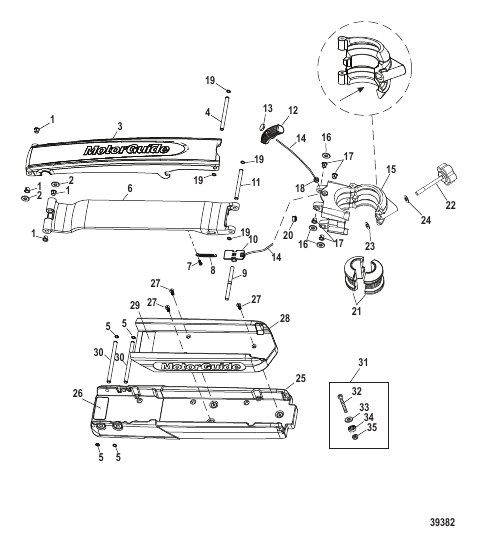

Gator 360 Flex II Mount (Black) (DESIGN I) (8M4000308)

Parts (36)

#Part NumberDescriptionQtyStatus
- 8M4000308 MOUNT ASSEMBLY Black - Complete 1 superseded
1 MFK02101T   BUSHING Nyliner (.375) 4 superseded
10 MBK01301T   LOCKSLIDE 1 disc.
11 MGX10202T   PIN Lower Arm 1 disc.
12 MAK372012   HANDLE/BUTTON KIT 1
13 NSS     NOT SOLD SEPARATE Rope Handle Button 1
14 MDK04301T   ROPE (40.00 Inches) Black 1 superseded
15 879330A52   DOOR ASSEMBLY Black 1 disc.
16 MR22601T     WASHER (.378 x .655 x .026) Nylatron 3
17 MFK02101T     BUSHING Nyliner (.375) 4 superseded
18 MBK02101T     BUSHING Rope 1 disc.
19 MRK04601T     RING Retaining (.375) 4 disc.
2 MRK17102T   WASHER (.385 x .880 x .062) Nylon 2 disc.
20 86226     NUT (.375-16) 1 superseded
21 8M4000305     SLEEVE KIT Isolator 1 disc.
22 M889285A2     KNOB KIT Five Lobe (3.425 Inches) 1 disc.
23 MRK17103T       WASHER (.335 x .630 x .060) Black Nylon 1 disc.
24 MXT01101T     WASHER (.400 x .810 x .060) Stainless Steel 1 disc.
25 MGX01001T   DECK CHANNEL Black 1 disc.
26 MGX01601T   REST Rubber 1 disc.
27 MGX13701T   SCREW (M6 x 20) 3 disc.
28 MBK03401T   DECKET Black 1 disc.
29 MGX05601T   DECAL Warning Label 1 disc.
3 879330T56   BOW ARM Black 1 disc.
30 MBK10201T   PIN Base Arm 2 disc.
31 8M4000873   MOUNTING KIT 1 disc.
32 MGX13501T     SCREW (.250-20 x 3.00) Mounting 4 disc.
33 MGX17102T     WASHER (.280 x 1.00 x .046) Stainless Steel Mounting 4 disc.
34 MGX17104T     WASHER (.290 x 1.060 x .250) Black Nylon Mounting 4 disc.
35 MXT09802T     LOCKNUT (.250-20) Stainless Steel Mounting 4 disc.
4 MGX10201T   PIN Upper Arm 1 disc.
5 MRK04601T   RING Retaining (.375) 4 disc.
6 MGX00901T   BOW ARM Black 1 disc.
7 MGX13302T   SCREW (M4 x 13) 1 disc.
8 MAK01403T   SPRING 1 disc.
9 MDK10601T   PIN Lockslide 1 disc.
