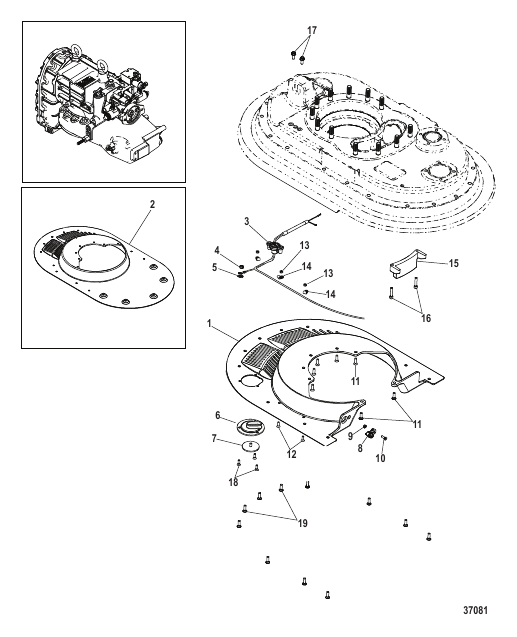

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
879148T54 |
COVER Trim Models
|
1 |
superseded
|
| 10 |
88190316 |
SCREW
|
1 |
|
| 11 |
8M0022382 |
SCREW (M6 x 20)
|
7 |
superseded
|
| 12 |
88190316 |
SCREW
|
2 |
|
| 13 |
400211 |
NUT (M5) Stainless Steel
|
3 |
|
| 14 |
648552 |
CLIP
|
3 |
|
| 15 |
8M0029047 |
BLOCK Filler
|
1 |
|
| 16 |
82494830 |
SCREW (M6 x 30)
|
2 |
|
| 17 |
1993716 |
SCREW (M6 x 16)
|
2 |
|
| 18 |
88190316 |
SCREW
|
3 |
|
| 19 |
8M0022382 |
SCREW (M6 x 20)
|
11 |
superseded
|
| 2 |
879148T23 |
COVER Non Trim Models
|
1 |
disc.
|
| 3 |
879148T24 |
ANODE ASSEMBLY
|
1 |
superseded
|
| 4 |
NSS |
NOT SOLD SEPARATE NUT
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE WASHER
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE PLATE
|
1 |
|
| 7 |
NSS |
NOT SOLD SEPARATE ANODE
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE REFRENCE ADAPTOR
|
1 |
|
| 9 |
400211 |
NUT (M5) Stainless Steel
|
1 |
|
