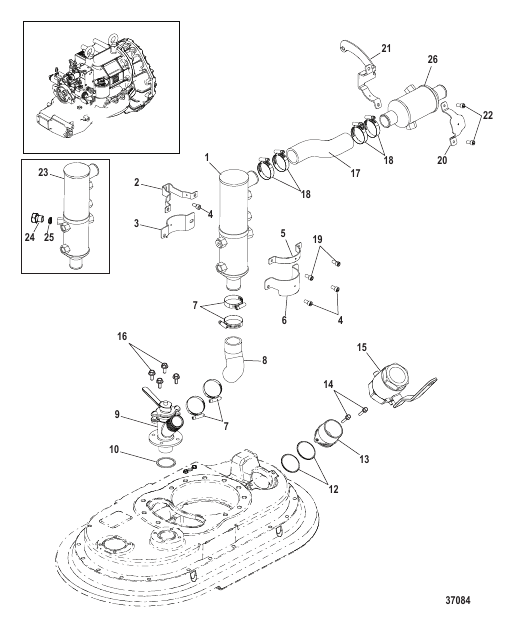

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
879148T59 |
COOLER Oil (Design II)(Use without Plug)
|
1 |
superseded
|
| 10 |
864295 |
O-RING (2.05 x .103)
|
1 |
|
| 11 |
8M0025635 |
PLUG
|
1 |
|
| 12 |
822276 |
O-RING (2.237 x .103)
|
2 |
|
| 13 |
8M0007539 |
ADAPTER
|
1 |
|
| 14 |
81893414 |
SCREW (M8 x 14)
|
2 |
|
| 15 |
8M0007542 |
SEACOCK
|
1 |
superseded
|
| 16 |
81893420 |
SCREW (M8 x 20)
|
4 |
|
| 17 |
8M0025147 |
HOSE
|
1 |
|
| 18 |
815504224 |
CLAMP Worm Gear
|
4 |
|
| 19 |
4000327 |
SCREW (M6 x 14)
|
2 |
|
| 2 |
8M0007715 |
BRACKET
|
1 |
|
| 20 |
8M0025162 |
CLAMP
|
1 |
|
| 21 |
8M0025161 |
BRACKET
|
1 |
superseded
|
| 22 |
4000327 |
SCREW (M6 x 14)
|
2 |
|
| 23 |
879148T35 |
COOLER Oil (Design I)(Use with Plug)
|
1 |
superseded
|
| 24 |
8591001 |
PLUG ASSEMBLY (M10 x 1.5) Brass (Use with Design I Oil Cooler)
|
1 |
|
| 25 |
627021 |
O-RING (.301 x .070) (Use with Design I Oil Cooler)
|
1 |
|
| 26 |
879148T42 |
COOLER
|
1 |
|
| 3 |
8M0007713 |
BRACKET
|
1 |
|
| 4 |
4008916 |
SCREW (M8 x 16) Stainless Steel
|
3 |
|
| 5 |
8M0007716 |
BRACKET
|
1 |
|
| 6 |
8M0007714 |
BRACKET
|
1 |
|
| 7 |
815504224 |
CLAMP Worm Gear
|
4 |
|
| 8 |
8M0007711 |
HOSE
|
1 |
|
| 9 |
8M0007538 |
SEACOCK DUMP
|
1 |
|
| NS |
8M0037747 |
DECAL No Step
|
1 |
|
