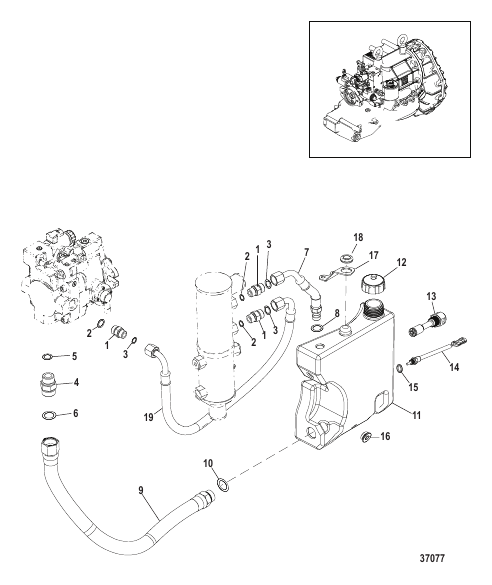

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0021781 |
FITTING
|
2 |
|
| 10 |
NSS |
NOT SOLD SEPARATE O-Ring
|
1 |
|
| 11 |
879148T28 |
TANK Hydraulic Oil Design I
|
1 |
disc.
|
| 11 |
879345T53 |
RESERVOIR TANK Design II
|
1 |
disc.
|
| 11 |
8M0072753 |
RESERVOIR ASSEMBLY Design III
|
1 |
superseded
|
| 12 |
8M0026333 |
CAP Design I
|
1 |
|
| 12 |
8M0041855 |
RESERVOIR CAP Design II
|
1 |
superseded
|
| 12 |
8M6001367 |
RESERVOIR CAP Design III
|
1 |
|
| 13 |
8M0026573 |
SWITCH
|
1 |
|
| 14 |
8M0010146 |
SENSOR
|
1 |
superseded
|
| 15 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 16 |
8M0022463 |
PLUG
|
1 |
|
| 17 |
8M0007661 |
BRACKET
|
1 |
|
| 18 |
8M0007663 |
GROMMET
|
1 |
|
| 19 |
8M0021789 |
HOSE
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE O-Ring
|
2 |
|
| 3 |
NSS |
NOT SOLD SEPARATE O-Ring
|
2 |
|
| 4 |
8M0033231 |
FITTING (Stainless Steel)
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE O-ring
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 7 |
8M0007669 |
HOSE
|
1 |
superseded
|
| 8 |
NSS |
NOT SOLD SEPARATE O-Ring
|
1 |
|
| 9 |
8M0007668 |
HOSE
|
1 |
|
| NS |
8M0037964 |
STRAINER Design III
|
1 |
|
