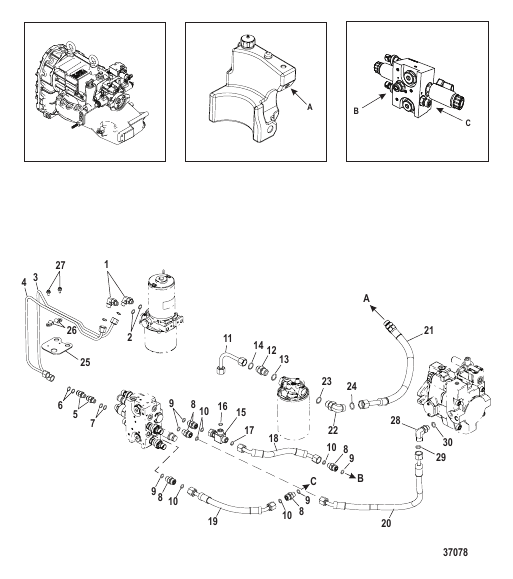

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0033228 |
FITTING (90 Degree)(Stainless Steel)
|
2 |
superseded
|
| 10 |
NSS |
NOT SOLD SEPARATE O-Ring
|
4 |
|
| 11 |
8M0007673 |
TUBE
|
1 |
|
| 12 |
8M0033230 |
FITTING (Stainless Steel)
|
1 |
|
| 13 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 14 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 15 |
8M0021783 |
FITTING
|
1 |
|
| 16 |
NSS |
NOT SOLD SEPARATE O-Ring
|
1 |
|
| 17 |
NSS |
NOT SOLD SEPARATE O-Ring
|
1 |
|
| 18 |
8M0007674 |
HOSE
|
1 |
disc.
|
| 19 |
8M0007672 |
HOSE
|
1 |
disc.
|
| 2 |
NSS |
NOT SOLD SEPARATE O-Ring
|
2 |
|
| 20 |
8M0007671 |
HOSE
|
1 |
|
| 21 |
8M0007670 |
HOSE
|
1 |
|
| 22 |
8M0033311 |
FITTING (90 Degree)(Stainless Steel)
|
1 |
|
| 23 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 24 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 25 |
8M0007717 |
BRACKET
|
1 |
|
| 26 |
24836 |
CLIP
|
2 |
|
| 27 |
82104510 |
SCREW (M5 x 10)
|
2 |
|
| 28 |
8M0033227 |
FITTING 90 Degree (Stainless Steel)
|
1 |
|
| 29 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 3 |
8M0021784 |
TUBE
|
1 |
superseded
|
| 30 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 4 |
8M0021785 |
TUBE
|
1 |
superseded
|
| 5 |
8M0033225 |
FITTING Straight (Stainless Steel)
|
2 |
|
| 6 |
NSS |
NOT SOLD SEPARATE O-Ring
|
2 |
|
| 7 |
NSS |
NOT SOLD SEPARATE O-Ring
|
2 |
|
| 8 |
8M0033226 |
FITTING (11/16 - 16)Straight (Stainless Steel)
|
4 |
superseded
|
| 9 |
NSS |
NOT SOLD SEPARATE O-Ring
|
4 |
|
