| # | Part Number | Description | Qty | Status |
|---|
| - |
879312A03 |

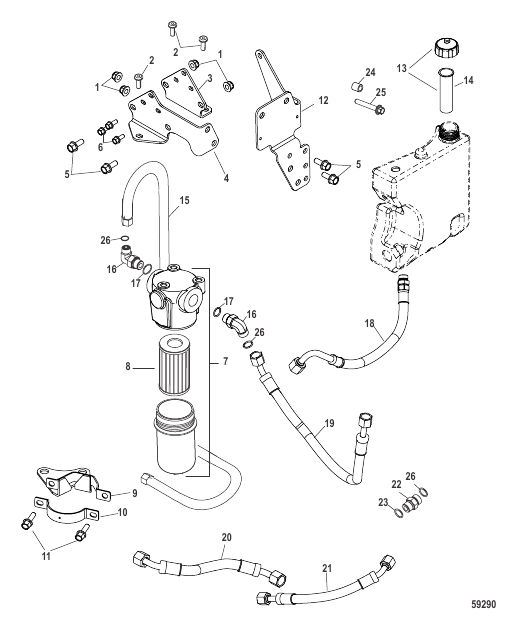

HYDRAULIC FILTER KIT High Pressure
|
1 |
disc.
|
| 1 |
826365 |
NUT (M8)
|
4 |
|
| 10 |
8M0038623 |
BRACKET Filter Assembly-Lower-Outer
|
1 |
|
| 11 |
81893414 |
SCREW (M8 x 14)
|
2 |
|
| 12 |
8M0037978 |
BRACKET
|
1 |
|
| 13 |
879150A49 |
CAP ASSEMBLY
|
1 |
disc.
|
| 14 |
8M0037964 |
STRAINER
|
1 |
|
| 15 |
8M0095228 |
HOSE ASSEMBLY Filter to Manifold
|
1 |
|
| 16 |
8M0038213 |
FITTING 90 degree
|
2 |
|
| 17 |
8M0047399 |
O-RING
|
1 |
|
| 18 |
8M0038026 |
HOSE ASSEMBLY Manifold to Reservoir
|
1 |
|
| 19 |
8M0095232 |
HOSE ASSEMBLY Pump to Filter
|
1 |
|
| 2 |
8M0038212 |
SCREW (.375 -16 X .50)
|
3 |
|
| 20 |
815113T04 |
HOSE
|
1 |
|
| 21 |
8M0095233 |
HOSE ASSEMBLY Pressure to Trim
|
1 |
|
| 22 |
8M0033230 |
FITTING (Stainless Steel)
|
1 |
|
| 23 |
8M0047399 |
O-RING
|
1 |
|
| 24 |
421581 |
BUSHING
|
1 |
|
| 25 |
88552540 |
SCREW (M6 x 40 MM) Stainless Steel
|
1 |
superseded
|
| 26 |
8M0047402 |
O-RING
|
3 |
|
| 3 |
8M0035842 |
BRACKET Filter Assembly-Inner
|
1 |
|
| 4 |
8M0053612 |
BRACKET Filter Assembly-Outer
|
1 |
|
| 5 |
81893420 |
SCREW (M8 x 20)
|
4 |
|
| 6 |
4006731 |
SCREW (M6 x 16)
|
3 |
|
| 7 |
897345T71 |
FILTER ASSEMBLY High Pressure Hydraulic
|
1 |
|
| 8 |
879150A68 |
FILTER
|
1 |
|
| 9 |
8M0050943 |
BRACKET
|
1 |
|
