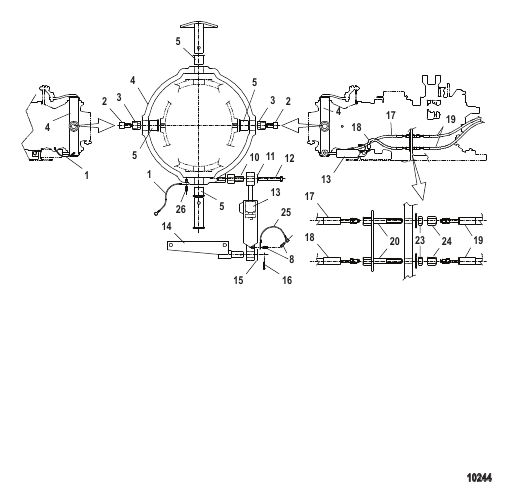

| # | Part Number | Description | Qty | Status |
|---|
| - |
886964 |
TRIM KIT
|
1 |
disc.
|
| 1 |
886996 |
BONDING WIRE
|
1 |
disc.
|
| 10 |
886967 |
CYLINDER PIVOT Pin
|
1 |
disc.
|
| 11 |
887257 |
WASHER (M12)
|
1 |
disc.
|
| 12 |
887307 |
BOLT (M10 x 70)
|
1 |
disc.
|
| 13 |
819365A2 |
CYLINDER ASSEMBLY
|
1 |
disc.
|
| 14 |
886968 |
CYLINDER MOUNT
|
1 |
disc.
|
| 15 |
887308 |
WASHER (M16)
|
1 |
disc.
|
| 16 |
886977 |
PIN Split (M3.2 x 32)
|
1 |
disc.
|
| 17 |
886971 |
HOSE Hydraulic
|
1 |
disc.
|
| 18 |
886970 |
HOSE Hydraulic
|
1 |
disc.
|
| 19 |
886974 |
HOSE ASSEMBLY Hydraulic - Inboard
|
2 |
disc.
|
| 2 |
887306 |
SCREW (M12 x 20)
|
2 |
disc.
|
| 20 |
886972 |
FITTING Bulkhead
|
2 |
disc.
|
| 23 |
887285 |
NUT (.375)
|
2 |
disc.
|
| 24 |
886973 |
FLARE DOUBLE UNIION (.188)
|
2 |
disc.
|
| 25 |
886999 |
CABLE ASSEMBLY Bonding (140 mm M5)
|
1 |
disc.
|
| 26 |
887310 |
SCREW (.188 x .500)
|
1 |
disc.
|
| 3 |
886966 |
PIN Pivot
|
2 |
disc.
|
| 4 |
886965 |
TRIM RING
|
1 |
disc.
|
| 5 |
887276 |
BUSHING Flanged
|
4 |
disc.
|
| 8 |
807754 |
SCREW (#10-24 x .38)
|
2 |
superseded
|
| NS |
859725T1 |
PUMP/MOTOR ASSEMBLY
|
1 |
disc.
|
| NS |
79091 |
FUSE 20 Ampere
|
1 |
superseded
|
| NS |
55098 |
J CLIP
|
1 |
superseded
|
| NS |
35950 |
WASHER (.273 x .437 x .031) Stainless Steel
|
2 |
|
| NS |
13855A1 |
NUT/SCREW KIT
|
2 |
disc.
|
| NS |
886994 |
HARNESS ASSEMBLY Trim
|
1 |
disc.
|
| NS |
882751A1 |
RELAY ASSEMBLY
|
2 |
superseded
|
