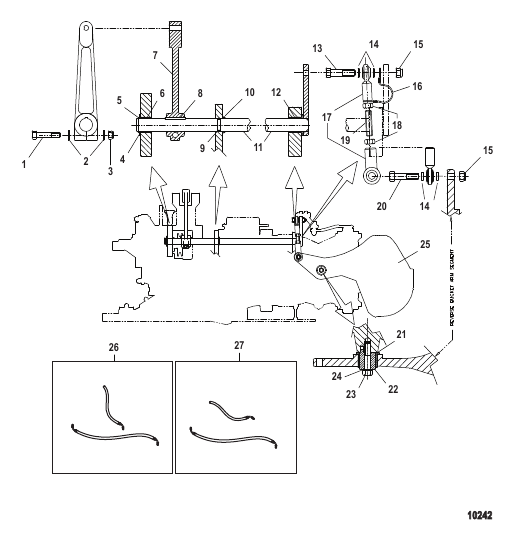

Reverse Detail
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 887260 |
БОЛТ (M10 x крупный по 60) BOLT (M10 x Coarse @ 60) |
1 | discontinued |
| 10 | 887255 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 11 | 886900 |
ВАЛ И РУМПЕЛЬ Задняя SHAFT AND TILLER Reverse |
1 | discontinued |
| 12 | 887276 |
ВТУЛКА Фланцев. BUSHING Flanged |
1 | discontinued |
| 13 | 886906 |
БОЛТ (0.500 x 2.00) BOLT (.500 x 2.00) |
1 | discontinued |
| 14 | 886897 |
НАКОНЕЧНИКИ ШТОКА ПРОСТАВОК SPACERS ROD ENDS |
4 | discontinued |
| 15 | 886908 |
КОНТРГАЙКА (0.50) LOCKNUT (.50) |
2 | discontinued |
| 16 | 886998 |
СОЕДИНИТЕЛЬНЫЙ ПРОВОД BONDING WIRE |
1 | discontinued |
| 17 | 887253 |
КОНЦЕВАЯ ЧАСТЬ ТЯГИ ROD END |
2 | discontinued |
| 18 | 886909 |
ГАЙКА (0.50) NUT (.50) |
2 | discontinued |
| 19 | 887264 |
РЕЗЬБОВОЙ ШТОК (0.500) THREADED ROD (.500) |
1 | discontinued |
| 2 | 896379 |
ШАЙБА (M10) WASHER (M10) |
6 | discontinued |
| 20 | 886907 |
БОЛТ (0.500 x 2.250) BOLT (.500 x 2.250) |
1 | discontinued |
| 21 | 886903 |
ВТУЛКА Реверсивная задвижка BUSHING Reverse Gate |
2 | discontinued |
| 22 | 886895 |
ШТИФТ Реверсивная задвижка PIN Reverse Gate |
discontinued | |
| 23 | 887256 |
БОЛТ (M12 x крупный по 70) BOLT (M12 x Coarse @ 70) |
2 | discontinued |
| 24 | 887257 |
ШАЙБА (M12) WASHER (M12) |
2 | discontinued |
| 25 | 886899 |
ЗАДВИЖКА Задняя GATE Reverse |
1 | discontinued |
| 26 | 80622136 |
РУКАВ 1.7 HOSE 1.7 |
1 | discontinued |
| 26 | 80622216 |
РУКАВ 1.7 HOSE 1.7 |
1 | |
| 27 | 866687 |
РУКАВ Давление 2.8, 4.2 HOSE Pressure 2.8, 4.2 |
1 | superseded |
| 27 | 865390068 |
РУКАВ Возврат 2.8, 4.2 HOSE Return 2.8, 4.2 |
1 | |
| 3 | 887223 |
КОНТРГАЙКА (M10) LOCKNUT (M10) |
1 | discontinued |
| 4 | 886894 |
ШАЙБА WASHER |
1 | discontinued |
| 5 | 886893 |
СТОПОРНОЕ ПРУЖИННОЕ КОЛЬЦО CIRCLIP |
1 | discontinued |
| 6 | 886892 |
ВТУЛКА Бронза BUSHING Bronze |
1 | discontinued |
| 7 | 886901 |
ВХОДНОЙ РУМПЕЛЬ Задняя INPUT TILLER Reverse |
1 | discontinued |
| 8 | 886902 |
КЛЮЧ KEY |
1 | discontinued |
| 9 | 886891 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Уплотнитель вала рулевого механизма O-RING Steering Shaft Seal |
1 | discontinued |
