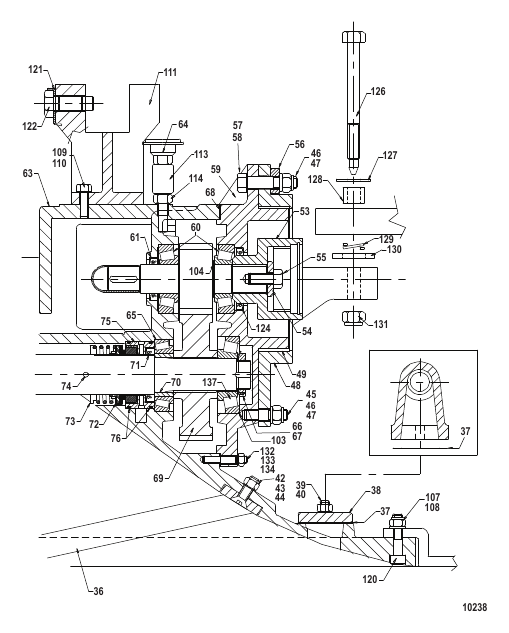

Drive Reduction (Cross Section C)

Parts (65)

#Part NumberDescriptionQtyStatus
103 887204 SHIM Driven Gear 1 disc.
104 887203 SHIM Pinion Gear 1 disc.
107 887230 WASHER (M10) 28 disc.
108 887223 LOCKNUT (M10) 28 disc.
109 887258 SET SCREW (M10 Coarse) 30 Per Package 4 disc.
110 896379 WASHER (M10) 6 disc.
111 886898 MOUNT Power Cylinder 1 disc.
113 887184 SOCKET (0.375) 1 disc.
114 887183 HEX NIPPLE (0.375) 1 disc.
120 887234 SCREW (M10 Coarse) 14 disc.
121 42253 BOLT 2 superseded
122 42254 WASHER 2
124 886803 SEAL (65 x 50 x 8) 1 disc.
126 97934 SCREW (.500-20 x 5.370) Special 2 superseded
127 35777 WASHER (.5156 x 1.375 x .125) Aluminum 2
128 99299 SPACER (.520 x .870 x .630) 2
129 33734 LOCKWASHER (.500) 2
130 32834 WASHER (.9375 x 1.750 x .172) 2
131 863332 NUT (.500-20) Aluminum 2
132 887207 STUD (M8) 15 disc.
133 887208 WASHER (M8) 17 disc.
134 887297 LOCKNUT (M8) 15 disc.
137 887205 BEARING 1 disc.
36 886854 GRATE Intake 1 disc.
37 887222 GASKET 1 disc.
38 887221 BLANKING PLATE Water Take Off 1 disc.
39 896379001 STUD (M10) 2 disc.
40 896379 WASHER (M10) 2 disc.
42 887229 SCREW (M10 Coarse) 40 Per Package 2 disc.
43 887230 WASHER (M10) 2 disc.
44 896379002 NUT (M10) 2 disc.
44 887223 LOCKNUT (M10) 2 disc.
45 886847 STUD (M12) 1 disc.
46 886846 WASHER (.500 x 1.00 x .125) 2 disc.
47 886843 LOCKNUT (M12) 2 disc.
48 886828 PLATE Engine Mount 1 disc.
49 886832 BEARING Engine Mount 1 disc.
53 887198 GEAR COUPLING 1 disc.
54 887199 WASHER Gear Coupling 1 disc.
55 887212 SET SCREW (M12 x 25) 1 disc.
56 887202 WASHER PLATE 1 disc.
57 887210 BOLT (M12 x 50) 1 disc.
58 887257 WASHER (M12) 1 disc.
59 886825 END COVER 1 disc.
60 887181 BEARING 2 disc.
61 886804 SEAL (46 x 30 x 7) 1 disc.
63 886852 BODY Intake 1 disc.
64 887182 BREATHER 1 disc.
65 887180 BEARING 1 disc.
66 886835 NUT (M30 x 1.50) 1 disc.
67 886836 LOCKING WASHER 1 disc.
68 886831 GASKET 1 disc.
69 887489 GEAR SET (27/36) (1.33:1 Ratio) 1 disc.
69 887484 GEAR SET (22/41) (1.86:1 Ratio) 1 disc.
69 887485 GEAR SET (23/40) (1.73:1 Ratio) 1 disc.
69 887486 GEAR SET (24/39) (1.62:1 Ratio) 1 disc.
69 887487 GEAR SET (25/38) (1.52:1 Ratio) 1 disc.
69 887488 GEAR SET (26/37) (1.42:1 Ratio) 1 disc.
70 886833 SLEEVE Bearing 1 disc.
71 886802 SEAL (2.250 x 1.625 x .375) 1 disc.
72 886839 SEAL 1 disc.
73 886806 RETAINER Spring 1 disc.
74 887206 PIN Split (M4 x 50) 1 disc.
75 886829 CARRIER Seal 1 disc.
76 886837 O-RING Seal Carrier 2 disc.
