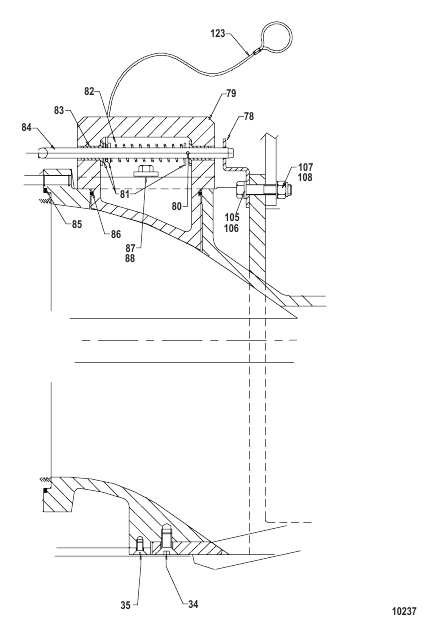

Inspection Cover and Trim Plate (Cross Section B)
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 105 | 887235 |
БОЛТ (M10 x 50) BOLT (M10 x 50) |
14 | discontinued |
| 106 | 896379 |
ШАЙБА (M10) WASHER (M10) |
14 | discontinued |
| 107 | 887230 |
ШАЙБА (M10) WASHER (M10) |
28 | discontinued |
| 108 | 887223 |
КОНТРГАЙКА (M10) LOCKNUT (M10) |
28 | discontinued |
| 123 | 886870 |
ТРОС TETHER |
1 | discontinued |
| 34 | 887228 |
ВИНТ (M10 x 20) SCREW (M10 x 20) |
3 | discontinued |
| 35 | 887227 |
ВИНТ (Крупный M6) по 15 в упаковке SCREW (M6 Coarse) 15 Per Package |
5 | discontinued |
| 78 | 887242 |
УДАРНАЯ ПЛАСТИНА STRIKER PLATE |
1 | discontinued |
| 79 | 887240 |
СМОТРОВАЯ КРЫШКА INSPECTION COVER |
1 | discontinued |
| 80 | 887248 |
ШТИФТ Разъем (M3 x 25) PIN Split (M3 x 25) |
1 | discontinued |
| 81 | 896379 |
ШАЙБА (M10) WASHER (M10) |
3 | discontinued |
| 82 | 887243 |
ПРУЖИНА SPRING |
1 | discontinued |
| 83 | 887245 |
ВТУЛКА Фланцев. BUSHING Flanged |
2 | discontinued |
| 84 | 887241 |
СТОПОРНЫЙ БОЛТ LOCK BOLT |
1 | discontinued |
| 85 | 886879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Уплотнитель фланца O-RING Flange Seal |
1 | discontinued |
| 86 | 887239 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Смотровая крышка O-RING Inspection Cover |
1 | discontinued |
| 87 | 887244 |
ШТИФТ Фланцев. PIN Flanged |
2 | discontinued |
| 88 | 887246 |
БОЛТ (M10 x крупный по 35) BOLT (M10 x Coarse @ 35) |
2 | discontinued |
