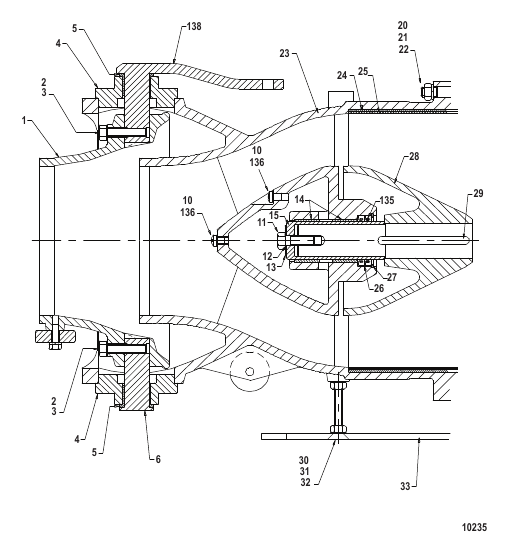

Nozzle Assembly (Cross Section A)
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 886927 |
ШТУЦЕР Рулевой механизм NOZZLE Steering |
1 | discontinued |
| 10 | 79953Q2 |
КОМПЛЕКТ ВИНТОВ (0.375-16 x 0.250), слив SCREW KIT (.375-16 x .250) Drain |
2 | superseded |
| 11 | 887216 |
БОЛТ (M10 x 30) BOLT (M10 x 30) |
1 | discontinued |
| 12 | 887201 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Втулочный болт вала O-RING Shaft Sleeve Bolt |
1 | discontinued |
| 13 | 887217 |
ШАЙБА (M14) WASHER (M14) |
1 | discontinued |
| 135 | 886876 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Пружина манжетного уплотнителя O-RING Lip Seal Spring |
1 | discontinued |
| 136 | 191832 |
ШАЙБА WASHER |
2 | superseded |
| 138 | 886929 |
ШТИФТ Нижний шарнир PIN Lower Pivot |
1 | discontinued |
| 14 | 886877 |
ПОДШИПНИК BEARING |
2 | discontinued |
| 15 | 886830 |
ВТУЛКА ВАЛА SHAFT SLEEVE |
1 | discontinued |
| 2 | 887282 |
УСТАНОВОЧНЫЙ ВИНТ (Крупный M10), по 40 в упаковке SET SCREW (M10 Coarse) 40 Per Package |
2 | discontinued |
| 20 | 887250 |
ШПИЛЬКА (M10) STUD (M10) |
6 | discontinued |
| 21 | 896379 |
ШАЙБА (M10) WASHER (M10) |
6 | discontinued |
| 22 | 887223 |
КОНТРГАЙКА (M10) LOCKNUT (M10) |
6 | discontinued |
| 23 | 886883 |
ФОРСУНКА DISCHARGE NOZZLE |
1 | discontinued |
| 24 | 886880 |
ОТДЕЛКА ПЛАСТМАССОВАЯ LINER PLASTIC |
1 | discontinued |
| 25 | 886881 |
ОТДЕЛКА ИЗ НЕРЖАВЕЮЩЕЙ СТАЛИ LINER STAINLESS STEEL |
1 | discontinued |
| 26 | 886875 |
УПЛОТНЕНИЕ SEAL |
2 | discontinued |
| 27 | 886878 |
СТОПОРНОЕ ПРУЖИННОЕ КОЛЬЦО CIRCLIP |
1 | discontinued |
| 28 | 887494 |
КРЫЛЬЧАТКА Стальной IMPELLER Steel |
1 | discontinued |
| 29 | 887249 |
КЛЮЧ KEY |
1 | discontinued |
| 3 | 887281 |
ШАЙБА (M10) WASHER (M10) |
6 | discontinued |
| 30 | 887224 |
ВИНТ (M10 x 70) SCREW (M10 x 70) |
2 | discontinued |
| 31 | 887281 |
ШАЙБА (M10) WASHER (M10) |
2 | discontinued |
| 32 | 887257 |
ШАЙБА (M12) WASHER (M12) |
4 | discontinued |
| 33 | 886853 |
ПЛАСТИНА ДИФФЕРЕНТА TRIM PLATE |
1 | discontinued |
| 4 | 886931 |
ВТУЛКА Шарнир рулевого механизма BUSHING Steering Pivot |
2 | discontinued |
| 5 | 887276 |
ВТУЛКА Фланцев. BUSHING Flanged |
3 | discontinued |
| 6 | 887275 |
ШТИФТ Румпель – верхний шарнир PIN Tiller - Upper Pivot |
1 | discontinued |
