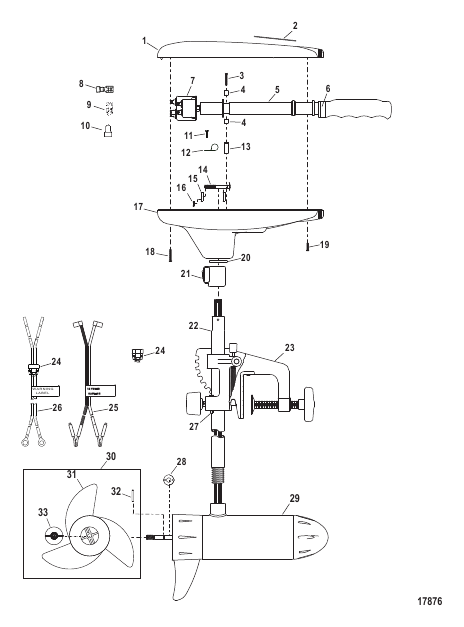

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
MAR053247 |
COVER Top
|
1 |
superseded
|
| 10 |
MBF02901 |
CONNECTOR Pigtail (#18-8) [9B272976] THRU [9B484155]
|
4 |
superseded
|
| 11 |
MRT13303 |
SCREW (#10-32 x .500) [9B484156] & Up
|
1 |
superseded
|
| 12 |
MKP03604 |
P CLAMP (#10 x .375) [9B484156] & Up
|
1 |
superseded
|
| 13 |
MAT15504 |
BRACKET Wire [9B272976] THRU [9B484155]
|
1 |
superseded
|
| 14 |
MTT13402 |
BOLT (.250-20 x 1.75)
|
1 |
superseded
|
| 15 |
MTT17108 |
WASHER Curved
|
2 |
superseded
|
| 16 |
MXT09802 |
LOCKNUT (.250-20) Stainless Steel
|
1 |
superseded
|
| 17 |
MAR004247 |
COVER Bottom
|
1 |
superseded
|
| 18 |
MLF14104 |
SCREW (#8 x 1.00)
|
1 |
superseded
|
| 19 |
MFR13501 |
SCREW (#8 x .500)
|
2 |
superseded
|
| 2 |
MPT19007 |
DECAL Top Cover MotorGuide Thruster 36 12 Volt
|
1 |
superseded
|
| 20 |
MAT07901 |
SEAL Column
|
1 |
superseded
|
| 21 |
MTM15804 |
COLLAR ASSEMBLY Depth Adjust - Black - 5 Lobe Style
|
1 |
superseded
|
| 22 |
MAL04901 |
COLUMN (30.00 Inches) Aluminum
|
1 |
superseded
|
| 22 |
MTT04908 |
COLUMN (30.00 Inches) Stainless Steel
|
1 |
disc.
|
| 22 |
MAL04903 |
COLUMN (36.00 Inches) Aluminum
|
1 |
superseded
|
| 22 |
MFR04914 |
COLUMN (36.00 Inches) Stainless Steel
|
1 |
superseded
|
| 23 |
MCK300042 |
MOUNT ASSEMBLY Complete Bar Knob Model 03 - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 23 |
MCK30007S |
MOUNT ASSEMBLY Complete Soft Touch Model 03 - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
disc.
|
| 24 |
MGR01901 |
BUSHING Battery Cable
|
1 |
superseded
|
| 25 |
MXT328062 |
CABLE ASSEMBLY Battery [9B272976] THRU [9B484155]
|
1 |
superseded
|
| 26 |
MTT32809T |
CABLE ASSEMBLY Battery Marked MTT328092 - With Two Terminals MBR16106 [9B484156] & Up
|
1 |
disc.
|
| 27 |
MCK10004 |
FRICTION STRIP Plastic
|
1 |
superseded
|
| 28 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 29 |
MPF397042 |
LOWER UNIT ASSEMBLY Complete (38# - 5/2 Speed) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 3 |
MAR13302 |
SCREW (#8 x 1.500)
|
2 |
superseded
|
| 30 |
MAF174555 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design I - With Nylon Prop Nut
|
1 |
superseded
|
| 30 |
MAF174755 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design II - With Brass Insert Prop Nut
|
1 |
superseded
|
| 31 |
MAF12415 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub
|
1 |
superseded
|
| 32 |
MBR10202 |
PIN Prop Drive (.156 x 1.00)
|
1 |
superseded
|
| 33 |
MAR09901 |
PROP NUT - Design I - All Nylon
|
1 |
superseded
|
| 33 |
MAR09902 |
PROP NUT - Design II - Nylon With Brass Insert
|
1 |
superseded
|
| 4 |
MAR03603 |
CLAMP
|
2 |
superseded
|
| 5 |
MBT372122 |
HANDLE ASSEMBLY - Design I - Switch With Lead Wires
|
1 |
superseded
|
| 5 |
MBT37207T |
HANDLE ASSEMBLY - Design II - Switch Without Lead Wires
|
1 |
disc.
|
| 6 |
MBT05908 |
DECAL Indicator
|
1 |
superseded
|
| 7 |
MKT15003 |
SWITCH ASSEMBLY Rotary - Design I - With Lead Wires
|
1 |
superseded
|
| 7 |
MKT15002 |
SWITCH ASSEMBLY Rotary - Design II - Without Lead Wires
|
1 |
superseded
|
| 8 |
MBR16106 |
TERMINAL Quick Connect [9B484156] & Up
|
4 |
superseded
|
| 9 |
MBR16102 |
TERMINAL Flag (Female #18-12) [9B272976] THRU [9B484155]
|
2 |
superseded
|
