| # | Part Number | Description | Qty | Status |
|---|
| - |
M0099103 |

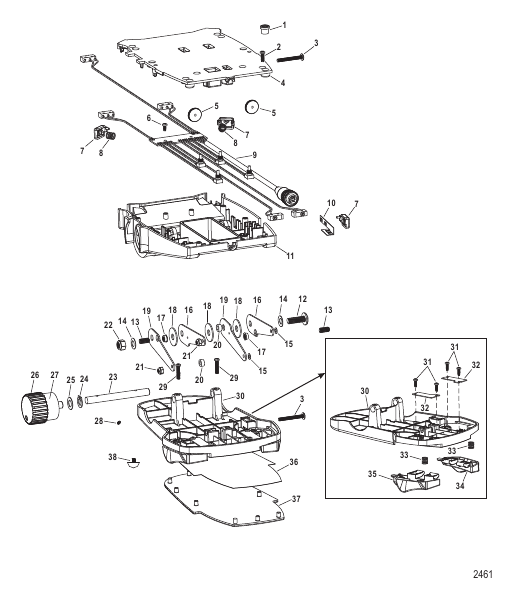

FOOT PEDAL ASSEMBLY Complete
|
1 |
superseded
|
| 1 |
M0001902 |
PEG Foot
|
4 |
superseded
|
| 10 |
M00988 |
SPRING
|
1 |
superseded
|
| 11 |
M0098902 |
BASE Upper Foot Pedal
|
1 |
superseded
|
| 12 |
M0054502 |
SCREW
|
1 |
superseded
|
| 13 |
M00974 |
PLUNGER Ball
|
2 |
superseded
|
| 14 |
M00071 |
WASHER Bellville
|
2 |
superseded
|
| 15 |
MRK17108 |
WASHER Nylon
|
2 |
superseded
|
| 16 |
M00978 |
LINKAGE Ball Plunger
|
2 |
superseded
|
| 17 |
M00984 |
PUSH NUT (.250-20)
|
2 |
superseded
|
| 18 |
M00544 |
WASHER Friction
|
3 |
superseded
|
| 19 |
M00979 |
LINKAGE Detent Hole
|
2 |
superseded
|
| 2 |
M0043707 |
SCREW (#8 x .500)
|
8 |
superseded
|
| 20 |
M0061516 |
WASHER Nylon
|
2 |
superseded
|
| 21 |
M0054601 |
NUT (#8-32)
|
2 |
superseded
|
| 22 |
M0054602 |
NUT (.313-18)
|
1 |
superseded
|
| 23 |
M00983 |
SHAFT Pivot Rod
|
1 |
superseded
|
| 24 |
MLP04601 |
RING Retaining
|
1 |
superseded
|
| 25 |
MAK17102 |
WASHER Nylon
|
1 |
superseded
|
| 26 |
M00976A1 |
KNOB ASSEMBLY Speed
|
1 |
superseded
|
| 27 |
M0002201 |
DECAL Speed Wheel
|
1 |
superseded
|
| 28 |
M0039602 |
SET SCREW (#4-40 x .250)
|
1 |
superseded
|
| 29 |
M0097501 |
SCREW (#8-32)
|
2 |
superseded
|
| 3 |
M0054501 |
SCREW (#8-32 x 1.50)
|
2 |
superseded
|
| 30 |
M00967 |
PEDAL Foot Pivot
|
1 |
superseded
|
| 31 |
M0100002 |
SCREW (#6)
|
4 |
superseded
|
| 32 |
MLP12303 |
PLATE Retainer
|
2 |
superseded
|
| 33 |
M01229 |
SPRING
|
4 |
superseded
|
| 34 |
M00966 |
SWITCH ASSEMBLY Foot Pedal Right
|
1 |
superseded
|
| 35 |
M00965 |
SWITCH ASSEMBLY Foot Pedal Left
|
1 |
superseded
|
| 36 |
M01232 |
ADHESIVE PAD Foot Pedal
|
1 |
superseded
|
| 37 |
M00964 |
TREAD Foot Pedal
|
1 |
superseded
|
| 38 |
MPM02301 |
BUMPER (#8-32)
|
4 |
superseded
|
| 4 |
M00980 |
BASE Lower Foot Pedal
|
1 |
superseded
|
| 5 |
M00977 |
KNOB Stow And Center
|
2 |
disc.
|
| 6 |
M0100005 |
SCREW (#6 x .313)
|
2 |
superseded
|
| 7 |
M00986 |
BASE
|
3 |
superseded
|
| 8 |
M01229 |
SPRING
|
2 |
superseded
|
| 9 |
M0092403 |
HARNESS/BOARD ASSEMBLY
|
1 |
superseded
|
