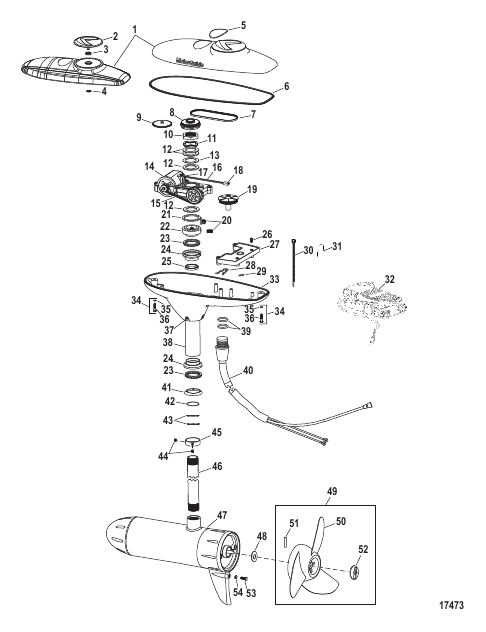

| # | Part Number | Description | Qty | Status |
|---|
| - |
MST91642A |
MOUNT ASSEMBLY Complete Model 16 Lil' Gator - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| - |
MST921BF |
MOUNT ASSEMBLY Complete Model 21 Black - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| - |
MST9360FW |
MOUNT ASSEMBLY Black - Complete Model Gator Flex 360 - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| - |
8M4000308 |
MOUNT ASSEMBLY Black - Complete Model Gator Flex II 360 - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 1 |
MEX05301 |
COVER ASSEMBLY Top - Design I - Three Screw Mounted - NOTE: Part No Longer Available - Order Kit M898106A1
|
1 |
disc.
|
| 1 |
M898106A1 |
COVER KIT Top - NOTE: Includes Top And Bottom Cover Plus Mounting Hardware - Five Screw Mounted
|
1 |
disc.
|
| 1 |
MEX05304 |
COVER ASSEMBLY Top - Design II - Five Screw Mounted
|
1 |
superseded
|
| 10 |
M00947 |
NUT Column - Design I - Without Nylon Patch
|
1 |
superseded
|
| 10 |
M0094702 |
NUT Column - Design II - With Nylon Patch
|
1 |
superseded
|
| 11 |
M00936 |
WAVE WASHER
|
1 |
superseded
|
| 12 |
M00946 |
WASHER Flat
|
4 |
superseded
|
| 13 |
M00952 |
WASHER Friction
|
1 |
superseded
|
| 14 |
M0093402 |
TRANSMISSION ASSEMBLY (12/24 Volt)
|
1 |
superseded
|
| 15 |
M00136 |
BELT Transmission
|
1 |
superseded
|
| 16 |
M01128 |
CABLE ASSEMBLY
|
1 |
superseded
|
| 17 |
M00588 |
TERMINAL
|
3 |
superseded
|
| 18 |
M0051903 |
CONNECTOR (3 Pin)
|
1 |
superseded
|
| 19 |
M0094202 |
GEAR ASSEMBLY Indicator
|
1 |
superseded
|
| 2 |
M0094010 |
INDICATOR - Design I - Ruby Red
|
1 |
superseded
|
| 2 |
M0094004 |
INDICATOR - Design II - Ruby Red With Silver Arrow
|
1 |
superseded
|
| 20 |
M00959 |
SET SCREW (.250-28 x .500) - Design I - Used With Bottom Cover MEX00401
|
2 |
disc.
|
| 20 |
MAF14202 |
SET SCREW (.250-28 x .750) - Design II - Used With Bottom Cover MEX004039 And MEX00405
|
2 |
superseded
|
| 21 |
M00945 |
WASHER Stop - Design I - Used With Bottom Cover MEX00401
|
1 |
superseded
|
| 21 |
M0094502 |
WASHER Stop - Design II - Used With Bottom Cover MEX004039 And MEX00405
|
1 |
superseded
|
| 22 |
M00944 |
CLAMP Upper Column
|
1 |
superseded
|
| 23 |
MFM00501 |
BEARING Ball (1.546 Outside Diameter) Open Style - 15 Balls - Design I - Upper And Lower Column
|
2 |
superseded
|
| 23 |
MFM00501 |
BEARING Ball (1.546 Outside Diameter) Open Style - 15 Balls - Design II - Upper Column Only
|
1 |
superseded
|
| 23 |
MFM00502 |
BEARING Ball (1.477 Outside Diameter) Sealed Style - 41 Balls - Design II - Lower Column Only
|
1 |
superseded
|
| 24 |
MFM00701 |
RETAINER CUP Bearing (1.546/1.556 Inside Diameter) - Design I - Upper And Lower Column
|
2 |
superseded
|
| 24 |
MFM00701 |
RETAINER CUP Bearing (1.546/1.556 Inside Diameter) - Design II - Upper Column Only
|
1 |
superseded
|
| 24 |
MFM00702 |
RETAINER CUP Bearing (1.482/1.487 Inside Diameter) - Design II - Lower Column Only
|
1 |
superseded
|
| 25 |
M00951 |
SEAL Inner Column
|
1 |
superseded
|
| 26 |
M0100008 |
SCREW (#6 x .750)
|
4 |
superseded
|
| 27 |
MES15702 |
MODULE Steering - Design I - Marked On Back MES15702
|
1 |
superseded
|
| 27 |
MES15703 |
MODULE Steering - Design II - Marked On Back MES15703
|
1 |
disc.
|
| 28 |
M00954 |
CLIP Retainer
|
1 |
superseded
|
| 29 |
M01261 |
VENT All Weather
|
1 |
superseded
|
| 3 |
M0035902 |
SEAL
|
1 |
superseded
|
| 30 |
MR22001 |
TIE STRAP (4.00 Inches)
|
3 |
superseded
|
| 30 |
MAF03001 |
TIE STRAP (.16 x 7/8.00 Inches)
|
1 |
superseded
|
| 31 |
MBF02901 |
CONNECTOR Pigtail (#18-8)
|
2 |
superseded
|
| 31 |
MBF02902 |
CONNECTOR Pigtail (#22-14)
|
3 |
superseded
|
| 32 |
M0099101 |
FOOT PEDAL ASSEMBLY Complete - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 33 |
MEX00401 |
COVER Bottom - Design I - Used With Ref No 20 And 21 - Three Screw Mounted - NOTE: Part No Longer Available - Order Kit M898106A1
|
1 |
superseded
|
| 33 |
MEX004039 |
COVER KIT Bottom Includes Set Screws And Stop Washer - Design II - Used With Ref 20 And 21 - Three Screw Mounted - NOTE: Part No Longer Available - Order Kit M898106A1
|
1 |
disc.
|
| 33 |
MEX00405 |
COVER Bottom - Design III - Five Screw Mounted
|
1 |
superseded
|
| 34 |
M00603 |
SCREW ASSEMBLY - NOTE: Used With Three Screw Mounted Covers
|
3 |
superseded
|
| 34 |
M00603 |
SCREW ASSEMBLY - NOTE: Used With Five Screw Mounted Covers
|
5 |
superseded
|
| 35 |
M0044501 |
O-RING
|
3/5 |
superseded
|
| 36 |
M0043801 |
SCREW (#7-10 x .750)
|
3/5 |
disc.
|
| 37 |
MLF11104 |
RIVET (.125 x .375)
|
3 |
superseded
|
| 38 |
MAF16506 |
TUBE Outer (20.00 Inches)
|
1 |
superseded
|
| 39 |
M00955 |
O-RING
|
2 |
superseded
|
| 4 |
M00943 |
CLIP
|
1 |
superseded
|
| 40 |
M0092802 |
CABLE ASSEMBLY Control
|
1 |
superseded
|
| 41 |
MAF00603 |
RACE Bearing - Design I - Used With Open Style Bearing
|
1 |
superseded
|
| 42 |
MAF06301 |
O-RING - Design I - Used With Open Style Bearing
|
1 |
superseded
|
| 43 |
MAF17101 |
WAVE WASHER - Design I - Used With Open Style Bearing
|
2 |
superseded
|
| 44 |
MAF14201B |
SET SCREW (.250-20 x .312) Hex Socket Head
|
2 |
superseded
|
| 45 |
MXF00602 |
COLLAR Bearing - Design I - Used With Open Style Ball Bearing - NOTE: Part No Longer Available - Order Kit MSS00602S
|
1 |
disc.
|
| 45 |
MSS00602S |
CONE AND BEARING KIT - NOTE: Includes Design II Parts - MAF14201B And MFM00502 And MFM00702 And MSS00602
|
1 |
disc.
|
| 45 |
MSS00602 |
CONE Bearing - Design II - Used With Sealed Style Ball Bearing
|
1 |
superseded
|
| 46 |
MAF04910 |
COLUMN (50.00 Inches) Stainless Steel
|
1 |
superseded
|
| 47 |
MCC397022 |
LOWER UNIT ASSEMBLY Complete (54# - Variable) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 48 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 49 |
MAF174555 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design I - With Nylon Prop Nut
|
1 |
superseded
|
| 49 |
MAF174755 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design II - With Brass Insert Prop Nut
|
1 |
superseded
|
| 5 |
MAF19038 |
DECAL Top Cover MotorGuide Digital Steering 12 Volt 54 Lbs Thrust
|
1 |
superseded
|
| 50 |
MAF12415 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub
|
1 |
superseded
|
| 51 |
MBR10202 |
PIN Prop Drive (.156 x 1.00)
|
1 |
superseded
|
| 52 |
MAR09901 |
PROP NUT - Design I - All Nylon
|
1 |
superseded
|
| 52 |
MAR09902 |
PROP NUT - Design II - Nylon With Brass Insert
|
1 |
superseded
|
| 53 |
MDK13301 |
SCREW (.250-20 x .750)
|
1 |
superseded
|
| 54 |
MAR00202 |
ANODE Zinc - Design I
|
1 |
superseded
|
| 54 |
M879341T |
ANODE Aluminum - Design II
|
1 |
disc.
|
| 6 |
M00937 |
SEAL Housing Cover - Design I - Used With Three Screw Style Covers
|
1 |
superseded
|
| 6 |
M00948 |
SEAL Housing Cover - Design II - Used With Five Screw Style Covers
|
1 |
superseded
|
| 7 |
M00941 |
BELT Drive Indicator Arrow
|
1 |
superseded
|
| 8 |
M00939 |
GEAR Column Drive
|
1 |
superseded
|
| 9 |
M00949 |
GEAR Pot Positioning
|
1 |
superseded
|
