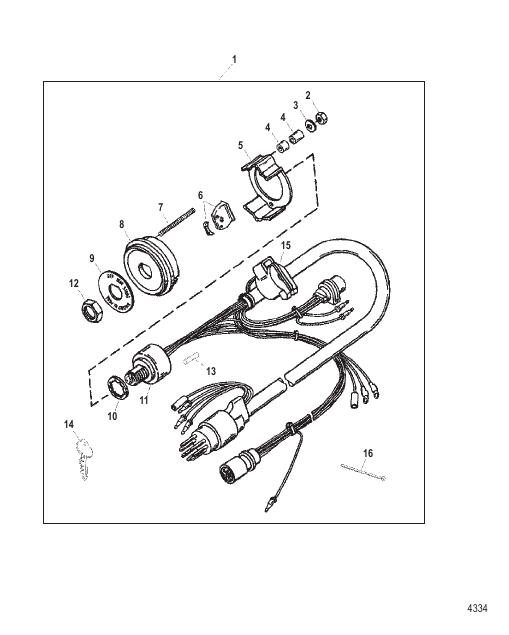

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
816626A2 |
HARNESS ASSEMBLY Key Switch (2.00 Feet)
|
1 |
|
| 1 |
816626A15 |
HARNESS ASSEMBLY Key Switch (15.00 Feet)
|
1 |
|
| 1 |
816626A20 |
HARNESS ASSEMBLY Key Switch (20.00 Feet)
|
1 |
|
| 1 |
816626A25 |
HARNESS ASSEMBLY Key Switch (25.00 Feet)
|
1 |
|
| 10 |
89989 |
LOCKWASHER Internal (.818)
|
1 |
|
| 11 |
88107A5 |
SWITCH KIT Key With Pre Soldered Wires
|
1 |
|
| 12 |
879755 |
NUT Special - Black Nylon
|
1 |
|
| 13 |
830865 |
CONNECTOR Wires - Service Repair
|
AR |
superseded
|
| 14 |
894911 |
KEY Ignition (1A)
|
AR |
|
| 14 |
894912 |
KEY Ignition (1B)
|
AR |
|
| 14 |
894913 |
KEY Ignition (1C)
|
AR |
|
| 14 |
894914 |
KEY Ignition (1D)
|
AR |
|
| 14 |
894915 |
KEY Ignition (1E)
|
AR |
|
| 14 |
894916 |
KEY Ignition (1F)
|
AR |
|
| 14 |
894917 |
KEY Ignition (2A)
|
AR |
|
| 14 |
894918 |
KEY Ignition (2B)
|
AR |
|
| 14 |
894919 |
KEY Ignition (2C)
|
AR |
|
| 14 |
8949110 |
KEY Ignition (2D)
|
AR |
|
| 14 |
8949111 |
KEY Ignition (2E)
|
AR |
|
| 14 |
8949112 |
KEY Ignition (2F)
|
AR |
|
| 15 |
816492A1 |
ALARM ASSEMBLY Audio Warning
|
1 |
superseded
|
| 16 |
56762 |
TIE STRAP (4.00 Inches)
|
AR |
|
| 16 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 2 |
68219 |
NUT (#10-32) Stainless Steel
|
2 |
|
| 3 |
24676 |
WASHER (.200 x .440 x .032)
|
2 |
|
| 4 |
812711 |
SPACER (.250)
|
2 |
|
| 4 |
8127111 |
SPACER (.375)
|
2 |
|
| 5 |
76424 |
BRACKET Switch Mounting
|
1 |
|
| 6 |
90468A1 |
COVER ASSEMBLY Key
|
2 |
|
| 7 |
55422 |
STUD (#10-32 x 2.00)
|
2 |
|
| 8 |
816479A3 |
PLATE KIT Switch Mounting
|
1 |
|
| 9 |
90311 |
INSERT Switch Plate (Off-Run-Start)(Push to Choke) Switch Plate
|
1 |
|
